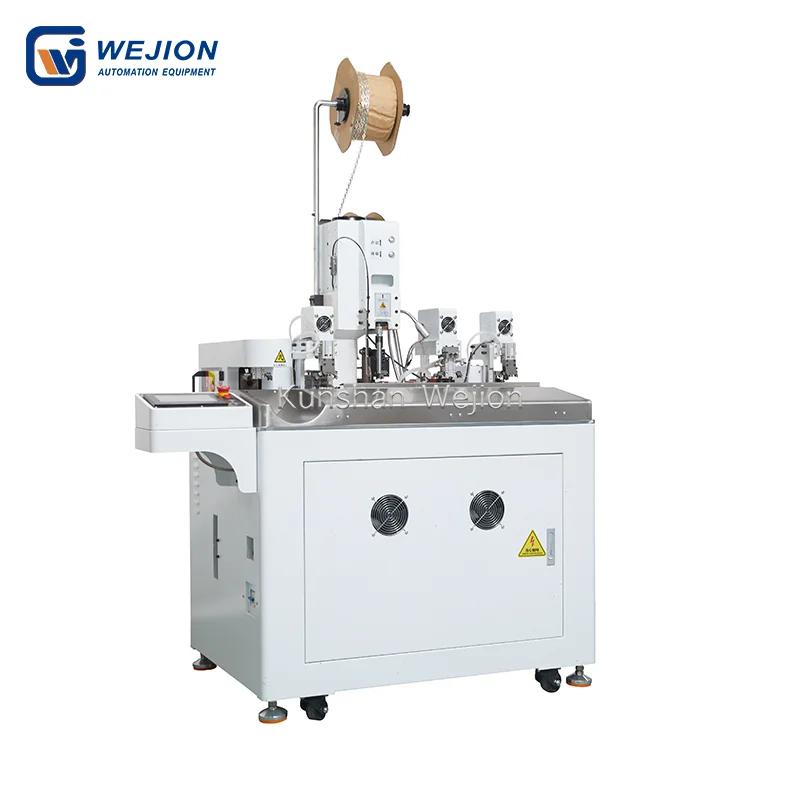

TA-SHI01 Single-head terminal crimping and heat shrink tubing machine
TA-SHI01 Single-head terminal crimping and heat shrink tubing machine
TA-SHI01 Single-head terminal crimping and heat shrink tubing machine
TA-SHI01 Single-head terminal crimping and heat shrink tubing machine
TA-SHI01 Single-head terminal crimping and heat shrink tubing machine
TA-SHI01 Single-head terminal crimping and heat shrink tubing machine
Product Introduction:

Description

Function

  1. Broad Compatibility with Wires and TerminalsThe TA-SHI01 is suitable for AWG10 – 20# cables, capable of handling both thick power transmission cables and thin signal transmission cables. It is compatible with various terminal types, including common horizontal and straight styles, meeting diverse electrical connection requirements.

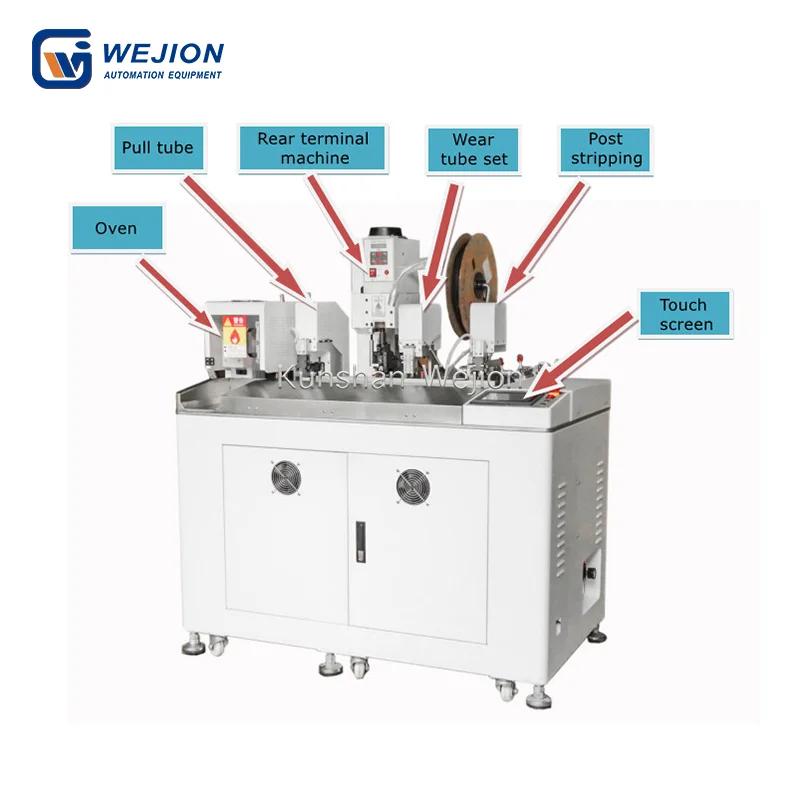

  1. Integrated Multifunctional ProcessingThis machine integrates cutting, stripping, single-head terminal crimping, and heat shrink tubing functions. It can precisely cut cables, strip both ends as needed (0 – 30mm at end A, 0 – 10mm at end B), and complete high-quality terminal crimping and heat shrink tubing baking on a single end, streamlining complex wire harness processing.

  1. Precise Specification ControlThe applicable diameter of heat shrink tubing ranges from 3.0 – 6.0mm, with a length of 15 – 26mm, ensuring a snug fit with cables. The cable processing length ranges from 65 – 9999mm, and the cutting error is less than 0.2% overall, guaranteeing high precision and consistency in every cable processed.



Features

  1. Efficient and Stable Production CapacityWith a processing capacity of 1,600 – 2,000 pieces per hour, it meets large-scale production demands. Measuring 18008001400mm and weighing 350KG, the machine features a robust structure, minimizing processing deviations caused by vibrations during operation.

  1. User-Friendly OperationPowered by a standard AC220v – 50HZ voltage and requiring a conventional working air pressure of 0.4 – 0.6MPa, it adapts to most factory environments. Its 2.8Kw power consumption balances efficiency and energy savings. The intuitive operation interface allows workers to quickly master the machine, reducing training costs.

  1. Reliable Performance AssuranceThrough precise parameter control and stable mechanical performance, the TA-SHI01 ensures secure terminal crimping and uniform heat shrink tubing shrinkage, effectively enhancing the electrical performance and protection of wire harnesses. This provides a reliable guarantee for long-term stable product operation.

ModelTA-SHI01
Apply to wireAWG10一20#
Apply to terminalCommon horizontal type,straight type ewcn rao teminal
Pipe Diameter and lengthD3.0mm-6.0mm L15mm-26mm
The processing line length65mm-9999mm
Machining efficiency1600-2000pcs/h
Cutting toleranceOverall less than 0.2 percent
Stripping lengthA end 0-30mm B end 0-10mm
Dimensions1800*800*1400mm
Weight350KG
Working voltageAC220v-50HZ
Work pressure0.4-0.6MPa
Power2.8Kw
