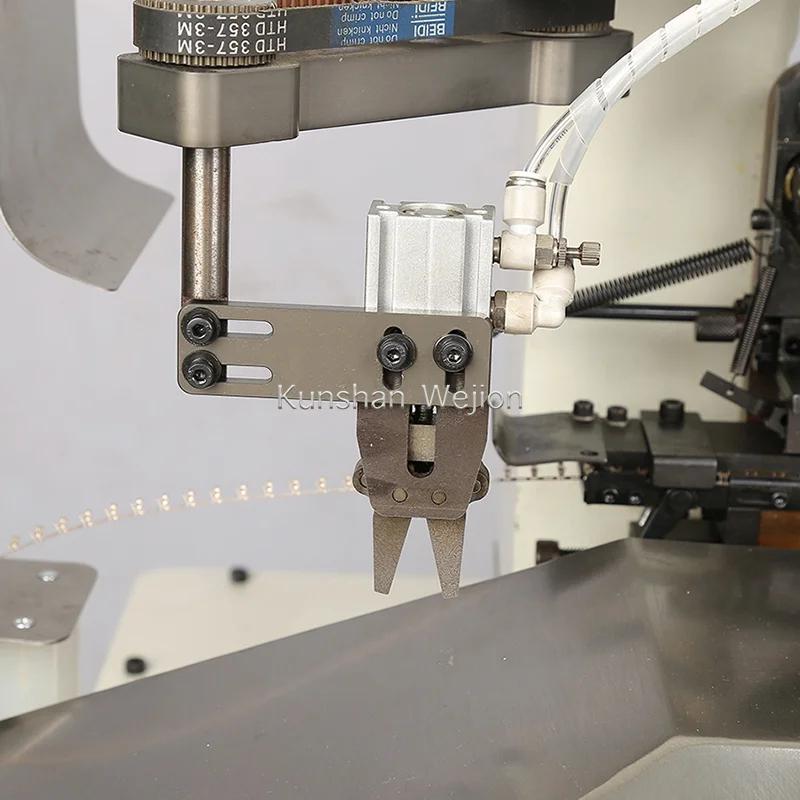

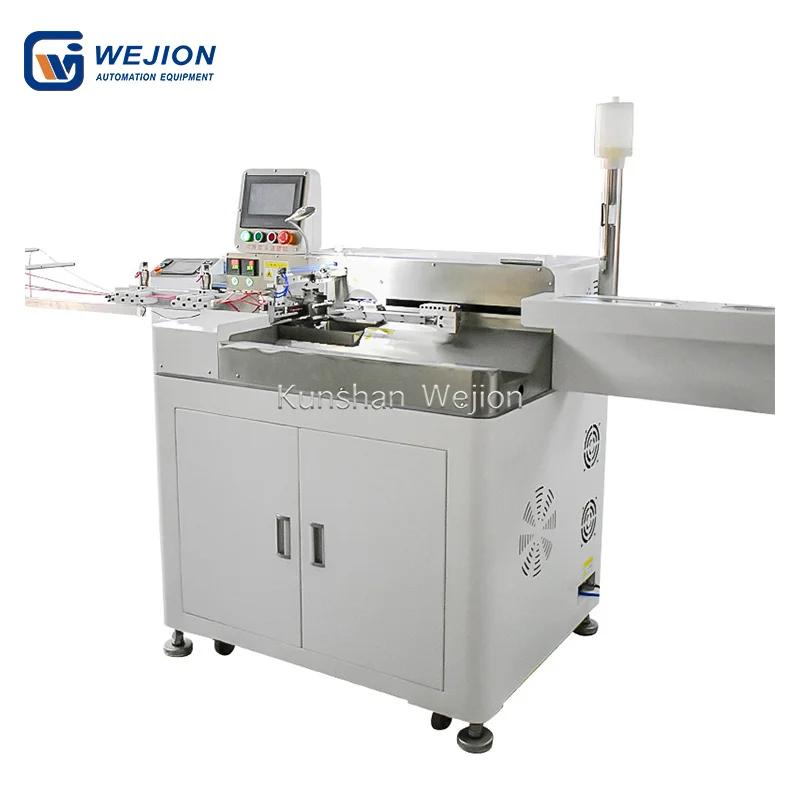

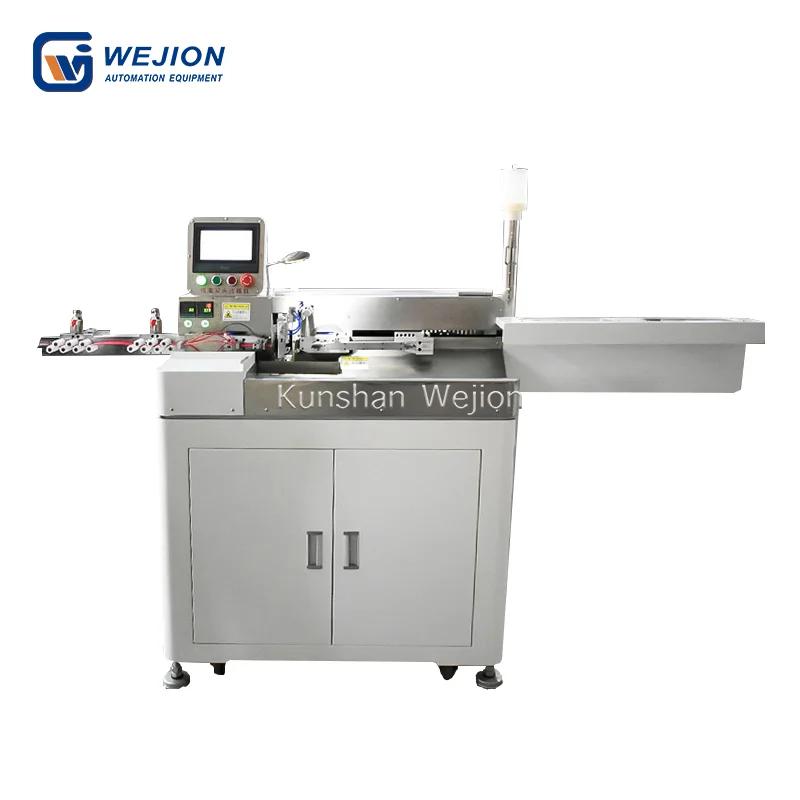

TA-DZX01 full automatic wire cut,strip and crimping tining machine for 5 wires
TA-DZX01 full automatic wire cut,strip and crimping tining machine for 5 wires
TA-DZX01 full automatic wire cut,strip and crimping tining machine for 5 wires
TA-DZX01 full automatic wire cut,strip and crimping tining machine for 5 wires
TA-DZX01 full automatic wire cut,strip and crimping tining machine for 5 wires
TA-DZX01 full automatic wire cut,strip and crimping tining machine for 5 wires
Product Introduction:

Functions

  1. Versatile Wire Processing: The TA-DZX01 is designed for comprehensive wire processing, capable of handling single wires as well as parallel wire cutting, branching, and a variety of end treatments. It supports wire gauges ranging from AWG18 – 32#, making it suitable for a wide array of electrical and electronic applications.

  1. Precise Cutting: With a cutting length range of 10 – 600mm (customizable), the machine ensures accurate wire cutting. The cutting tolerance of 0.2±0.02*L (length) guarantees high precision, minimizing material waste and ensuring consistent quality across all cut wires.

  1. Flexible Stripping: The stripping length can be adjusted from 0 – 7mm, with customizations available for lengths exceeding 7mm. This flexibility allows for tailored wire stripping according to specific application requirements, ensuring optimal electrical connections.

  1. Efficient Tinning: The machine offers tinning lengths between 0.5 – 7mm, enabling effective soldering preparation. Tinning enhances the conductivity and corrosion resistance of wire ends, ensuring reliable electrical connections.

  1. Powerful Crimping: Boasting a crimping ability of 2.0 tons, the TA-DZX01 can securely attach terminals to wires, ensuring a stable and durable connection. This high – pressure crimping capability is crucial for maintaining electrical integrity and mechanical strength.

  1. Multifunctional Operation: It can perform single – end crimping, double – end stripping, single – end half twist, twisting, and dip tin operations, streamlining the wire processing workflow. This multifunctionality makes it an all – in – one solution for wire preparation, reducing the need for multiple machines and increasing production efficiency.

  1. High – Volume Production: The machine has an impressive production capacity of 5500 – 7500 pieces per hour, making it ideal for large – scale manufacturing operations. This high output rate ensures quick turnaround times and increased productivity.

Features

  1. Dedicated Design for 5 – Wire Processing: Specifically engineered for handling 5 wires simultaneously, the TA-DZX01 simplifies the processing of multi – wire assemblies. This design feature significantly reduces processing time compared to handling wires individually, making it highly efficient for applications that require multiple wire connections.

  1. Sturdy and Stable Build: With dimensions of 1210*770*1370mm and weighing 450kg, the machine offers a robust and stable structure. This heavy – duty construction minimizes vibrations during operation, contributing to consistent processing quality and a longer lifespan.

  1. Standardized Power Supply: Operating on an AC220v/50/60HZ power supply, the TA-DZX01 is compatible with common electrical systems worldwide. This standardization ensures easy integration into existing production lines without the need for specialized power adaptations.

  1. Optimal Air Pressure Requirement: Requiring an air connection of 0.5Mpa – 0.7Mpa, the machine operates within a typical industrial air pressure range. This ensures reliable operation and easy connection to existing factory air supply systems.

  1. User – Friendly Operation: Despite its advanced functionality, the TA-DZX01 is designed for ease of use. Its intuitive interface and straightforward operation allow operators to quickly learn and master the machine, reducing training time and improving overall productivity.

ModelTA-DZX01
Power SupplyAC220v/50/60HZ
Dimensions1210*770*1370mm
Weight450kg
Wire RangeAWG18-32#
Cutting Length10-600mm(can be customzed)
Cutting Tolerence0.2±0.02*L(length)
Stripping Length0-7mm(≥7mm needs to be customized)
Tinning Length0.5-7mm
Crimping Ability2.0ton
Air Connection0.5Mpa-0.7Mpa
Mechanical FunctionSingle wire/parallel wire cutting and branching/single-end crimping/double-end stripping/single-end half twist/twisting/dip tin
Production Capacity5500-7500 pcs/h
