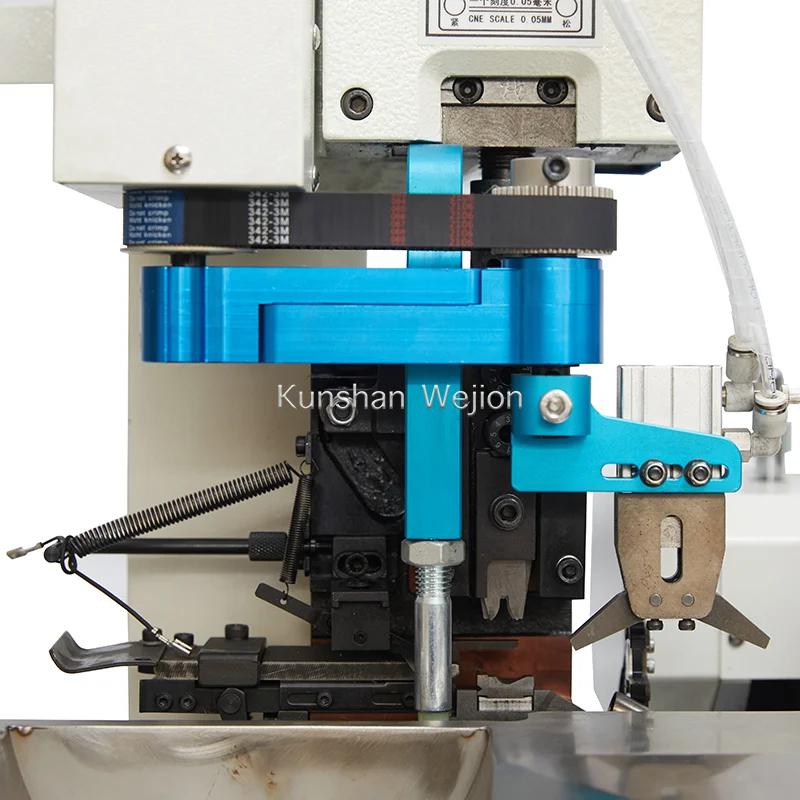

TA-S01 Fully automatic wire cut,strip and double ends crimp machine

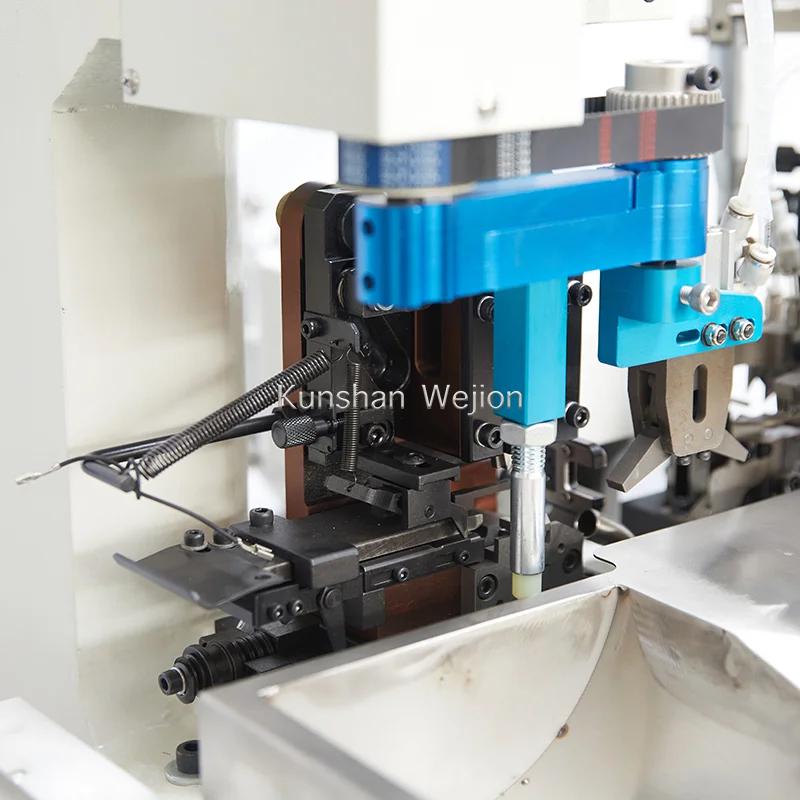

TA-S01 Fully automatic wire cut,strip and double ends crimp machine

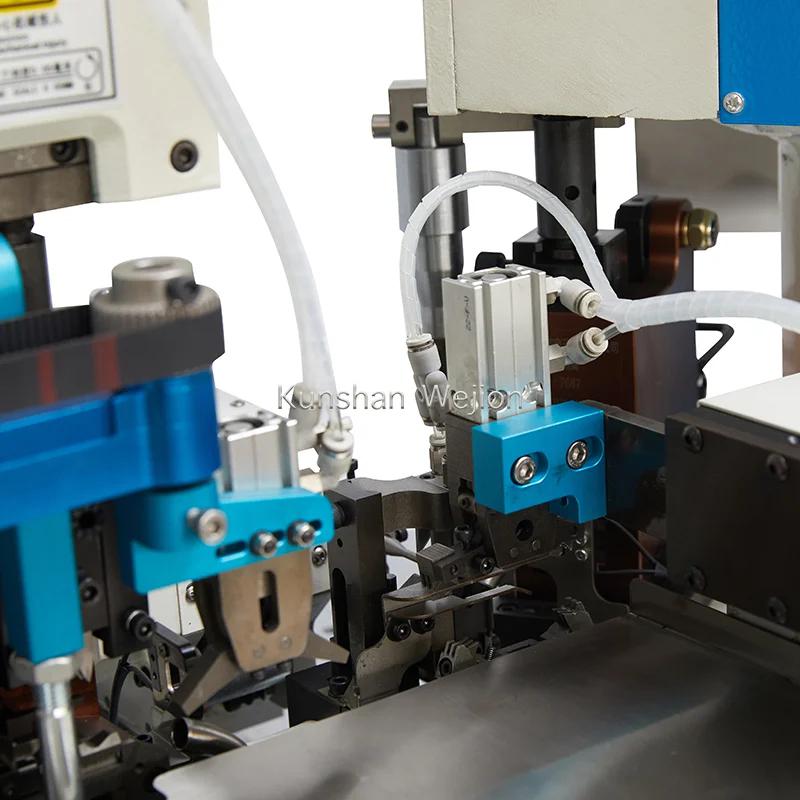

TA-S01 Fully automatic wire cut,strip and double ends crimp machine

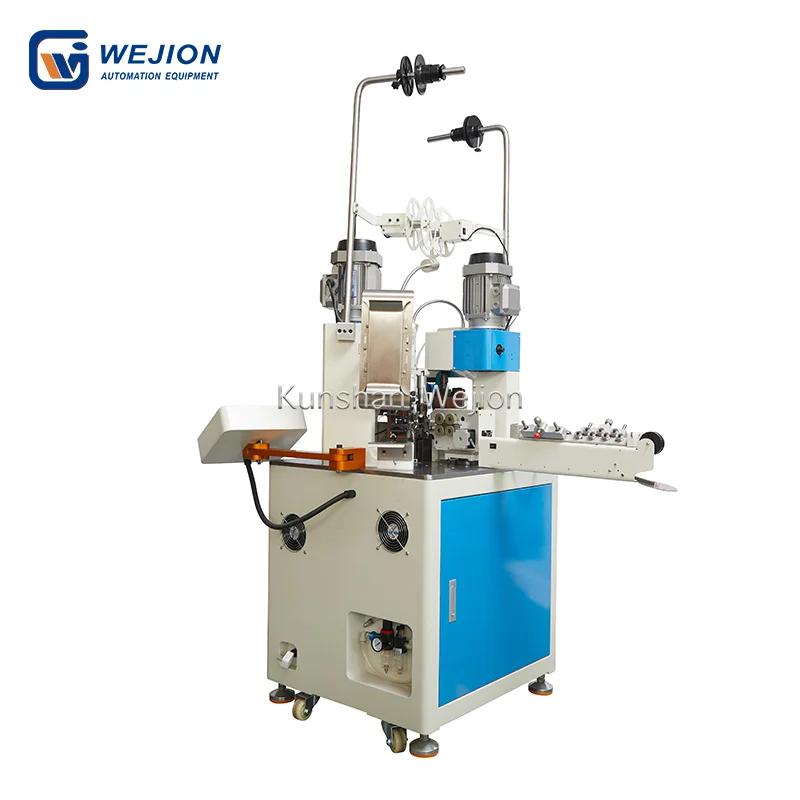

TA-S01 Fully automatic wire cut,strip and double ends crimp machine
TA-S01 Fully automatic wire cut,strip and double ends crimp machine
TA-S01 Fully automatic wire cut,strip and double ends crimp machine
Product Introduction:

Description

Functions

  1. Versatile Wire Processing: Tailored for high-precision processing of wires ranging from AWG18 to AWG28, TA-S01 excels in handling both standard and relatively fine wires. It can cut wires within a length range of 40 – 999mm with a remarkable length tolerance of ±0.2%*L, ensuring consistent and accurate wire lengths. The stripping length can be adjusted flexibly from 0 to 10mm, meeting diverse requirements for wire connections.

  1. Dual-End Automatic Operation: As a fully automatic dual-end terminal machine, it integrates wire feeding, cutting, stripping, and crimping on both ends of the wire into a single automated process. With a production rate of approximately 4000 pieces per hour, it significantly boosts productivity in large – scale manufacturing scenarios. The standard model supports crimping on wires with a minimum total length of 25mm, and customized versions can achieve crimping on wires shorter than 20mm.

  1. Comprehensive Detection System: Equipped with an extensive suite of detection devices, including lack wire detection, lack terminal detection, crimp detection, and pressure detection. Additionally, multiple built-in sensors such as wire shortage sensors, wire knot sensors, defective terminal sensors, and terminal shortage sensors continuously monitor the production process. An optional dual-channel terminal pressure monitoring system can be added to track the pressure curve during each crimping operation. When abnormal pressure is detected, it immediately triggers an alarm and stops the machine, preventing defective products and ensuring production quality and safety.

  1. Universal Power and Air Compatibility: It operates on a wide – range power supply of 110/220VAC, 50/60Hz with a power consumption of 2500W, making it suitable for use in various regions. The required air connection of 0.4 – 0.6MPa ensures stable operation of its pneumatic components.

Features

  1. Advanced Technological Integration: Incorporates cutting-edge foreign technologies in both its appearance and performance. The modular design concept and structured software, combined with advanced Japanese data exchange solutions, ensure seamless coordination among all working modules. This design not only facilitates maintenance and upgrades but also allows for easy customization to meet specific production needs.

  1. All-in-One Automation: Eliminates the need for external wire feeders by integrating all key wire processing functions into a single operation. This streamlines the production workflow, reduces potential errors caused by multiple devices, and enhances overall production efficiency.

  1. Intelligent and User-Friendly Design: Features a digital control interface and a touch-operated panel, providing an intuitive and straightforward operation experience. The unified PLC control system integrates optical, electrical, mechanical, pneumatic, and magnetic components, enabling a single operator to manage multiple machines simultaneously. This significantly reduces labor costs and improves production management efficiency.

  1. High-Precision Quality Control: The built-in high-precision wire stripping and crimping detection system ensures strict quality control throughout the production process. This makes TA-S01 an ideal choice for industries with stringent manufacturing standards, such as electronics, automotive, and telecommunications, where reliable wire connections are crucial for product performance and safety.

  1. Compact and Robust Construction: With dimensions of 12060200cm and a weight of about 320kg, the machine balances a relatively compact footprint with robust construction, allowing for easy installation in various factory layouts while ensuring stability during high-speed operation.

ModelTA-S01TA-S02TA-S03
FeaturesRegularSmall wireBig wire
Available Wire SizeAWG18-28#AWG20-32#AWG12-26#
Cutting Length40-999mm
Length Tolerance±0.2%*L
Stripping Length0-10mm
Detection DeviceLack wire detection, Lack terminal detection, Crimp detection, Pressure detection
Machine Production RateAbout 4000 pcs/h
Air Connection0.4-0.6MPa
Power Supply110/220VAC,50/60Hz
Power2500W
WeightAbout 320kg
Dimensions120*60*200cm
