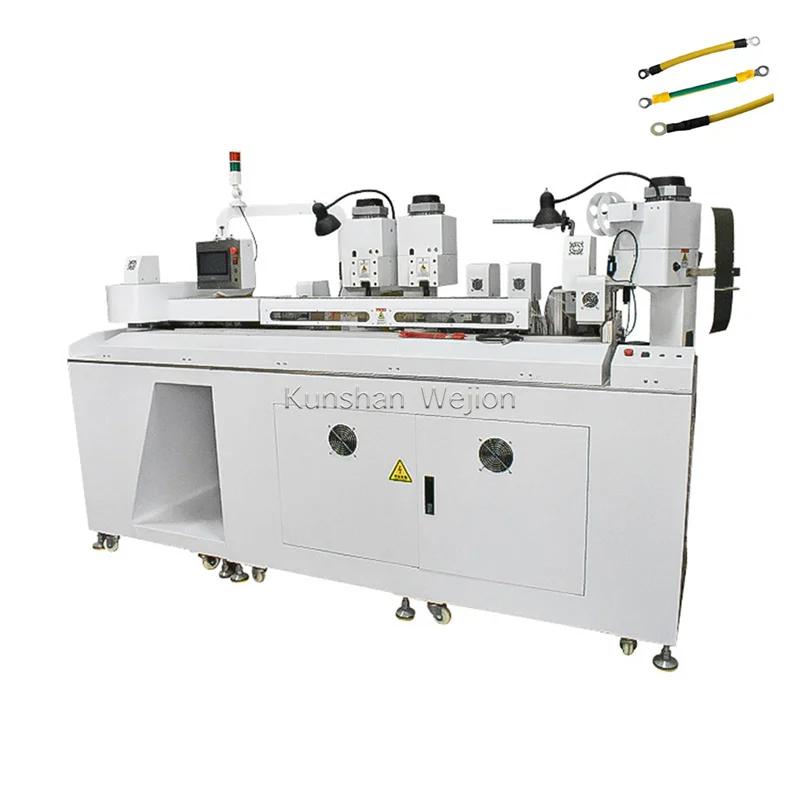

TA-DHI01 Full-automatic terminal crimping double-head heat shrink tubing machine
TA-DHI01 Full-automatic terminal crimping double-head heat shrink tubing machine
TA-DHI01 Full-automatic terminal crimping double-head heat shrink tubing machine
TA-DHI01 Full-automatic terminal crimping double-head heat shrink tubing machine
TA-DHI01 Full-automatic terminal crimping double-head heat shrink tubing machine
TA-DHI01 Full-automatic terminal crimping double-head heat shrink tubing machine
Product Introduction:

Description

Function

  1. Wide Cable Compatibility: The TA-DHI01 is compatible with cables ranging from AWG10# to 20#, enabling stable processing of both thick power transmission cables and thin signal transmission cables. It meets the cable processing needs of various fields, including electrical and electronic industries.

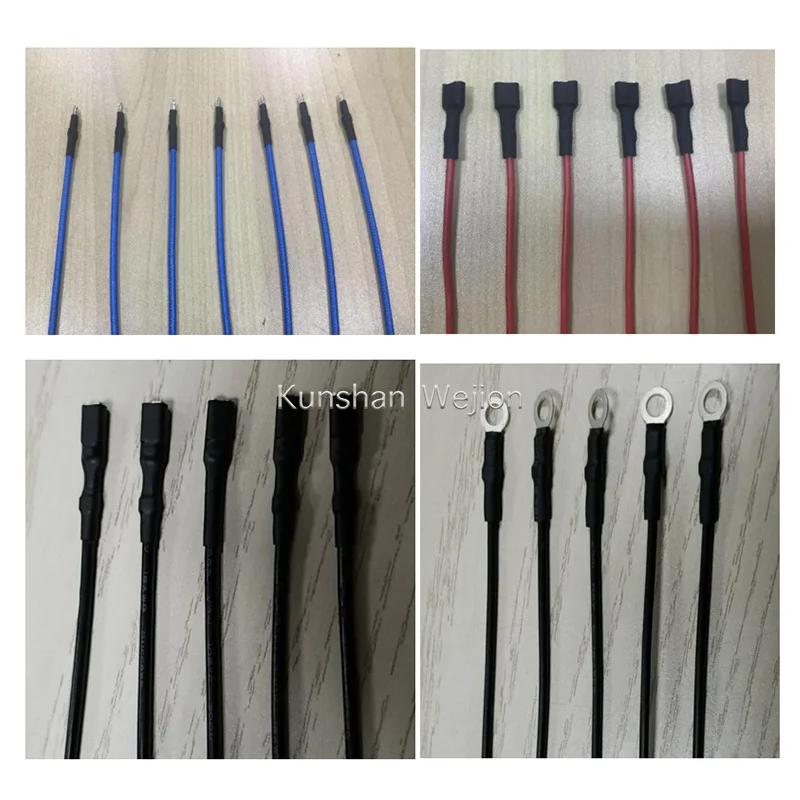

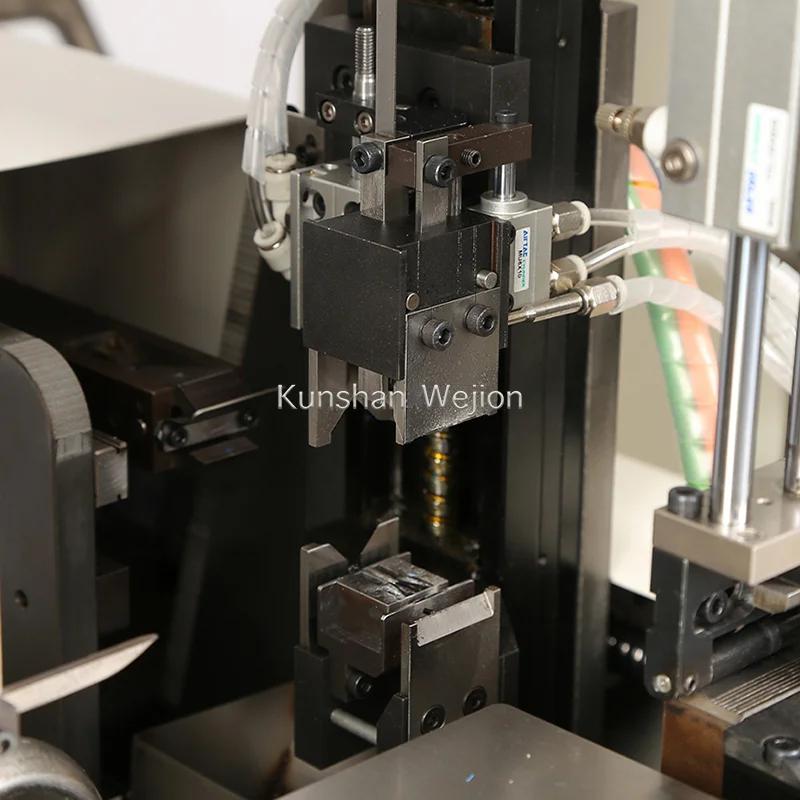

  1. Integrated Multifunctional Processing: This machine integrates cutting, half-stripping, full-stripping, single and double-end crimping, and single-end heat shrink tubing baking functions. It can precisely crimp ordinary horizontal and straight connection terminals on both ends of the cable and bake the heat shrink tubing on one end, completing complex wire harness processing in one stop.

  1. Precise Specification Control: The cutting length ranges from 75 to 9999mm with a tolerance of only ±0.2%, ensuring accurate cable cutting. The stripping length can reach 0 – 30mm at end A and 0 – 10mm at end B, flexibly adapting to different terminal and electrical connection requirements. It can handle heat shrink tubing with a diameter of 3.0 – 6.0mm and a length of 12 – 26mm, ensuring a tight fit between the tubing and the cable.

Features

  1. High-Efficiency Production Capacity: With an output of 1800 – 2000 pieces per hour, it significantly improves the production efficiency of wire harnesses, especially suitable for large-scale production scenarios and effectively shortening the delivery cycle.

  1. Stable and Reliable Operation: With dimensions of 18008001400mm and a weight of 350kg, the machine has a sturdy structure, minimizing vibrations during operation. It is powered by a standard AC 220V – 50Hz voltage and connected with a conventional air pressure of 0.4 – 0.6MPa, adapting to most factory environments. Its 2800Kw power ensures stable and efficient operation.

  1. Convenient and User-Friendly Operation: With a high degree of automation, operators only need to input parameters, and the machine can complete a series of complex processing procedures. This reduces the difficulty of manual operation and the error rate. It is also easy to integrate with other production equipment, optimizing the overall production process.

MedelTA-DHI01
Workable CableAWG10#一20#
Workable TerminalOrdinary horizontal,Straight connection terminal
machine FunctionCutting,Half stripping,full stripping,single and double cimping,single end shrink tubing machine
Conduit Diameter And LengthD3.0-6.0mm L12-26mm
Workable wire length75-9999mm
Workable efficiency1800-2000pcs/h
Cutting Tolerance±0.2%
Stripping LengthA end 0-30mm B end 0-10mm
Dimensions1800*800*1400mm
Weight350kg
VoltageAC 220V-50Hz
Air Connection0.4-0.6MPa
Power2800Kw
