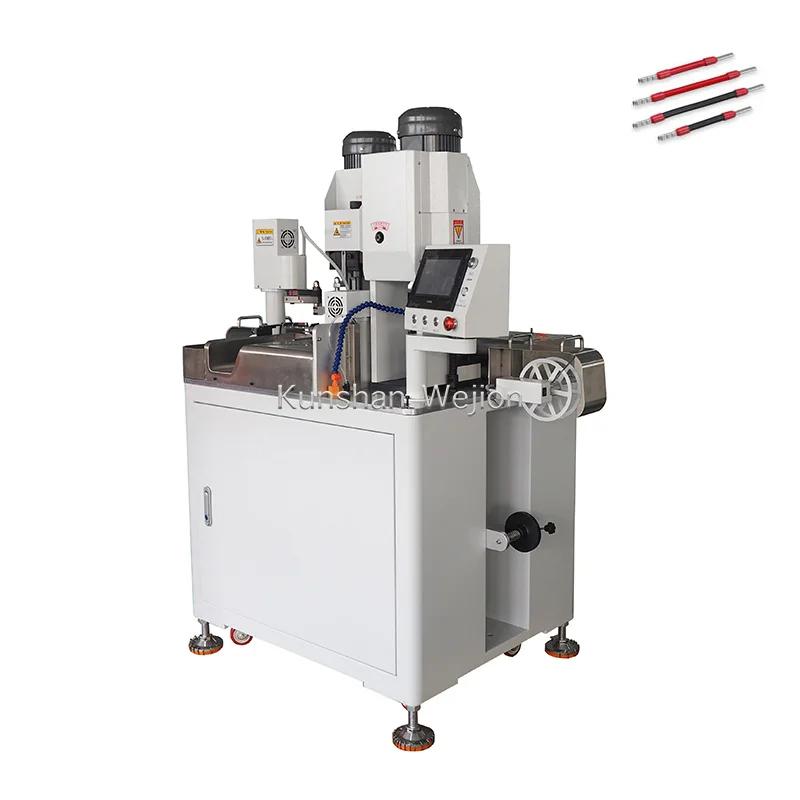

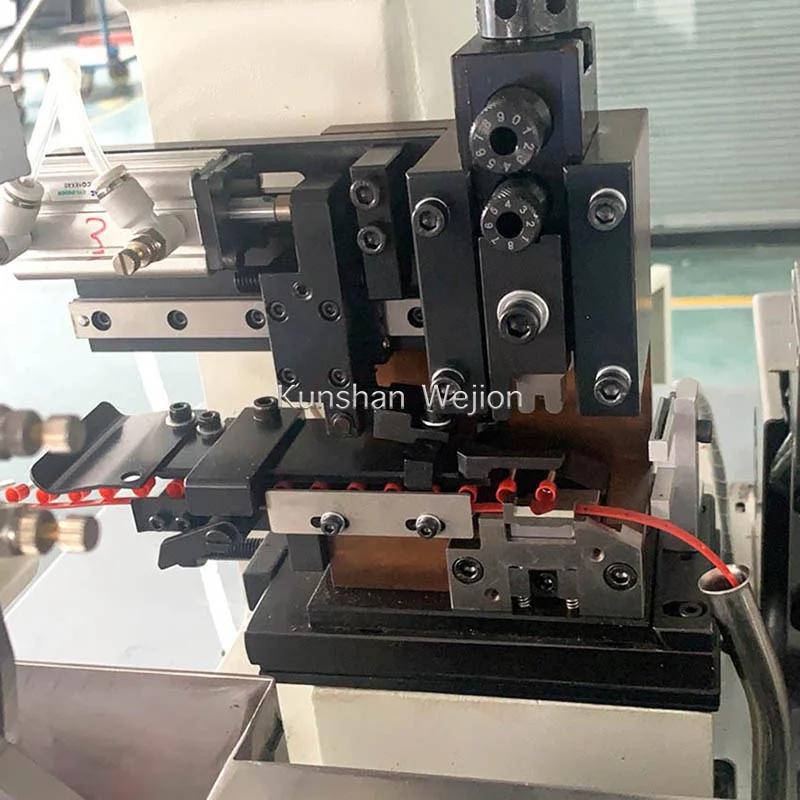

TA-F01 automatic wire cut strip and 2 ends insulation ferrules crimping machine

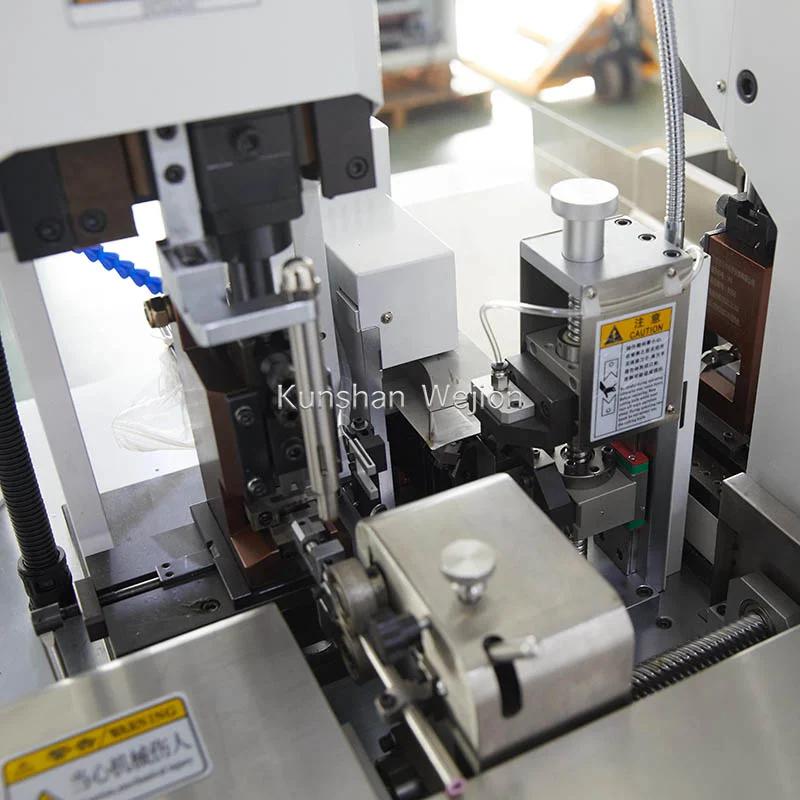

TA-F01 automatic wire cut strip and 2 ends insulation ferrules crimping machine
TA-F01 automatic wire cut strip and 2 ends insulation ferrules crimping machine
TA-F01 automatic wire cut strip and 2 ends insulation ferrules crimping machine
TA-F01 automatic wire cut strip and 2 ends insulation ferrules crimping machine
TA-F01 automatic wire cut strip and 2 ends insulation ferrules crimping machine
Product Introduction:

Description

Functions

  1. High-Precision Wire Processing: Specifically engineered for ultra-fine wires ranging from AWG18 to AWG28, the TA-F01 offers unparalleled accuracy in wire cutting, stripping, and terminal crimping. It can cut wires within the 40 – 999mm range with a length tolerance of ±0.2%*L, and the stripping length is adjustable from 0 to 10mm, ensuring consistent and precise wire processing for various applications.

  1. Dual-End Automatic Operation: As a fully automatic dual-end terminal machine, it seamlessly integrates wire feeding, cutting, stripping, and pre-insulated terminal crimping on both ends of the wire in a single automated process. With an impressive production rate of about 4000 pieces per hour, it significantly boosts productivity in large-scale manufacturing. The standard model supports crimping on wires as short as 25mm in total length, and customized versions can handle wires shorter than 20mm.

  1. Comprehensive Detection System: Equipped with an extensive array of detection devices, including lack wire detection, lack terminal detection, crimp detection, and pressure detection. Additionally, built-in sensors such as wire shortage sensors, wire knot sensors, defective terminal sensors, and terminal shortage sensors monitor the production process in real-time. An optional dual-channel terminal pressure monitoring system can track the pressure curve during each crimping operation, automatically triggering an alarm and halting production when abnormal pressure is detected, thus ensuring high-quality output.

  1. Universal Compatibility: The machine operates on a wide-range power supply of 110/220VAC, 50/60Hz with a power consumption of 2500W, making it suitable for use globally. It requires an air connection of 0.4 – 0.6MPa, ensuring stable operation of its pneumatic components.

Features

  1. Advanced Technological Design: Incorporates cutting-edge foreign technologies in both appearance and performance. The modular design concept and structured software, combined with advanced Japanese data exchange solutions, ensure seamless coordination among all working modules. This design not only simplifies maintenance and upgrades but also allows for easy customization to meet specific production needs.

  1. All-in-One Automation: Eliminates the need for external wire feeders by integrating all key wire processing functions into a single operation. This streamlines the production workflow, reduces potential errors caused by multiple devices, and enhances overall production efficiency.

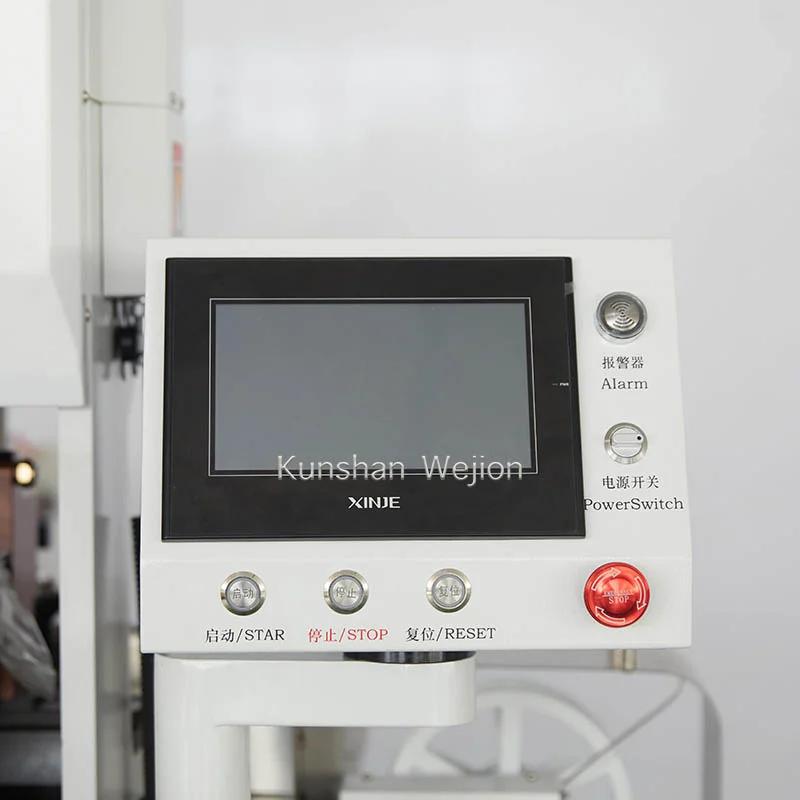

  1. Intelligent and User-Friendly Interface: Features a digital control interface and a touch-operated panel, providing an intuitive and easy-to-use operation experience. The unified PLC control system integrates optical, electrical, mechanical, pneumatic, and magnetic components, enabling a single operator to manage multiple machines simultaneously. This significantly reduces labor costs and improves production management efficiency.

  1. High-Precision Quality Assurance: The built-in high-precision wire stripping and crimping detection system ensures strict quality control throughout the production process. This makes the TA-F01 an ideal choice for industries with stringent manufacturing standards, such as electronics, automotive, and telecommunications, where reliable wire connections are crucial for product performance and safety.

  1. Robust and Compact Construction: With dimensions of 12060200cm and a weight of about 320kg, the machine balances a compact footprint with robust construction, allowing for easy installation in various factory layouts while ensuring stability during high-speed operation.

ModelTA-F01
FeaturesRegular
Available Wire SizeAWG18-28#
Cutting Length40-999mm
Length Tolerance±0.2%*L
Stripping Length0-10mm
Detection DeviceLack wire detection, Lack terminal detection, Crimp detection, Pressure detection
Machine Production RateAbout 4000 pcs/h
Air Connection0.4-0.6MPa
Power Supply110/220VAC,50/60Hz
Power2500W
WeightAbout 320kg
Dimensions120*60*200cm
