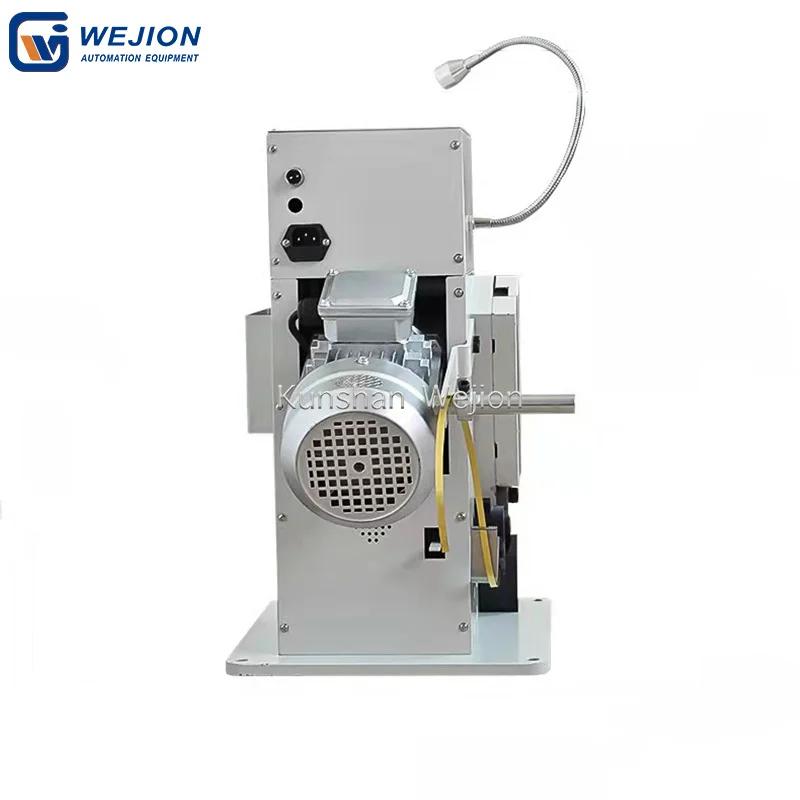

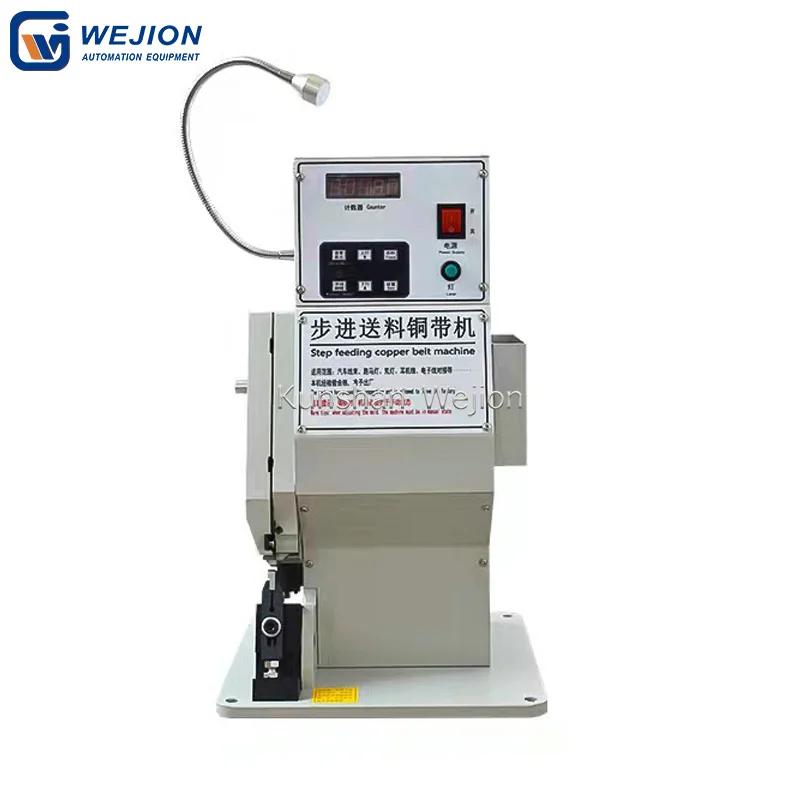

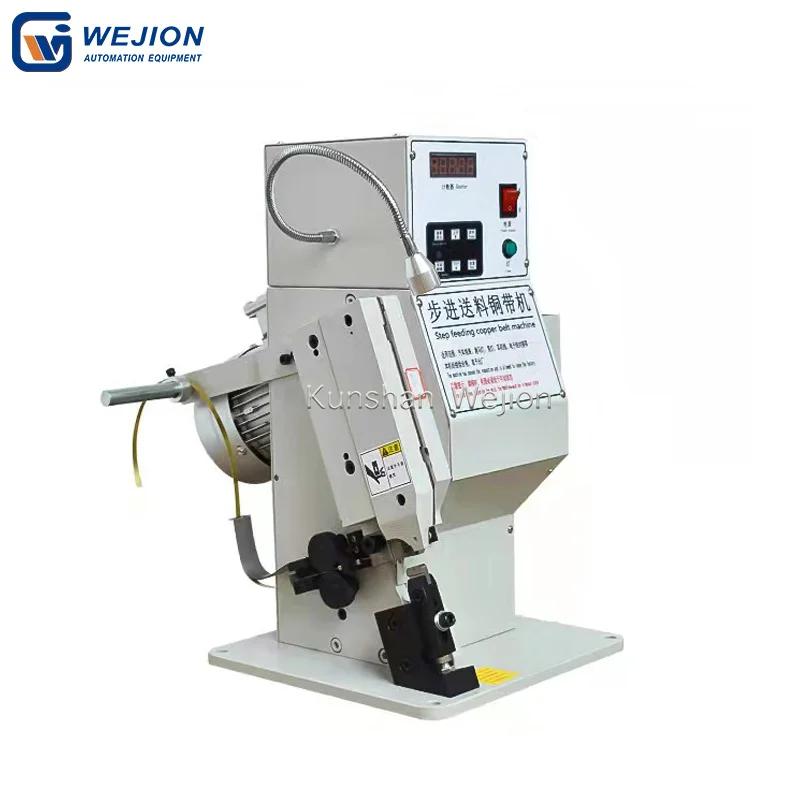

WC-3.0 Copper tape handling belt processing machine

Product Introduction:

Functions

1. Specialized Riveting – based Wire Processing

The WC-3.0 is engineered specifically for wire processing that requires riveting. With a powerful 3000kg crimping force and a 23mm stroke, it securely connects wires by riveting, replacing traditional soldering methods. This eliminates issues like cold soldering and dry soldering, ensuring reliable electrical connections. It meets safety standards such as UL and JIS, making it an ideal solution for compliant manufacturing. The 8mm adjustable height allows for precise processing of wires with different thicknesses.

2. Integrated Copper Belt Terminal Processing

The machine processes special continuous copper belt terminal materials. It integrates cutting, shaping, and crimping into one seamless operation, enabling rapid production without generating waste. This integrated process not only saves time but also optimizes production costs, making it highly efficient for mass – scale manufacturing.

3. Versatile Application with Different Dies

Equipped with both straight and bent die holders, the WC-3.0 can handle a wide variety of products, catering to diverse wire – terminal connection requirements. Whether for straight – line or angled wire – terminal assemblies, the machine provides consistent and reliable performance.

Features

1. Efficient and Environment – friendly Operation

By replacing soldering with riveting, the WC-3.0 avoids air pollution caused by solder fumes, promoting a cleaner production environment. Its integrated terminal processing without waste contributes to resource – saving and cost – effective manufacturing. The 1.1KW motor power ensures stable and powerful operation while maintaining energy efficiency.

2. High – Quality and Durable Connections

The copper belt terminals undergo a special circuit treatment, resulting in extremely high tensile strength after riveting. This ensures that the wire – terminal connections are stable and durable, reducing the risk of connection failures during use. The machine’s robust 3000kg crimping force further enhances the strength of the connections.

3. User – friendly and Compact Design

With a compact size (400*290*500mm) and weighing only 45kg, the machine is easy to install and move. Its intuitive design allows for straightforward operation, even for novice operators. The 220V/50HZ power supply ensures stable operation, making it suitable for various production environments.
