Product Introduction:

Functions

1. Integrated Splicing Process

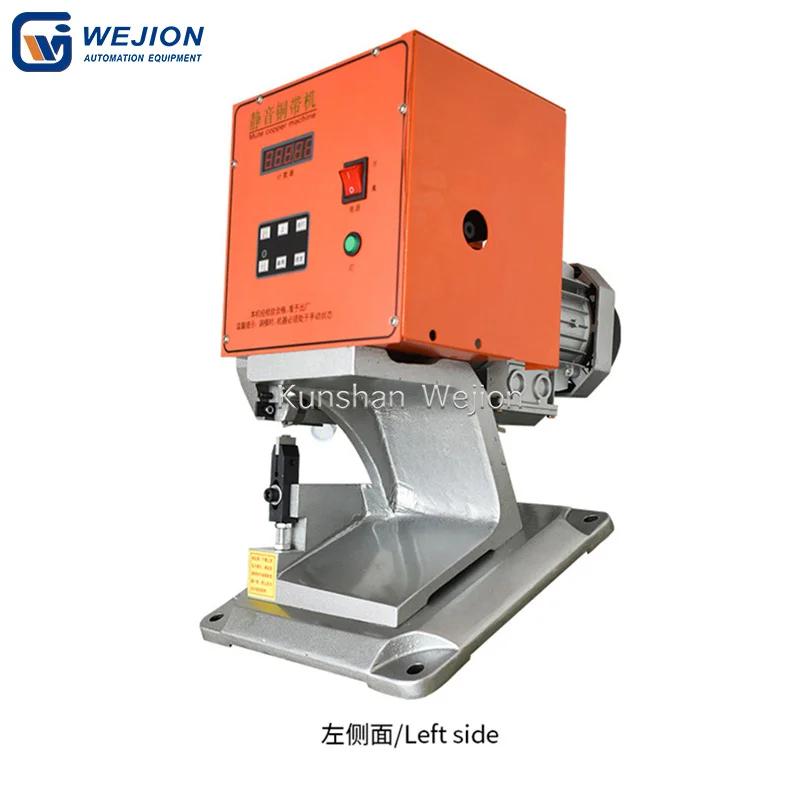

   The WC – 1.8 is a specialized copper belt tape splicing machine designed to streamline the splicing operation. It can perform cutting, shaping, and splicing of copper belt tapes in one continuous process. With a stroke of 23mm and a robust 1800KG splicing force, it firmly joins copper belt tapes together, ensuring a secure and reliable connection. This eliminates the need for traditional, less efficient joining methods and reduces the risk of weak connections or tape separation.

2. Customizable Splicing
   Featuring an 8mm height adjustment range, the machine allows operators to adapt to different thicknesses of copper belt tapes, providing flexibility for various production requirements. Whether dealing with thin tapes for delicate electronic applications or thicker ones for more heavy – duty uses, the WC – 1.8 can optimize the splicing process accordingly. The straight and bent die holders further expand its versatility, enabling it to handle different splicing angles and configurations.

3. Compliance – Driven Performance
   Designed to meet safety standards like UL and JIS, the WC – 1.8 ensures that the spliced copper belt tapes adhere to strict quality and safety regulations. This makes it suitable for industries where product reliability and safety are of utmost importance, guaranteeing that the spliced tapes can withstand the rigors of subsequent use.

Features

1. Efficient and Waste – Reducing
   The machine’s integrated operation not only speeds up the splicing process but also generates minimal waste. By processing the copper belt tapes in a single operation, it maximizes material utilization, saving costs and enhancing production efficiency. Its 0.75KW power consumption with a 220V/50HZ power supply ensures energy – efficient operation without sacrificing performance.

2. High – Strength Spliced Joints

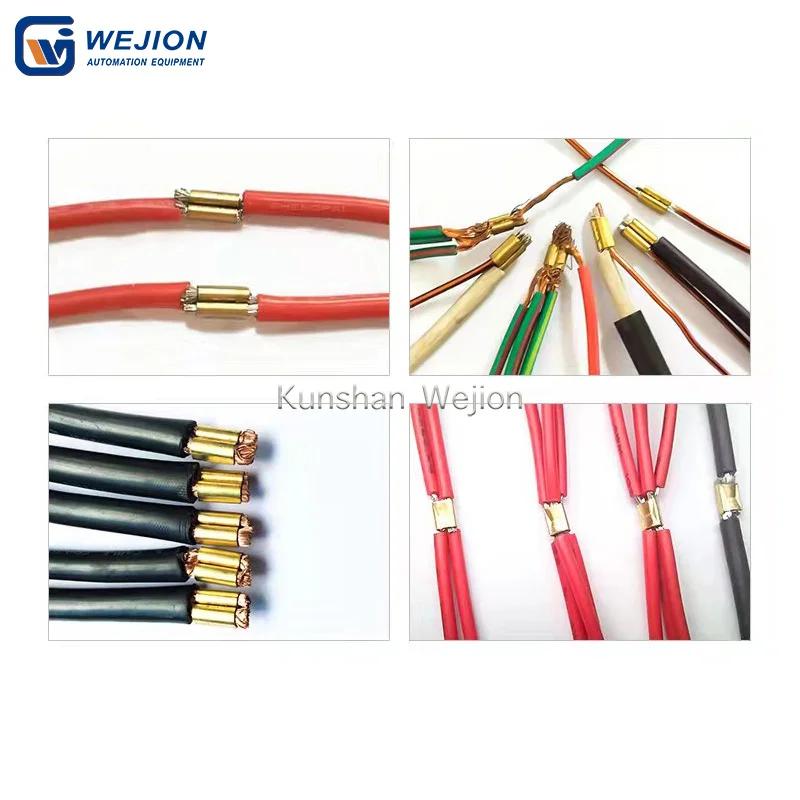

   Thanks to the special treatment of the copper belt tapes during the splicing process, the resulting joints have exceptional tensile strength. This means the spliced copper belt tapes can endure significant stress and tension, maintaining their integrity in demanding applications. The consistent quality of the splices contributes to the overall reliability of products that incorporate these tapes.

3. User – Friendly and Compact

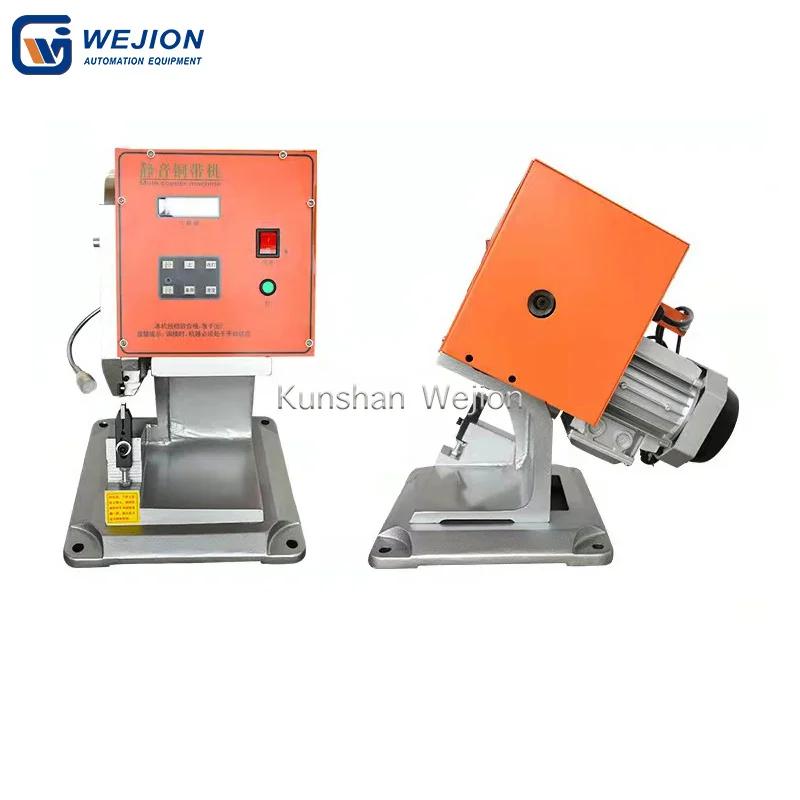

   Weighing 41kg and with compact dimensions of 300*420*450mm, the WC – 1.8 is easy to install and operate in various production environments. Its intuitive design allows operators to quickly get up to speed, regardless of their experience level. The straightforward operation and maintenance requirements make it a practical choice for manufacturers looking for a reliable copper belt tape splicing solution.
