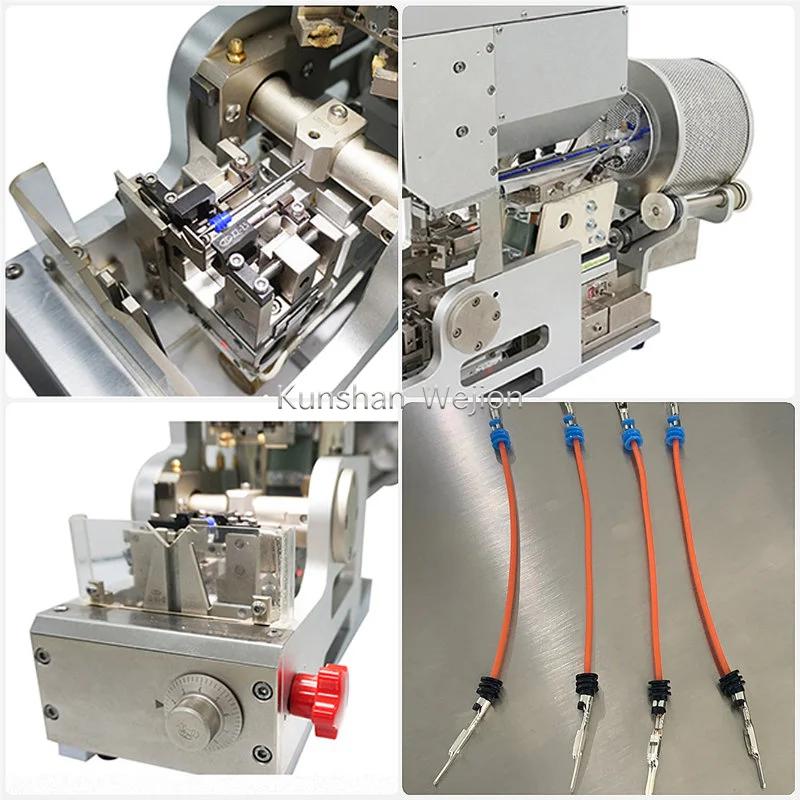

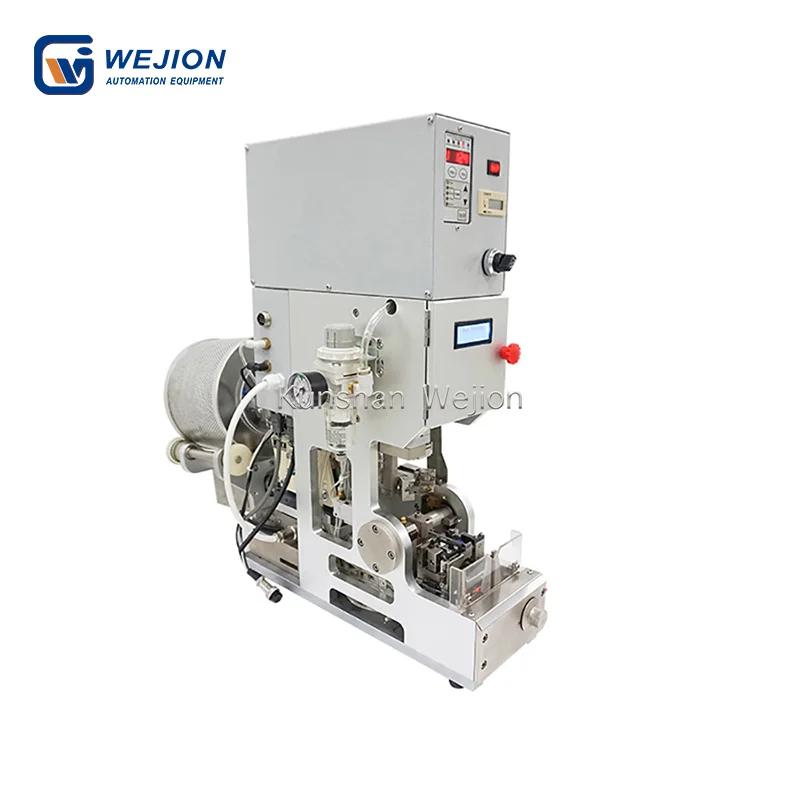

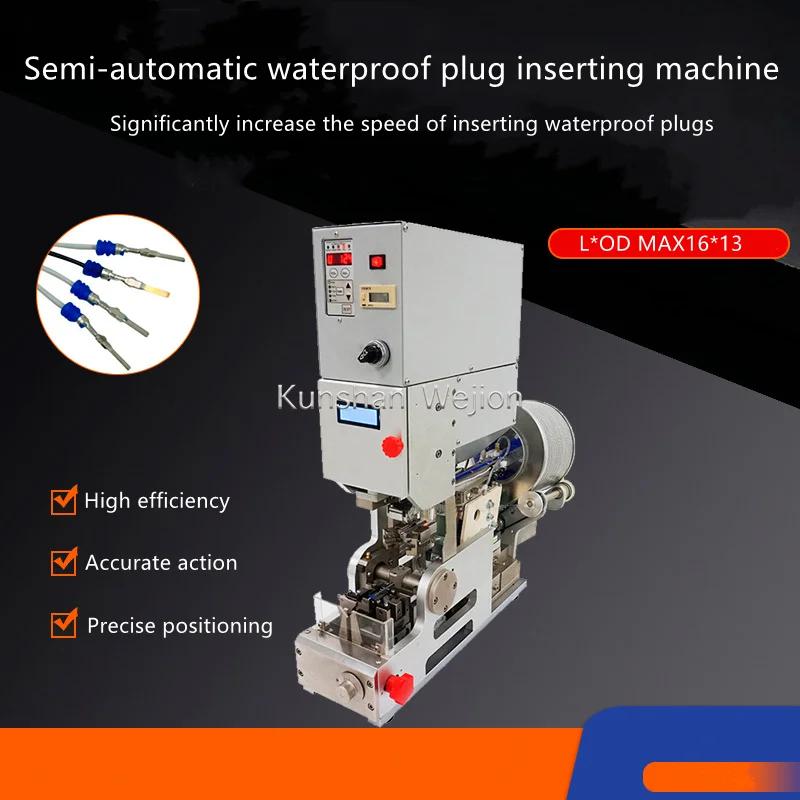

CFS01 Semi automatic waterproof seal plug inserting machine
CFS01 Semi automatic waterproof seal plug inserting machine
CFS01 Semi automatic waterproof seal plug inserting machine
CFS01 Semi automatic waterproof seal plug inserting machine
CFS01 Semi automatic waterproof seal plug inserting machine
CFS01 Semi automatic waterproof seal plug inserting machine
Product Introduction:

Functions:

1. Efficient Waterproof Plug Insertion
The CFS01 semi – automatic machine can handle wire seals up to φ16*15mm in size, inserting waterproof plugs at a high speed of 70 pieces per minute, significantly boosting production efficiency for wire sealing tasks.



2. Versatile Power and Air Compatibility
It operates on AC 220/110V power (50/60Hz) and requires an air supply of 0.5 – 0.7Mpa, allowing for flexible use in various regions and production environments.



3. Semi – automatic Operation
The semi – automatic design enables operators to quickly load wires and initiate the insertion process, combining manual convenience with machine – driven precision for accurate waterproof plug installation.

Features:

1. Compact and Lightweight
With dimensions of L60W60H26cm and weighing only 35kgs, the CFS01 is highly portable and easy to integrate into existing production lines without occupying excessive space.



2. Energy – efficient Design
Consuming just 80W of power, it minimizes energy costs while maintaining high – speed operation, making it an economical choice for manufacturers.



3. Customizable Feeding Rail
Although it requires a customized feeding rail for different wire seals, this feature allows for precise adaptation to various wire seal specifications, ensuring consistent and reliable performance across diverse applications.
ModelCFS01
Wire seal size (diameter*Length)≤φ16*15(Max)
Production rate70pcs/min
Air Supply0.5~0.7Mpa
Power supplyAC 220/110V,  50/60Hz
Power80W
SizeL60*W60*H26cm
Weight:35kgs
Noticeneed to customize feeding rail according to different wire seal


Published date：Jan.15.2026  Viewed：16  【Print】
 Tab：Semi-auto waterproof plug installer  Semi-automatic wire sealing machine
