Product Introduction:

Functions:

1. Multi – process Integration
   The WI – 2000 is capable of performing three crucial operations – plug insertion, wire stripping, and crimping – simultaneously. This integrated functionality significantly streamlines the production process, eliminating the need for multiple separate machines and reducing production time and costs. For example, in the manufacturing of electrical wiring harnesses, all these processes can be completed in one machine, enhancing overall productivity.

2. Data – driven Adjustment
   The machine allows for precise data – based adjustments. The wire stripping length can be modified according to specific requirements, ranging from 1.0mm to 10.0mm. Additionally, the depth of the waterproof plug insertion can be adjusted based on the adhesive position between the stripping point and the plug, and the terminal encapsulation depth can be set according to the wire – topping position. This data – driven approach ensures high precision in each operation, meeting different product specifications.

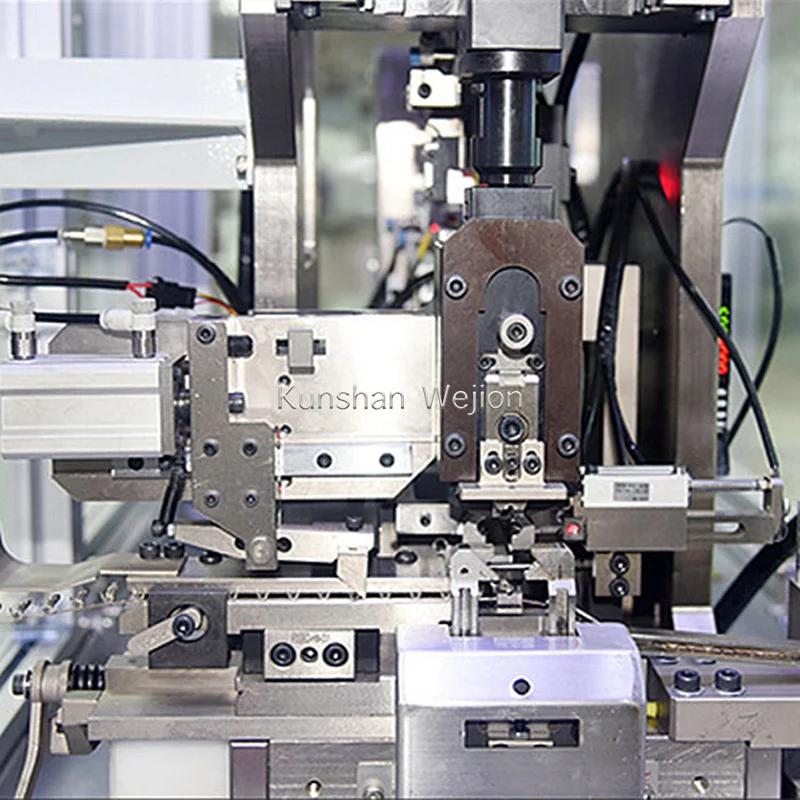

3. High – speed and Stable Crimping

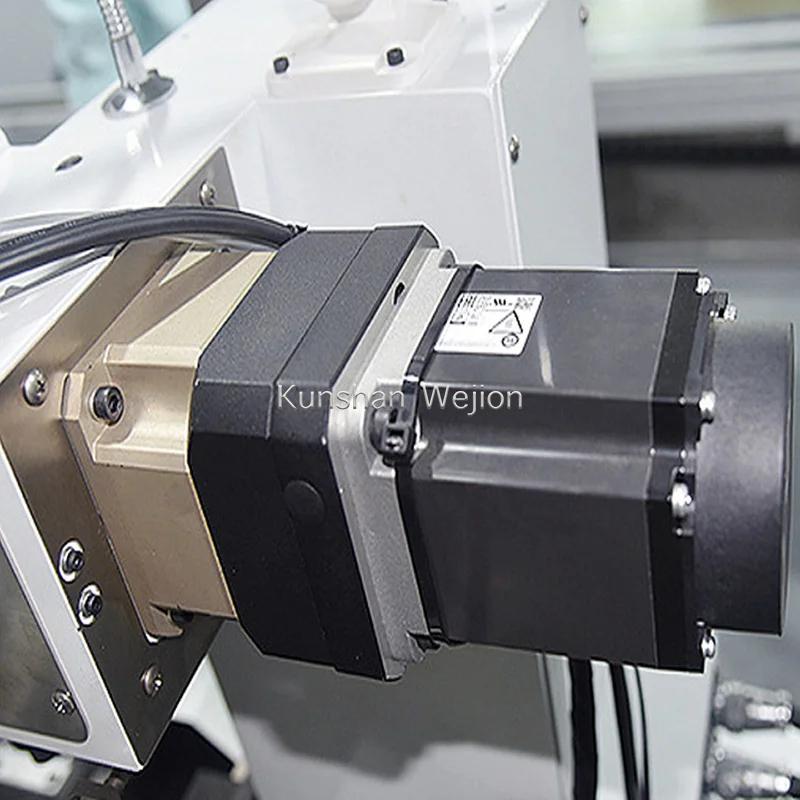

   Driven by a high – efficiency servo motor, the terminal crimping function of the WI – 2000 enables high – speed stamping with a crimping force of 2T (and customizable to 4T). This stable pressure ensures reliable electrical connections, reducing the risk of loose crimps and enhancing the quality of the final product. In applications where large quantities of terminals need to be crimped, such as in automotive wiring production, the high – speed and stable crimping performance is essential.

4. Efficient Wire Stripping
   The wire stripping function utilizes a combination of a screw – driven slide and a motor – screw mechanism. This ensures accurate stripping of wires with diameters ranging from 1.0mm to 4.0mm, and a minimum jacket cable length of 25mm. The accurate stripping is crucial for proper wire connection and insulation, preventing electrical shorts and ensuring the safety and reliability of electrical systems.

Features:

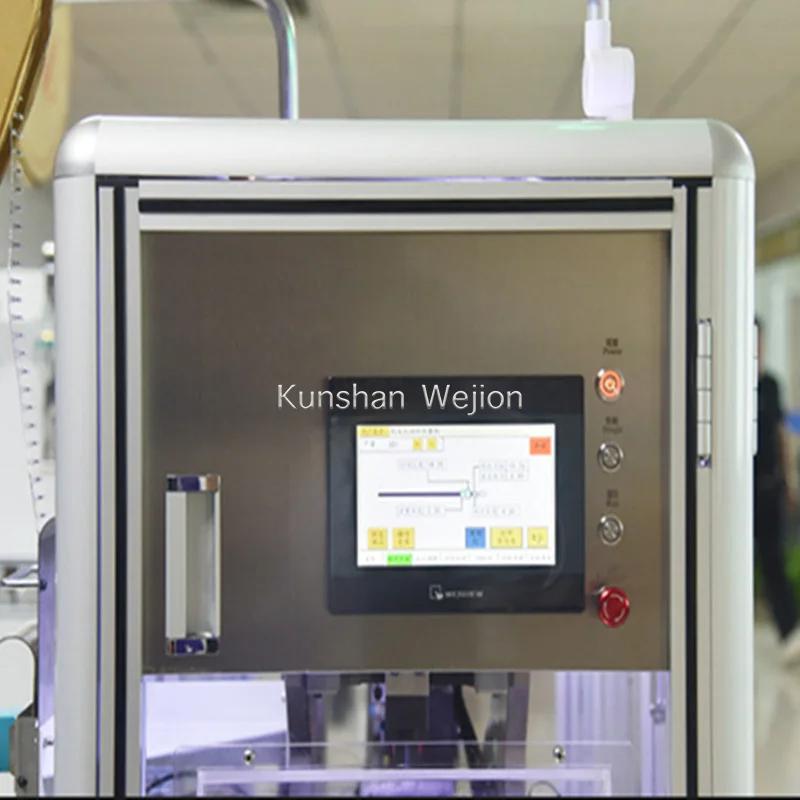

1. User – friendly Operation
   The machine’s operation is simple, making it easy for operators to use. The data – driven adjustment system and the centralized workstation design contribute to this user – friendly experience. New operators can quickly learn to operate the machine, reducing the need for extensive training and minimizing the potential for human error.

2. Stable Quality
   The WI – 2000 is designed to provide stable performance. The use of high – quality components such as the servo motor and the screw – driven mechanisms ensures consistent operation and reliable product quality. This stability is crucial for large – scale production, where product quality must be maintained across a large number of products.

3. Versatile Waterproof Plug Feeding
   The waterproof plug feeding structure of the machine is simple and easy to replace. This feature allows the machine to adapt to different types of waterproof plugs, meeting the diverse product requirements of customers. Whether in the production of consumer electronics, electrical appliances, or automotive components, the machine can handle various waterproof plug specifications.

4. Wide Power and Air Supply Compatibility
   With a power supply of 220V 50/60Hz and an air source requirement of 0.4 – 0.6mpa (using dry and clean air), the machine can operate in a wide range of environments. This compatibility makes it suitable for use in different regions and production setups, enhancing its versatility.

5. Productivity – oriented Design
   The production capacity of 1200 – 1500 pieces per hour, combined with the simultaneous execution of multiple processes, makes the WI – 2000 highly productive. The 40mm stroke and efficient mechanisms contribute to this high productivity, making it an ideal choice for manufacturers looking to increase their production output while maintaining product quality.
