Functions

1. Comprehensive Integrated Processing

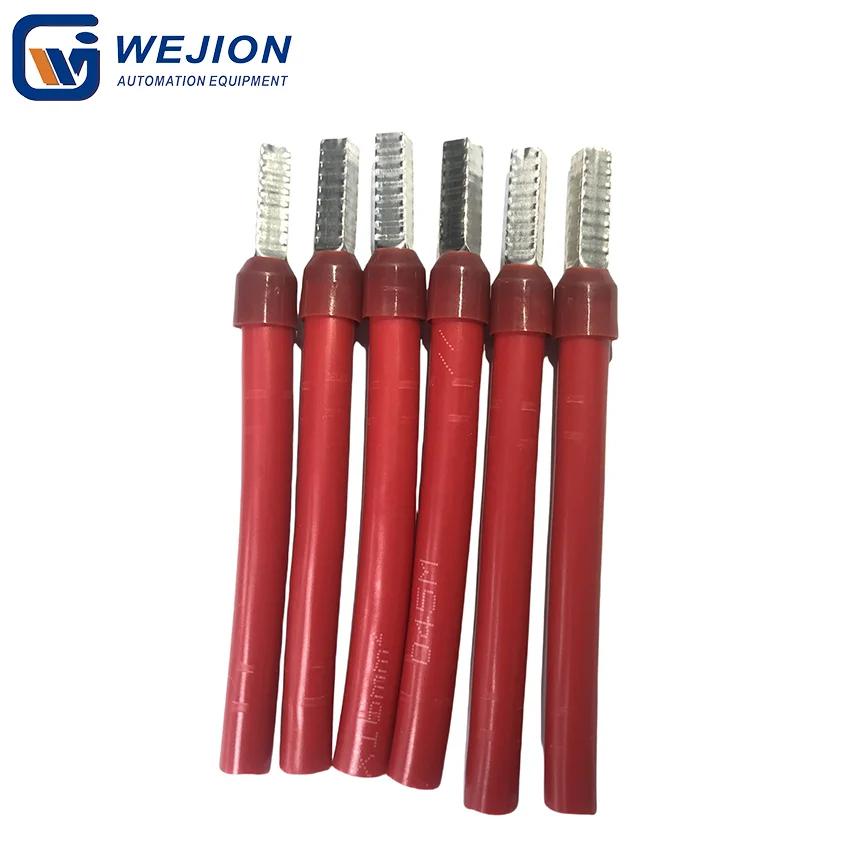

   The TF-16 is a high – performance semi – automatic machine that integrates multiple functions. It utilizes a vibration plate for material feeding, and then proceeds with electric wire clamping, stripping, twisting, terminal insertion, and servo – driven crimping. Capable of handling square – shaped wires ranging from 0.3 to 16mm², it offers a stripping length adjustment from 6 to 30mm. For the terminal tube, it can process insulators with a length less than 11mm and conductors with a length less than 20mm, ensuring precise processing for a wide variety of wire and terminal combinations.

2. User – Centric Operation

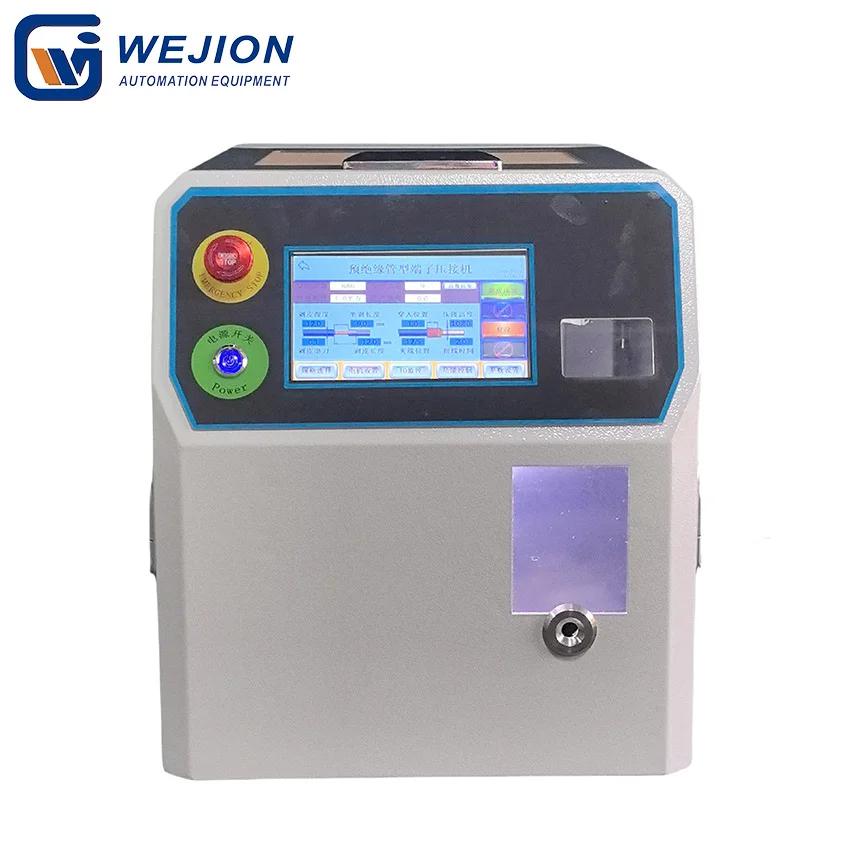

   Controlled via a touchscreen interface, the TF-16 simplifies the operation process. Operators can easily adjust the penetration distance of terminals electrically, and save and recall various parameter settings, significantly reducing setup time for different production tasks. The automatic trigger start function enables immediate operation, enhancing the overall workflow efficiency.

3. Quality – Assured Crimping
   With an air supply requirement of 0.5 – 0.6Mpa working in tandem with servo – driven crimping, the machine provides stable and consistent crimping force. This ensures that each terminal is crimped securely onto the wire, minimizing the risk of loose connections and guaranteeing reliable electrical performance. The combination of electric and pneumatic operations allows for fine – tuning of the processing parameters, adapting to different wire gauges and terminal specifications.

Features

1. Hybrid Electric – Pneumatic Design
   The TF-16 primarily relies on electric operations, complemented by pneumatic components, creating a versatile and flexible working system. This hybrid design allows the machine to perform complex tasks with high precision, such as accurate wire stripping and precise terminal crimping, while also being able to handle different levels of force requirements through the pneumatic elements.

2. Compact and Enclosed Structure

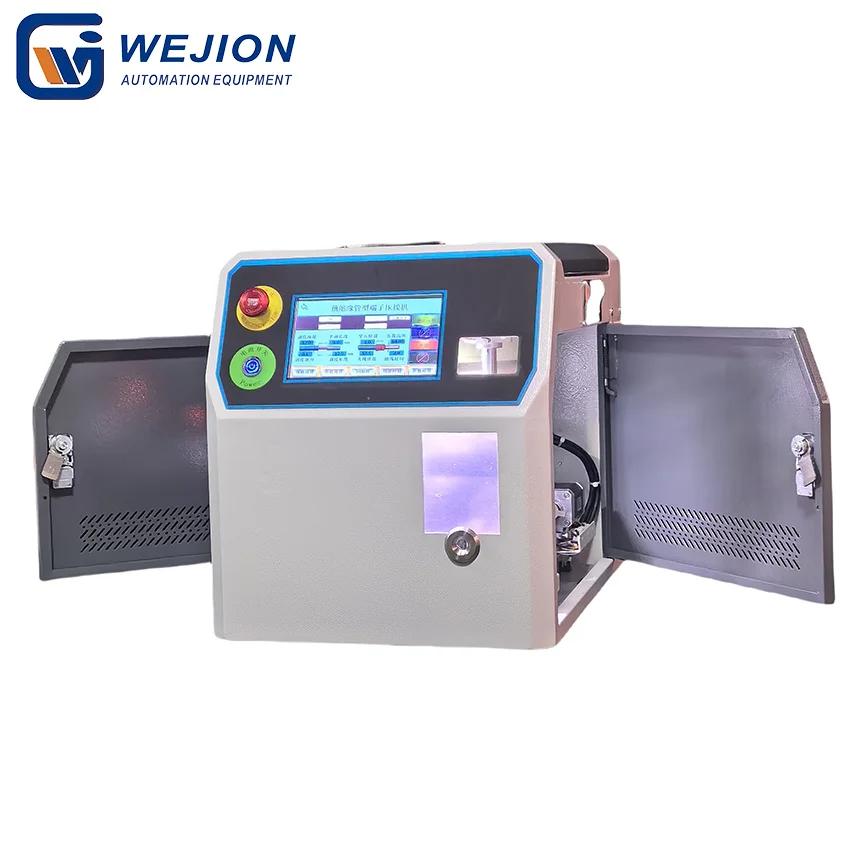

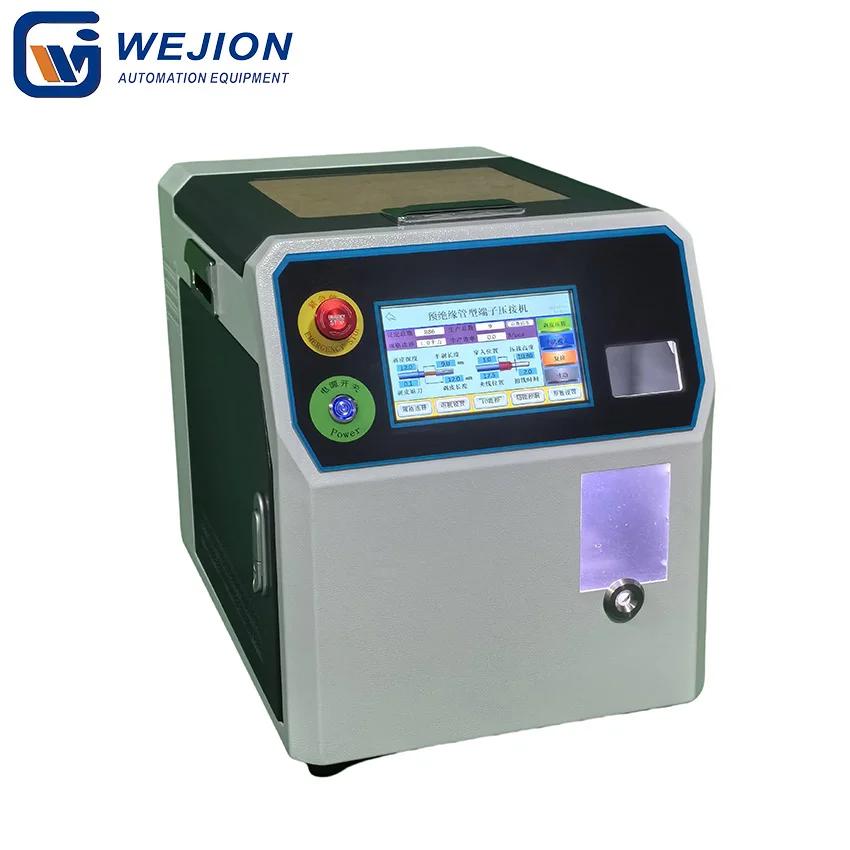

   Featuring a fully enclosed exterior design, the TF-16 not only enhances safety by preventing accidental contact with moving parts but also protects the internal components from dust and debris, prolonging the machine’s lifespan. Its compact dimensions (365242.5cm) and a weight of 72kgs make it space – efficient, easily fitting into various production line layouts without occupying excessive floor space.

3. Agile and Safe Operation
   The machine’s mechanical structure is designed for maximum flexibility, enabling quick and smooth movements during the wire and terminal processing. Safety features are integrated into its operation, ensuring that operators can work without the risk of injury. The automatic trigger start mechanism not only speeds up the production process but also operates within a safe framework, further enhancing the overall safety of the production environment.

4. High – Efficiency Production
   The TF-16 is engineered to deliver high – speed processing, significantly increasing production efficiency. By automating multiple steps in the pre – insulated terminal crimping process, it reduces manual labor requirements and shortens the production cycle. Whether used for small – batch custom production or large – scale manufacturing, the machine maintains a high level of productivity, making it a cost – effective solution for businesses seeking to improve their output while maintaining quality standards.
