Product Introduction:

Functions

1. Integrated Automated Processing

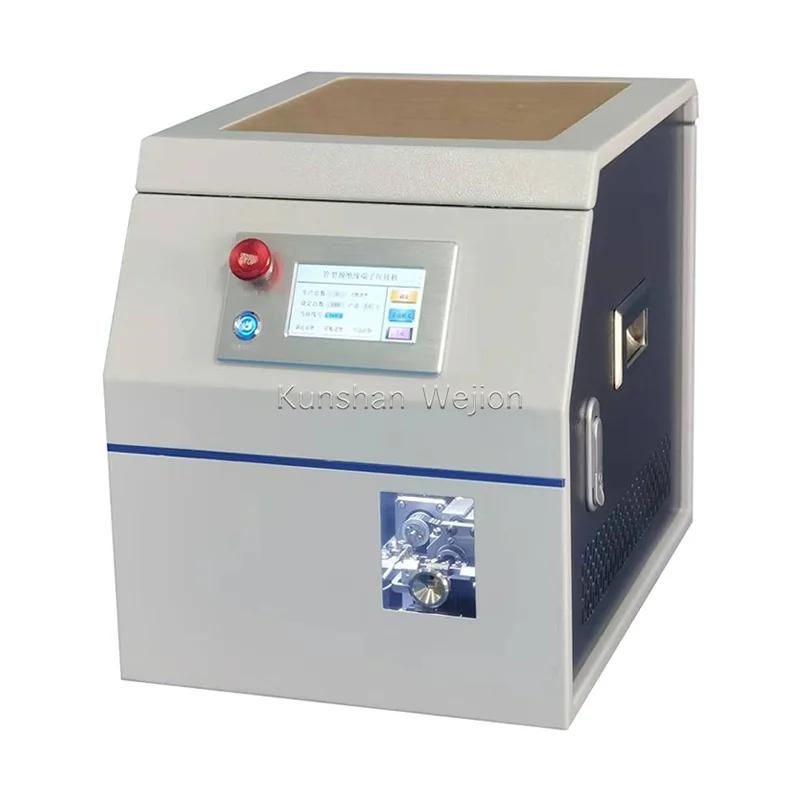

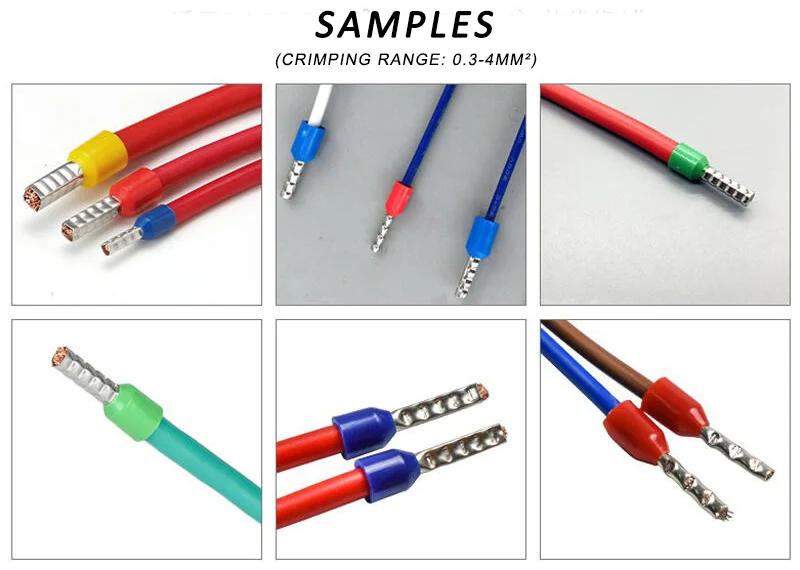

   The TF – 04 is a high – quality automated machine that combines vibration plate feeding, wire stripping, twisting, terminal insertion, and crimping into one process. It handles square – shaped wires ranging from 0.3 – 4.0mm², with a maximum stripping length of 17mm and tube length of 12mm, ensuring comprehensive wire and terminal processing.

2. User – Friendly Operation
   Controlled via a touchscreen interface, it allows easy parameter adjustment such as stripping length and crimping force. Settings can be saved and recalled, streamlining production. The automatic trigger start feature enables quick operation, enhancing workflow efficiency.

3. Quality – Driven Performance
   With an air supply requirement of 0.6 – 0.8Mpa, the machine delivers stable crimping pressure. Its integrated functions reduce human errors, significantly lowering the production defect rate while maintaining a high processing speed.

Features

1. Hybrid Pneumatic – Electric Design
   The combination of pneumatic and electric components offers diverse operation modes, providing flexibility to adapt to different production needs and wire – terminal specifications.

2. Safe and Visible Structure
   The fully enclosed exterior design ensures safety, while the front – facing transparent operation area allows operators to monitor the process clearly, enabling precise control and immediate issue detection.

3. Compact and Precise Build
   Engineered with a compact and meticulous mechanical structure, the TF – 04 (35mm W * 45mm L * 40cm H, 58kgs) saves workspace while delivering accurate and high – quality crimping results. Its agile movements further enhance operational safety and efficiency.
