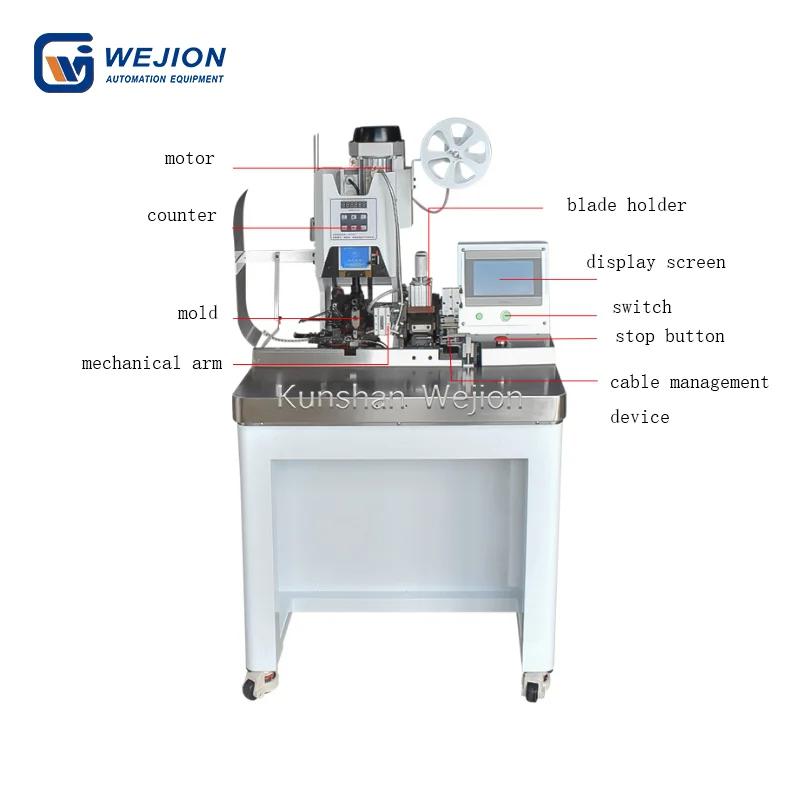

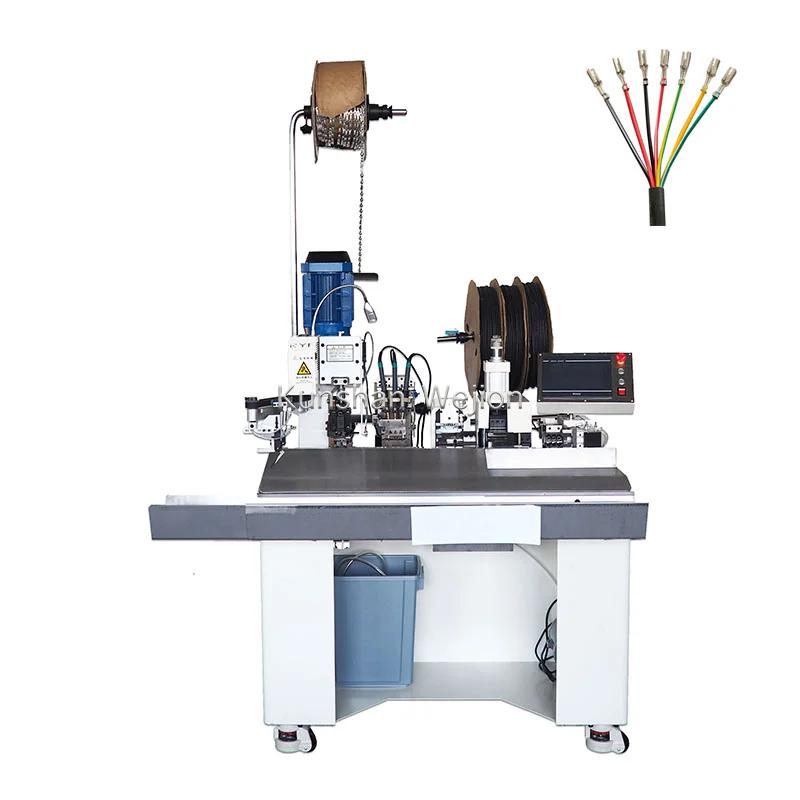

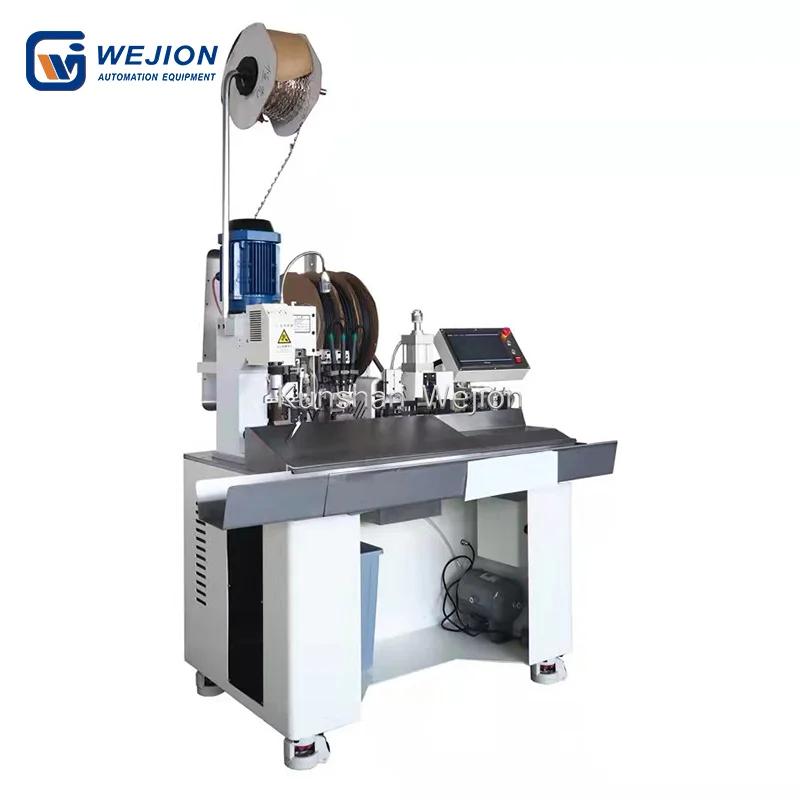

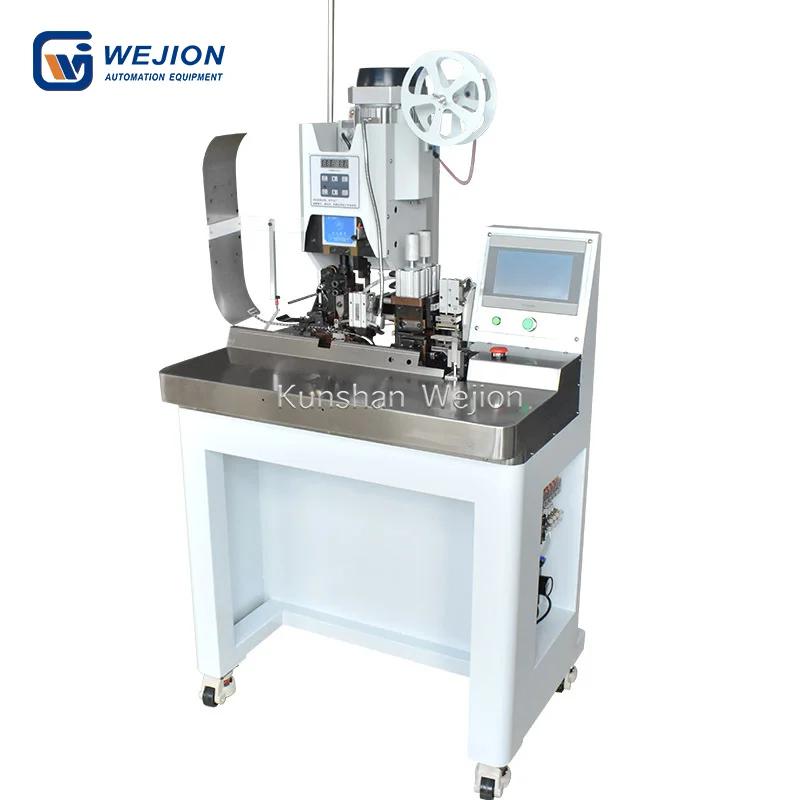

Product Introduction:

Functions

1. Comprehensive Wire Handling
   The TM – HTB01 processes wires ranging from 2 – 18P with a maximum of 12 cores, accommodating wire diameters from Φ0.8 – 4mm. It offers specific stripping lengths: 15mm for 2 – 4 cores, 25mm for 5 – 10 cores, and over 32mm for sheathed wires. A 2T crimp force ensures secure terminal connections.

2. High – Speed Performance
   With a processing rate of 5500 pieces per hour for 12 – core wires and a rapid 0.2 – second crimping speed, it significantly boosts productivity. Its adjustable speed feature caters to diverse production demands.

3. Intelligent Control
   Equipped with advanced control systems, it enables precise positioning and wide – range speed adjustment. The touchscreen interface allows for easy parameter setting, facilitating efficient operation across various wire processing tasks.

Features

1. Compact and Efficient Design
   The machine’s 精巧 design results in a small footprint (8555135cm), optimizing workshop space. Quick and effortless replacement of process materials reduces production downtime.

2. Quiet and Energy – Efficient Operation
   Powered by a variable – frequency motor, the TM – HTB01 operates silently while consuming only 1500W of power. Its compatibility with AC220/110V (50 – 60Hz) power supplies enhances versatility.

3. Reliable Components and Long – Lasting Durability
   Featuring HIWIN guide rails and AIRTAC pneumatic components, it delivers stable, efficient, and durable performance. The electrical control system, replacing traditional mechanical or electromagnetic clutches, minimizes wear, enabling long – term maintenance – free use.

4. User – Friendly and Quality – Driven
   The intuitive touchscreen interface requires no specialized training, making it accessible to all operators. It reduces labor intensity, improves production efficiency, and ensures consistent product quality, effectively minimizing defect rates.
