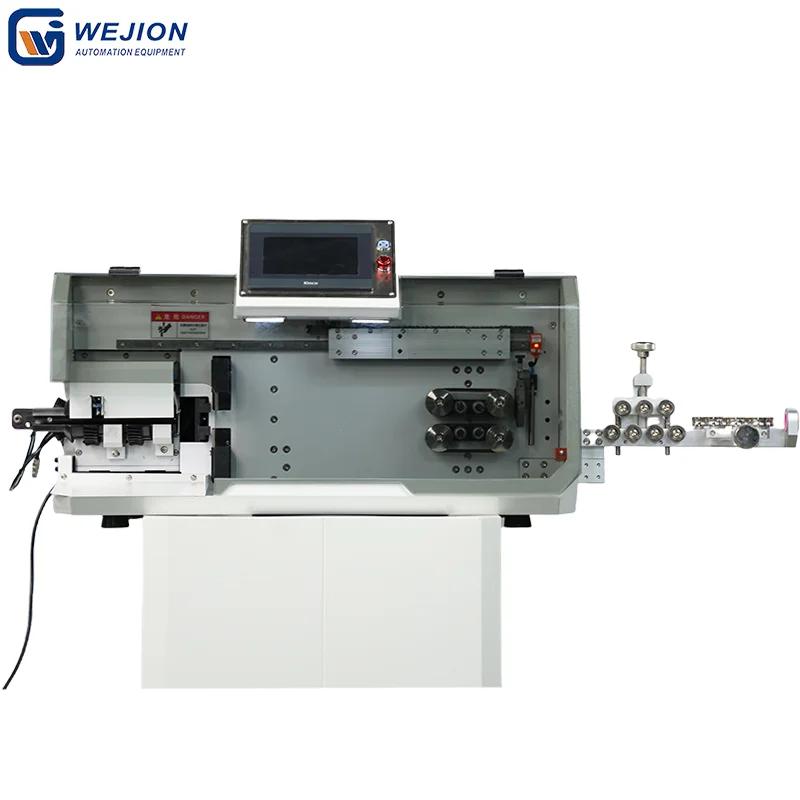

CS-3030WD Automatic Wire Bending And Cutting Machine Manufacturer

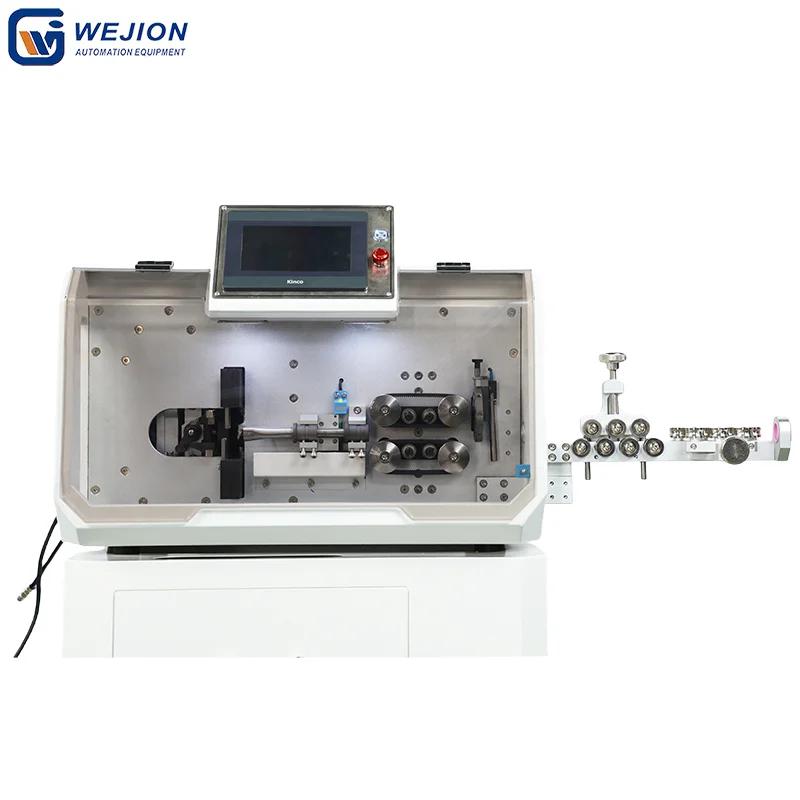

CS-3030WD Automatic Wire Bending And Cutting Machine Manufacturer

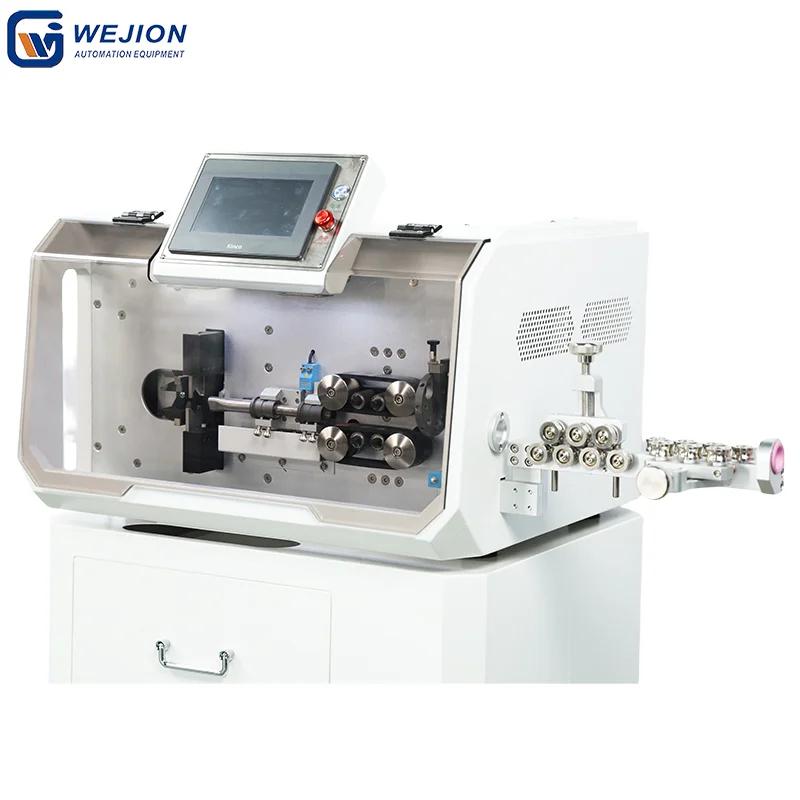

CS-3030WD Automatic Wire Bending And Cutting Machine Manufacturer

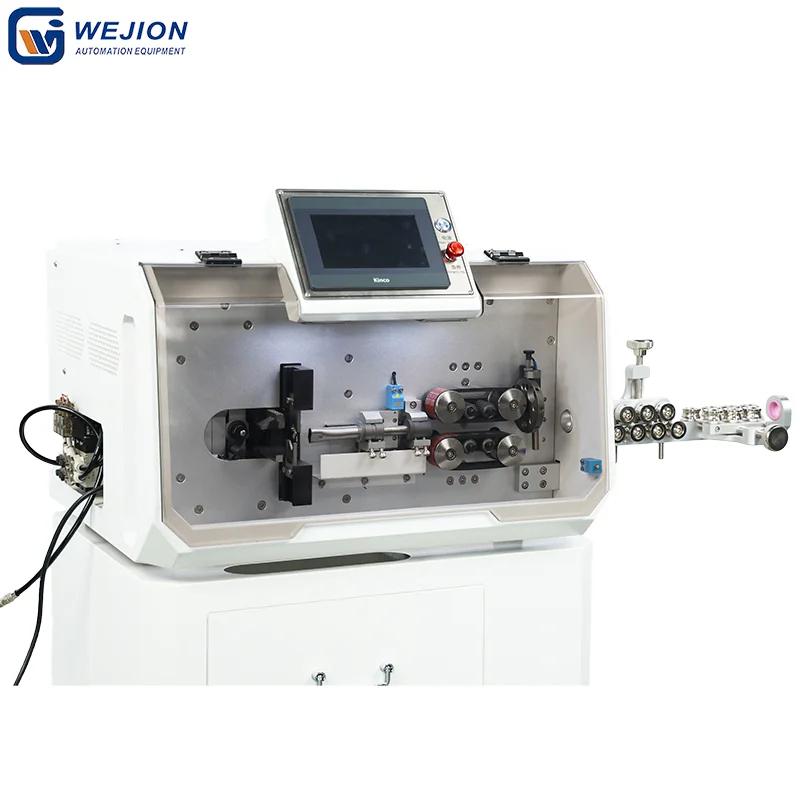

CS-3030WD Automatic Wire Bending And Cutting Machine Manufacturer

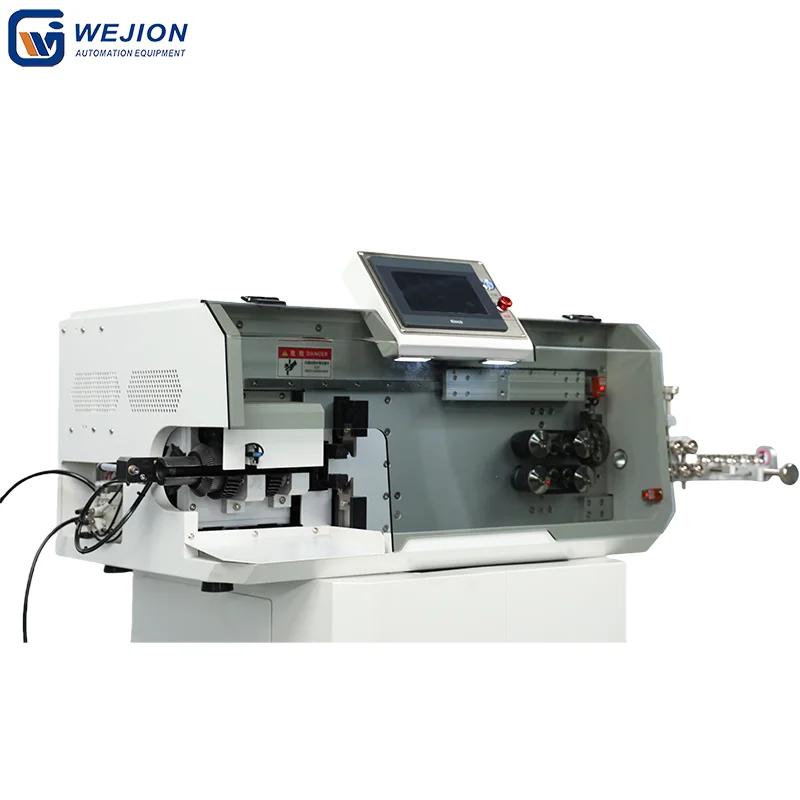

CS-3030WD Automatic Wire Bending And Cutting Machine Manufacturer
CS-3030WD Automatic Wire Bending And Cutting Machine Manufacturer
CS-3030WD Automatic Wire Bending And Cutting Machine Manufacturer
Product Introduction:

Description

Functions

  1. Designed for automatic wire stripping, cutting, and bending of single-core wires.

  2. Performs multi-axis bending (X+/X−, Y+/Y−, Z+/Z−) for complex 3D wire shapes.

  3. Uses electric bending with digitally adjustable angles for precise control.

  4. Combines cutting, stripping, and bending into one continuous process to improve efficiency.

  5. Suitable for wires without elastic recovery after bending.

  6. Supports high-precision production with stable servo-driven operation.

  7. Ideal for industrial automation, wire harness manufacturing, and electrical assembly lines.

Features

  1. 3D Bending Capability – Supports multi-directional bending along X, Y, and Z axes for flexible wire shaping.

  2. Digital Adjustment – Enables accurate, repeatable bending angle control through numerical settings.

  3. Integrated Processing – Wire cutting, stripping, and bending completed in a single automated cycle.

  4. High Precision – Maintains tight cutting tolerance and consistent bending accuracy.

  5. User-Friendly Operation – 7-inch color touchscreen for intuitive control and easy parameter setup.

  6. Servo-Driven System – Ensures smooth feeding and stable motion with high repeatability.

  7. Belt Feeding Design – Protects wire surfaces from marks and scratches during feeding.

  8. Modular Structure – Allows quick connection of accessories and easy maintenance.

  9. Optional System Integration – Supports MES system, IoT connection, middle stripping, inkjet marking, and external alarm devices.

  10. Customizable Design – Accepts non-standard customization for special wire types or production requirements.

  11. Upgrade-Ready Platform – Modular design allows future function expansion and software upgrades.

  12. Compact & Efficient Build – Combines strong performance with a space-saving footprint for factory environments.

Technical Data

ModelCS-3030WD
Display7-inch HMI touch screen
FunctionSingle-core wire stripping and bending
Bending MethodElectric bending, digital adjustment
Bending DirectionX+/X−, Y+/Y−, Z+/Z−
Wire TypeSingle-core wire
Processing Range0.75 – 30 mm²
Cutting Length1 – 999,999.99 mm
Minimum Total Stripping LengthTotal length − front strip − rear strip > 70 mm
Cutting AccuracyWithin 0.002 × L (L = cutting length)
Stripping LengthFront full strip: 1–20 mm; Rear full strip: 1–20 mm
Max. Wire DiameterΦ14 mm
Blade MaterialHigh-quality imported high-speed steel
Productivity1000 pcs/hour (depending on wire length and size)
Drive System8-wheel drive (feeding by stepper motor, blade by servo motor); optional servo feeding
Feeding MethodBelt feeding, no marks or scratches; with front stripping pressure function
Height AdjustmentDigital pressure roller adjustment
Power SupplyAC 220V 50/60Hz (optional 110V 50/60Hz)
Air Supply0.5 – 0.85 MPa clean air
Dimensions (L*W*H)60 *48 *55 cm
Net Weight120 kg
