Product Introduction:

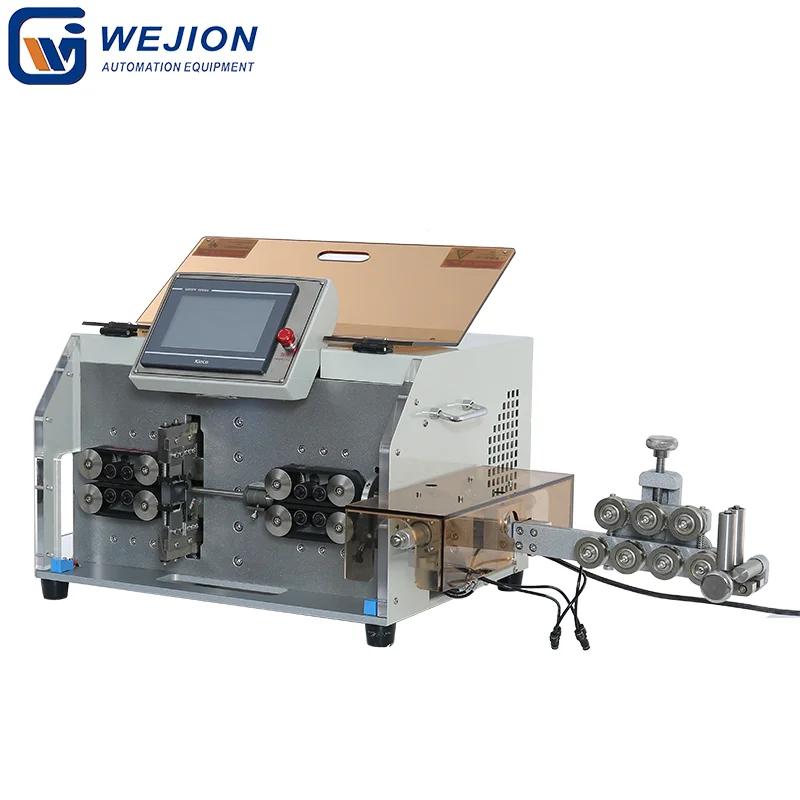

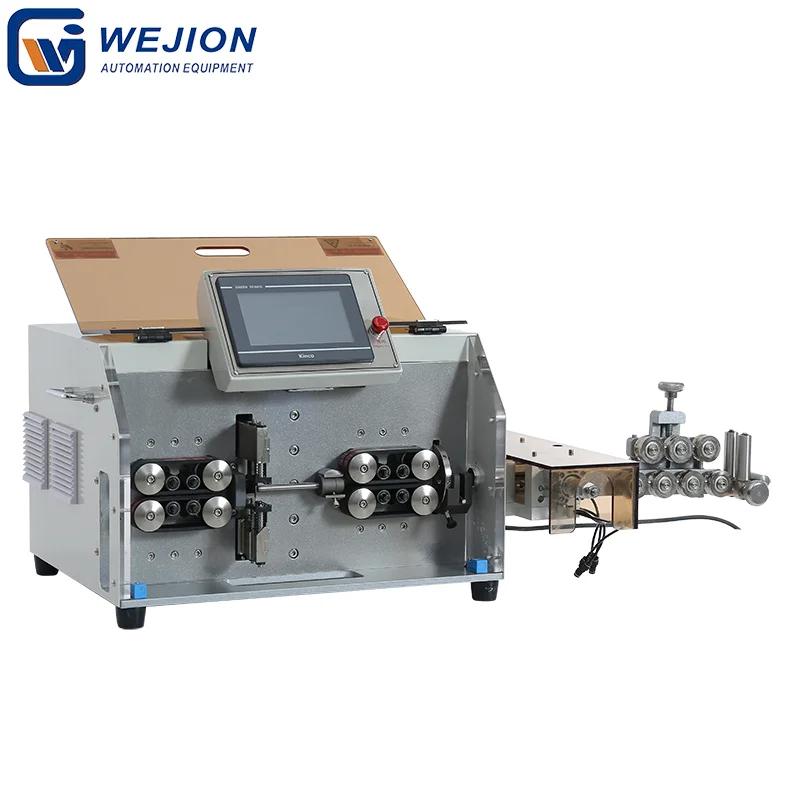

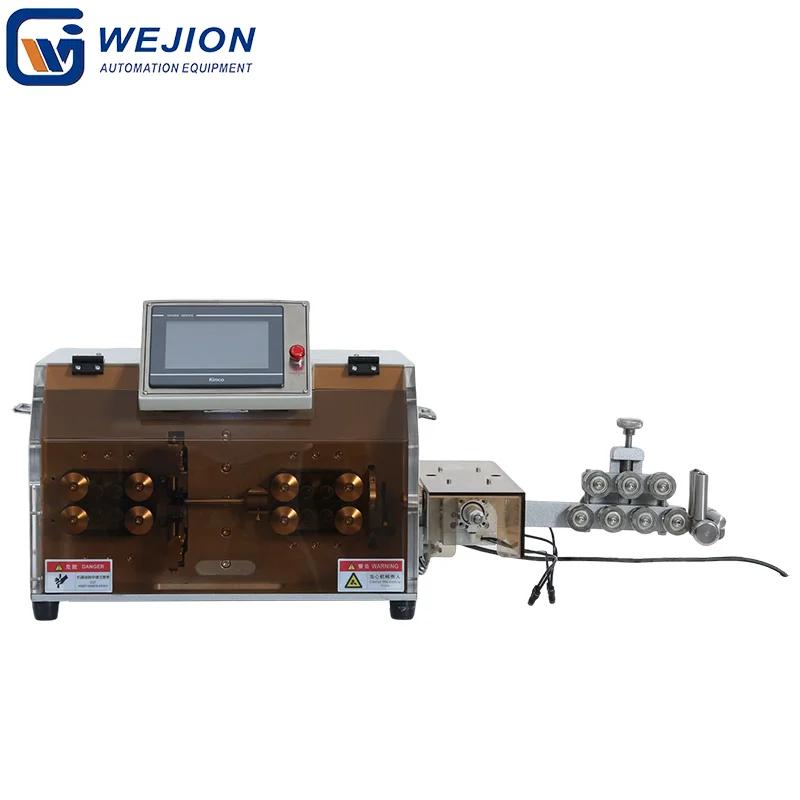

The CS-8030HZ 30mm² wire cutting stripping machine with center-stripping capability represents an advanced industrial solution for processing heavy-gauge cables in demanding electrical manufacturing applications. This specialized equipment combines end-stripping functionality with precise mid-span insulation removal in a single automated operation, significantly enhancing production efficiency for complex wiring requirements. Its robust construction features a dual-stage stripping mechanism incorporating primary rotary blades for complete end termination preparation and secondary precision blades for controlled intermediate stripping, achieving ±0.2mm repeatability across adjustable stripping lengths from 50-300mm. The machine’s material handling system utilizes motorized roller feed technology with 500kg clamping force, complemented by anti-slip tungsten carbide grippers and automatic cable straightening to ensure consistent processing of 30mm² conductors.

A key differentiator is the sophisticated center-stripping functionality, offering programmable mid-point positioning with ±1mm accuracy and adjustable window lengths ranging from 10-150mm, while maintaining depth control to prevent conductor damage. The system processes both stranded (up to 1260/0.2mm) and solid conductors at cycle times of 8-12 seconds, handling various insulation types including XLPE, PVC and rubber with maximum continuous conductor temperature tolerance of 90°C. Operation is managed through a 7″ HMI touchscreen interface with recipe storage capabilities, supported by PLC-controlled motion sequences that incorporate error detection for conductor nicking or incomplete strips, along with production counting and fault logging features.

Designed for heavy-duty applications in power distribution panel manufacturing, renewable energy systems, and marine electrical installations, the machine meets stringent safety standards including CE-certified interlocks, Category 3 emergency stop circuitry, and IP54 protection rating compliance with IEC 60204-1. Optional enhancements such as laser measurement verification, integrated marking systems, conductor twisting attachments, and in-line resistance testing modules further expand its capabilities for specialized production requirements. This industrial-grade solution delivers reliable, high-precision processing of 30mm² cables while maintaining conductor integrity throughout multiple stripping operations, making it particularly valuable for complex harness production where intermediate connection points are required without compromising wire quality or production throughput.
