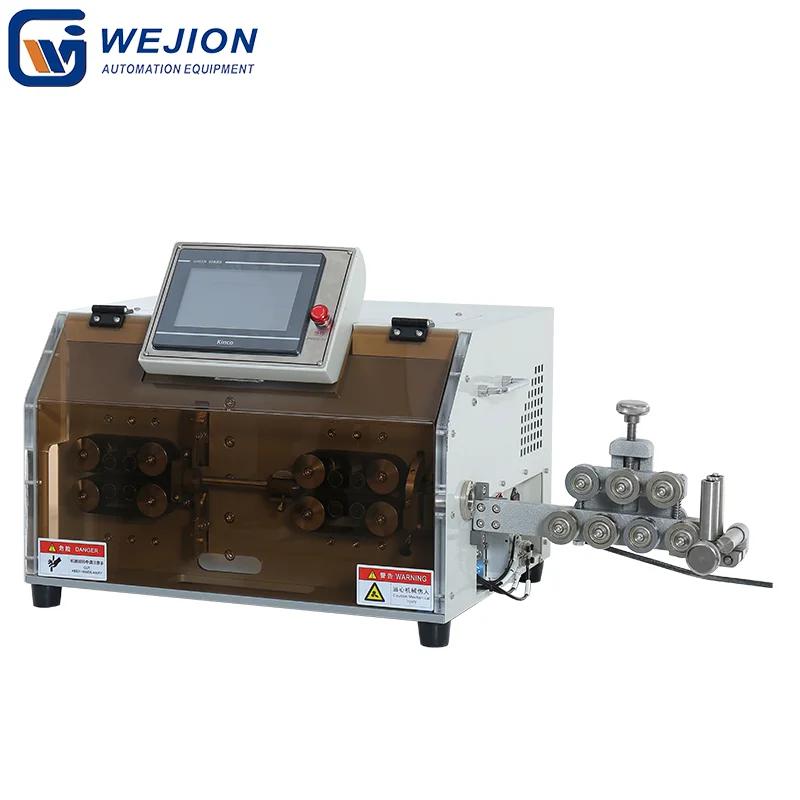

CS-8030 Automatic cable wire cutting and stripping machine for 30mm2 sheath cables

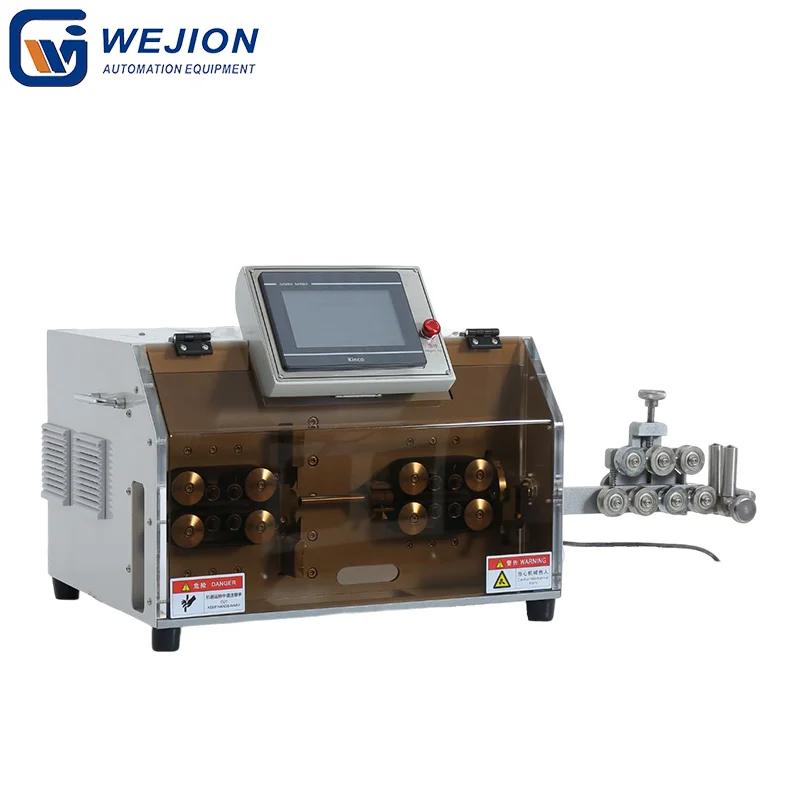

CS-8030 Automatic cable wire cutting and stripping machine for 30mm2 sheath cables

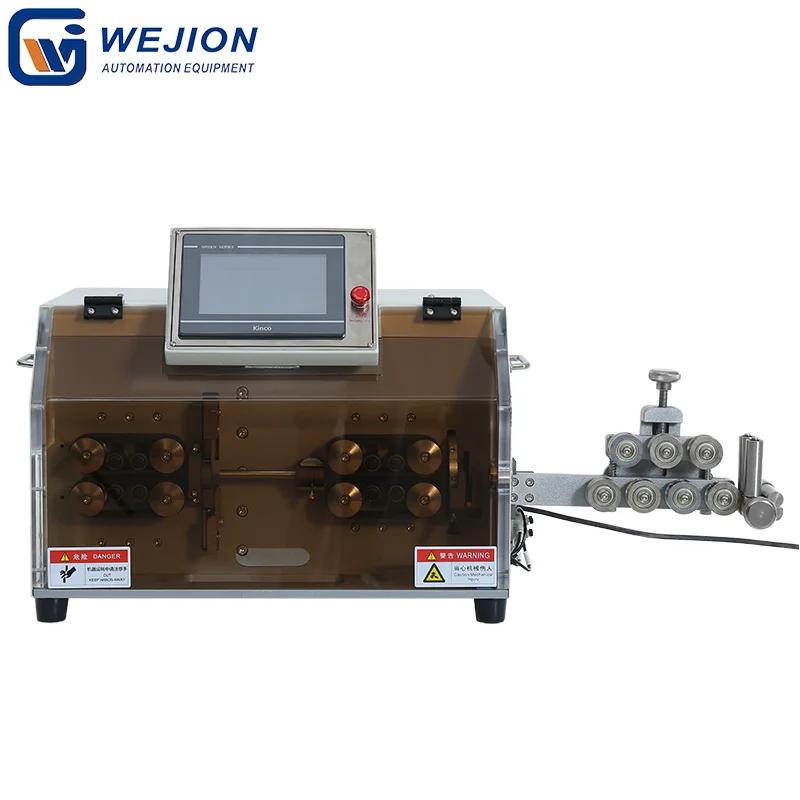

CS-8030 Automatic cable wire cutting and stripping machine for 30mm2 sheath cables
CS-8030 Automatic cable wire cutting and stripping machine for 30mm2 sheath cables
CS-8030 Automatic cable wire cutting and stripping machine for 30mm2 sheath cables
CS-8030 Automatic cable wire cutting and stripping machine for 30mm2 sheath cables
Product Introduction:

Description

Functions:

1. Stripping the Sheath: The core function of the 30-square sheath wire stripping machine is to strip the outer sheath of the cable, exposing the internal metal conductor. It is designed for cables with a specification of 30 square millimeters, precisely removing the outer sheath without damaging the inner core wire.
2. Adjustable Stripping Length: The operator can set the desired stripping length. This function allows for flexible adjustment based on specific needs, making it adaptable to different application scenarios.
3. Automatic Feeding and Cutting: The stripping machine typically comes with an automatic feeding system, which automatically feeds the cable and precisely performs the sheath stripping, reducing manual intervention and ensuring production efficiency.
4. Precise Control: Equipped with high-precision tools and control systems, the machine ensures the accuracy of the stripping process, avoiding damage to the internal conductors. It can adapt to different cable materials by adjusting pressure and cutting depth.
5. Adapts to Different Sheath Materials: The machine is capable of stripping various types of sheath materials, such as PVC, PE, rubber, etc., offering strong adaptability.
6. Increased Production Efficiency: The equipment uses a high-efficiency electric drive system, allowing for fast and stable large-scale cable stripping operations, making it suitable for industrial production environments.
7. Waste Collection: The stripping machine usually comes with a waste collection device that automatically collects the stripped sheath and other waste materials, reducing clutter in the working area.
8. Safety Protection Features: The equipment is equipped with safety protection devices, such as emergency stop buttons and safety shields, ensuring the operator’s safety.

Features:
1. This machine is a fully automatic wire cutting and stripping machine, suitable for processing cables from 0.5 to 30 mm².
2. It uses a belt feeding system instead of the traditional wheel feeding method, improving feeding accuracy and ensuring no pressure marks on the wire surface.
3. The machine can be optionally equipped with an automatic winding device and a coding machine. The winding device is primarily used for processing long cables and can place the wire neatly into the winding tray.

ModelCS-8030
Available Wire SizeAWG12 – AWG3
Conductor Cross-Section1-30mm²
Cutting Length1-99999mm
Cutting Length Tolerances≤(0.002*L) mm
Stripping LengthHead 10-200mm;Tail 10-80mm
Conduit Diameterφ16mm
Production RateOne cores wire, 2300pcs/h; Multi cores cable, 800pcs/h
Display Screen7 inch touch screen
Wire Feed MethodBelt feeding
Drive Method16 wheels drive
Power Supply220V/110V
Power1200W
Weight115kg
Dimensions72.5*62.5*66.5cm
