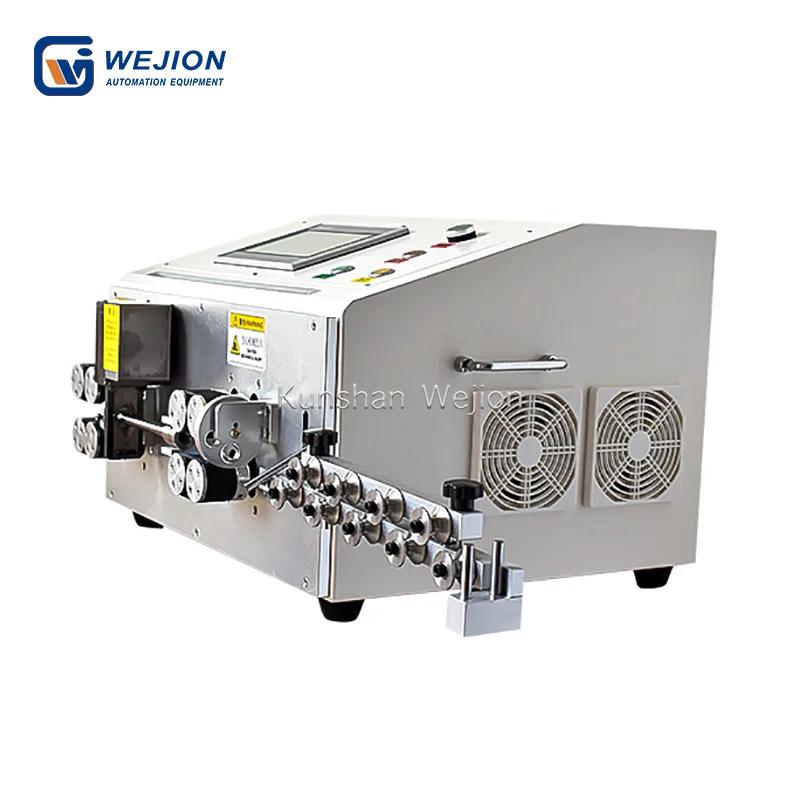

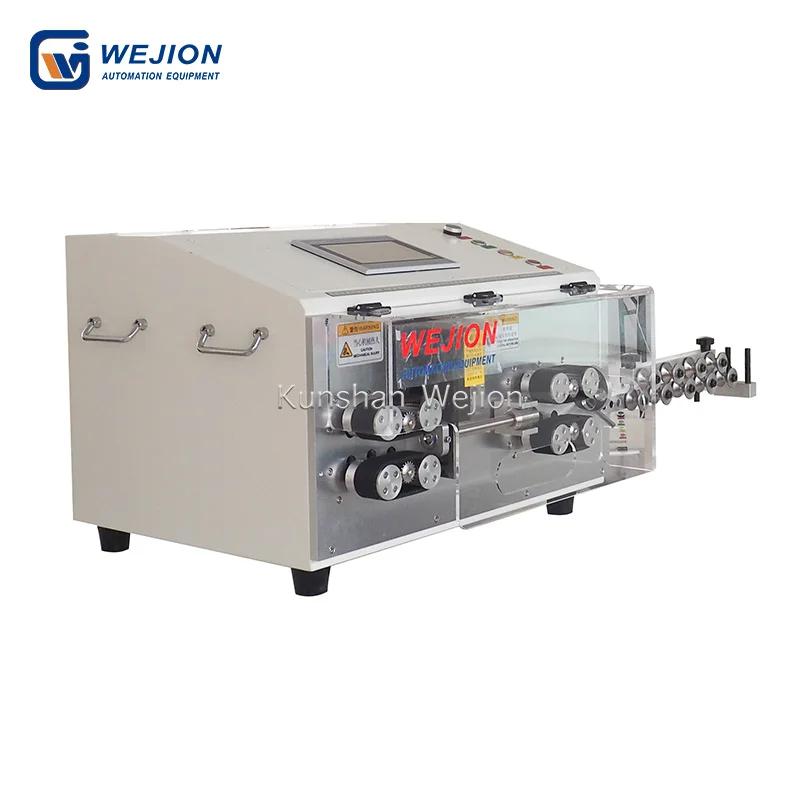

Product Introduction:

Functions & Features:

1. 8-wheel drive and double-sided pressure wheel design
*This machine adopts 8-wheel drive and is equipped with double-sided pressure wheels, with strong power and high-precision transmission system. Through 8-wheel drive, it can provide more uniform wire delivery and stable stripping effect.
*The double-sided pressure wheel design ensures that the cable will not be displaced or deflected during the stripping process, improving processing accuracy and stability.
*The belt feeding system ensures that the cable surface is not damaged, and can smoothly feed the cable to improve processing efficiency. This system is widely used in various fields, such as military, medical, communication, power cable, sheathed wire, soft and hard wire processing.
2. Automatic adjustment of the inlet and outlet wheels
*The clamping force of the inlet and outlet wheels can be directly adjusted by the program, without manually adjusting the wheel pressure, reducing manual operation errors and improving work efficiency.
*Automatic lifting function of the outlet wheel: When stripping the wire head, the outlet wheel can be automatically lifted up to avoid collision with the wire, thereby increasing the length range of wire head stripping.
*The lifting height of the outlet wheel can also be set by the program, which is convenient for adjusting the stripping area according to different cable specifications to ensure efficient and accurate processing.
3. Color touch screen operation interface
*The color touch screen operation interface is intuitive and clear, easy to operate, and the parameters are clearly displayed. Users only need simple training to quickly get started.
*The touch screen interface makes the operation more user-friendly, and the parameter setting and adjustment are more flexible. Users can directly view parameters such as stripping length and speed on the screen.
*Three-layer stripping program: The device supports three-layer stripping, or when the stripping length is long, the stripping process can be completed in up to three times. This function can improve the stripping accuracy of long cables and ensure that each layer of stripping can be done accurately.
Provide 200 sets of program memory function, which can store the processing parameters of different wires. Users can quickly switch different processing programs according to needs, simplifying operations and improving production efficiency.
4. Additional functions and customized options
*Wire splitting jigs can be installed: By installing wire splitting jigs, the wire splitting requirements of specific cables can be met and the processing accuracy can be improved.
* Scratching jig: You can install a scratching jig to perform precise slashing operations on some special cables.
* Inkjet printer: If you need to mark or print on the stripped cable, the device supports the installation of an inkjet printer to facilitate the printing of batch identification, production date and other information.
