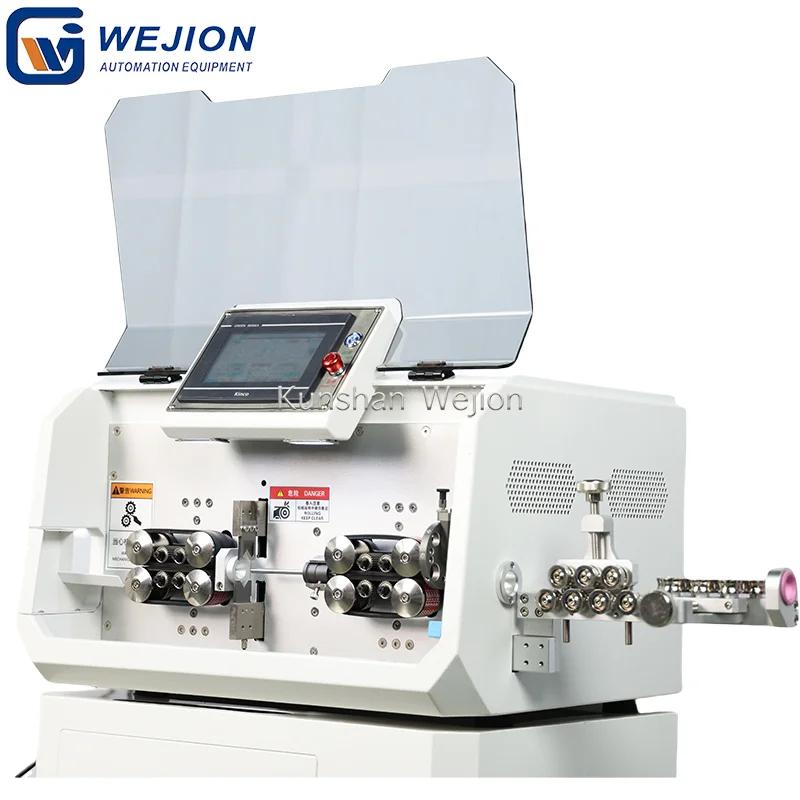

CS-3030G Automatic high-speed PVC automatic cable stripper(φ0-12mm)(0.75-16mm²)

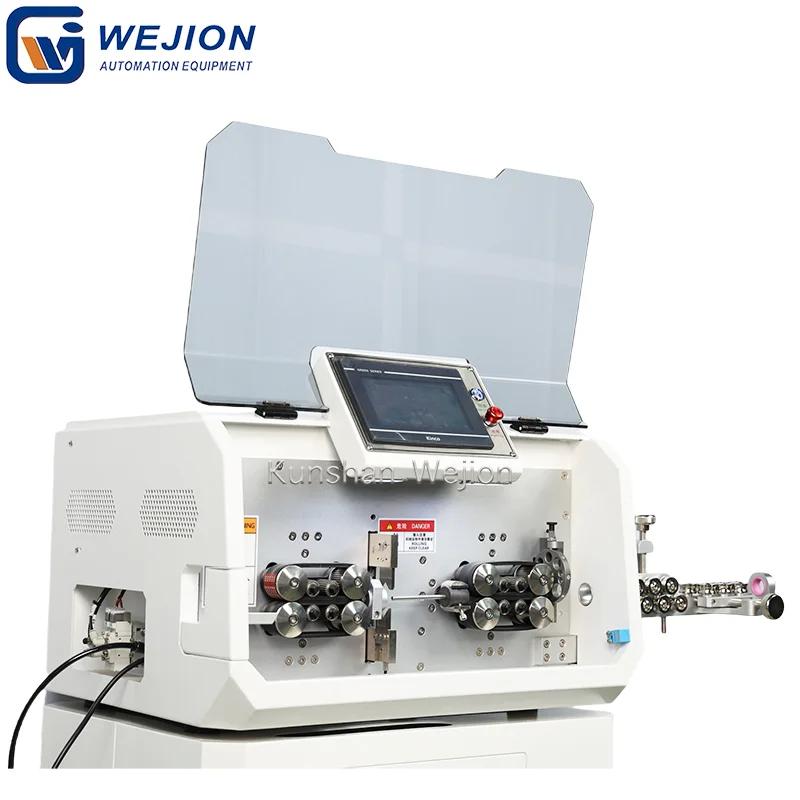

CS-3030G Automatic high-speed PVC automatic cable stripper(φ0-12mm)(0.75-16mm²)

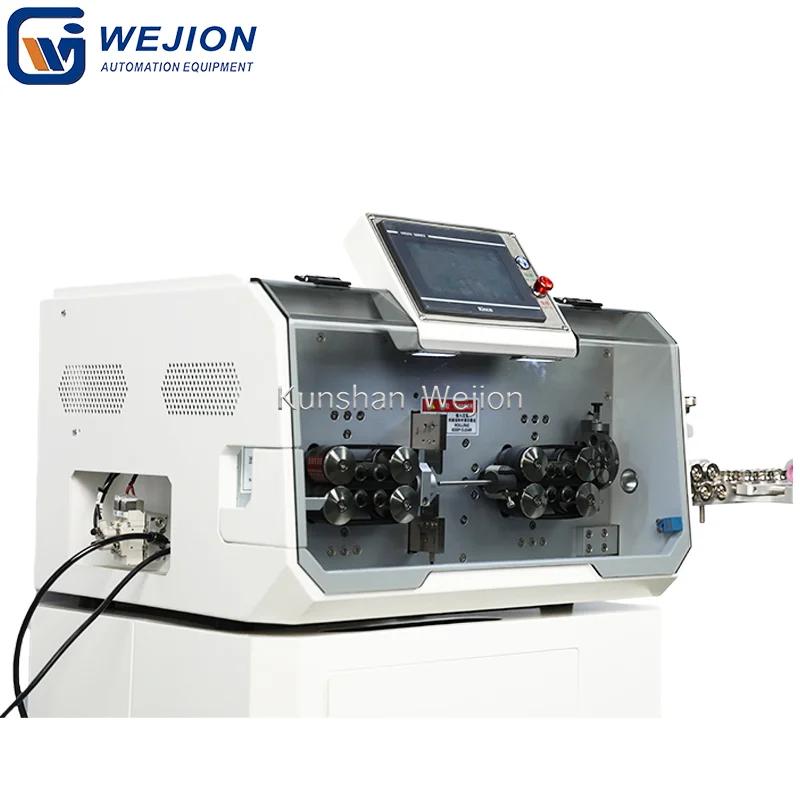

CS-3030G Automatic high-speed PVC automatic cable stripper(φ0-12mm)(0.75-16mm²)

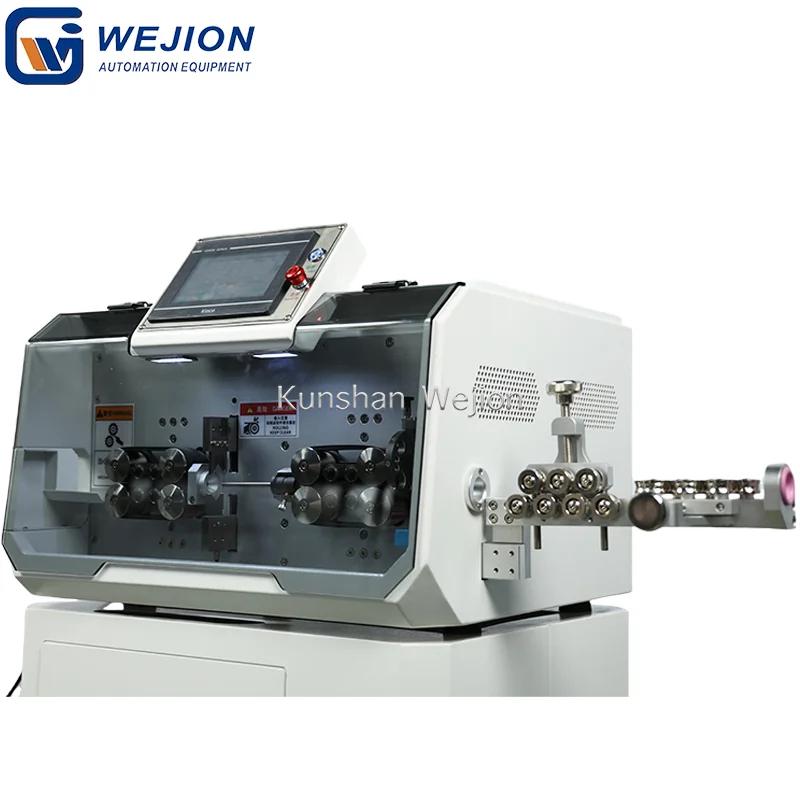

CS-3030G Automatic high-speed PVC automatic cable stripper(φ0-12mm)(0.75-16mm²)

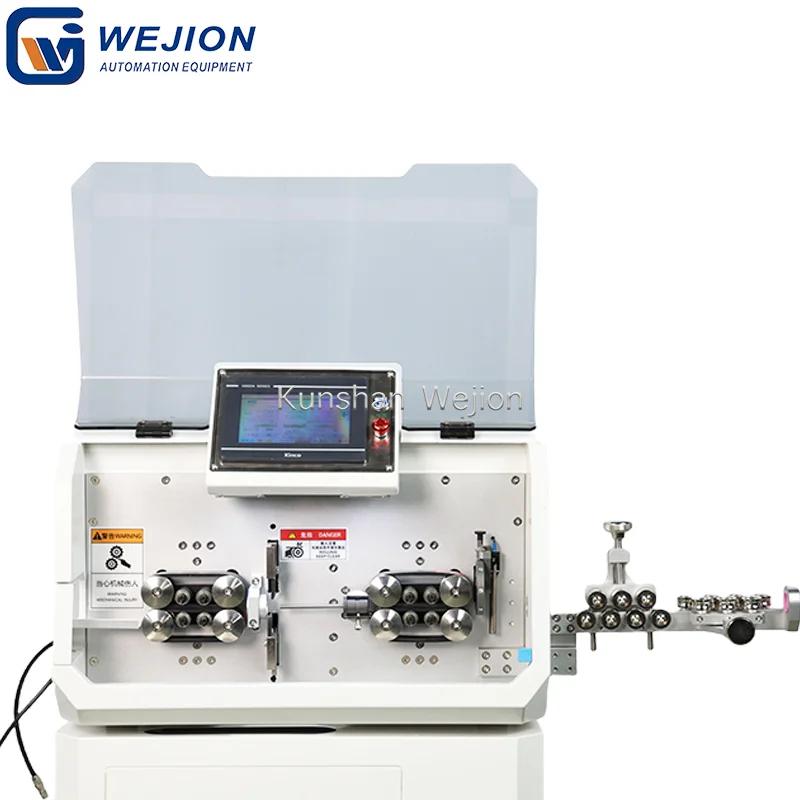

CS-3030G Automatic high-speed PVC automatic cable stripper(φ0-12mm)(0.75-16mm²)
CS-3030G Automatic high-speed PVC automatic cable stripper(φ0-12mm)(0.75-16mm²)
CS-3030G Automatic high-speed PVC automatic cable stripper(φ0-12mm)(0.75-16mm²)
Product Introduction:

Description

Functions:

  1. As a versatile wire harness processing device, it streamlines wire processing workflows by handling a wide range of wire types, including single-core wires, multi-core cables, shielded cables, electric wires, and PVC wires, eliminating the need for separate equipment for different wire varieties.

  1. Features core automated fixed-length cutting and stripping capabilities, replacing manual operations to reduce human errors and improve processing efficiency.

  1. Ensures precise processing, with the ability to cut wires to specific lengths and strip insulation with varying degrees (full or half stripping at both front and rear ends) to meet strict quality standards in wire harness manufacturing.

  1. Adopts a belt feeding system that gently conveys cables without leaving indentations or scratches, preserving the integrity of the wires.

  1. Equipped with a 7-inch human-machine interface to simplify parameter setting and monitoring, allowing operators to adjust settings like pressure wheel height digitally based on different wire specifications.

  1. Adapts to common industrial power and air source conditions, with optional power supply configurations to fit different regional electrical standards, ensuring stable operation in various workshop environments.

Features:

  1. Boasts user-friendliness, with a 7-inch color touch screen providing an intuitive operation experience that allows even less experienced operators to get started quickly, reducing training time.

  1. Features a modular design: modular interfaces enable seamless connection with various accessories and peripheral equipment, expanding functionality according to production needs.

  1. The modular design also supports future upgrades, allowing the machine to adapt to new processing requirements without needing a complete replacement.

  1. Offers extensive customization options, with a range of optional configurations (such as MES systems, IoT systems, fixed-point coding, and middle stripping) to let users tailor the machine to their specific production management or processing needs.

  1. Provides non-standard customization solutions for special cable types that require unique processing, making it a flexible choice for both standard and specialized wire processing scenarios.















Technical Data

ModelCS-3030G
Display Method7-inch Human-Machine Interface
FunctionsAutomatic fixed-length cutting and stripping for single-core wires, multi-core cables, shielded cables
Wire TypesSingle-core wires, multi-core cables, shielded cables, electric wires, PVC, etc.
Processing Range0.75 — 16 square millimeters
Cutting Length1mm – 999999.99mm
Cutting ToleranceWithin 0.002*L (L = cutting length)
Stripping LengthFront full stripping: 1 – 200mm; Front half stripping: 1 – 1500mm; Rear full stripping: 1 – 100mm; Rear half stripping: 1 – 300mm
Maximum Allowable Diameterφ12
Tool MaterialHigh-quality imported high-speed steel
Productivity (PCS/hour)5500 PCS/hour (varies according to wire length and size)
Driving Mode16-wheel drive (feeding stepper motor, tool rest servo motor); Optional servo feeding
Wire Feeding ModeBelt feeding, no indentation or scratch on cables (with stripping and pressurizing function)
Lifting Operation ModeDigital adjustment of pressure wheel height
Power SupplyAC220V 50/60Hz; Optional 110V 50/60Hz
Air Source0.5Mpa clean air source
Dimensions (LWH)680*605*520mm
Net Weight90kg
RemarksExtreme cutting capacity: 30 square millimeters
