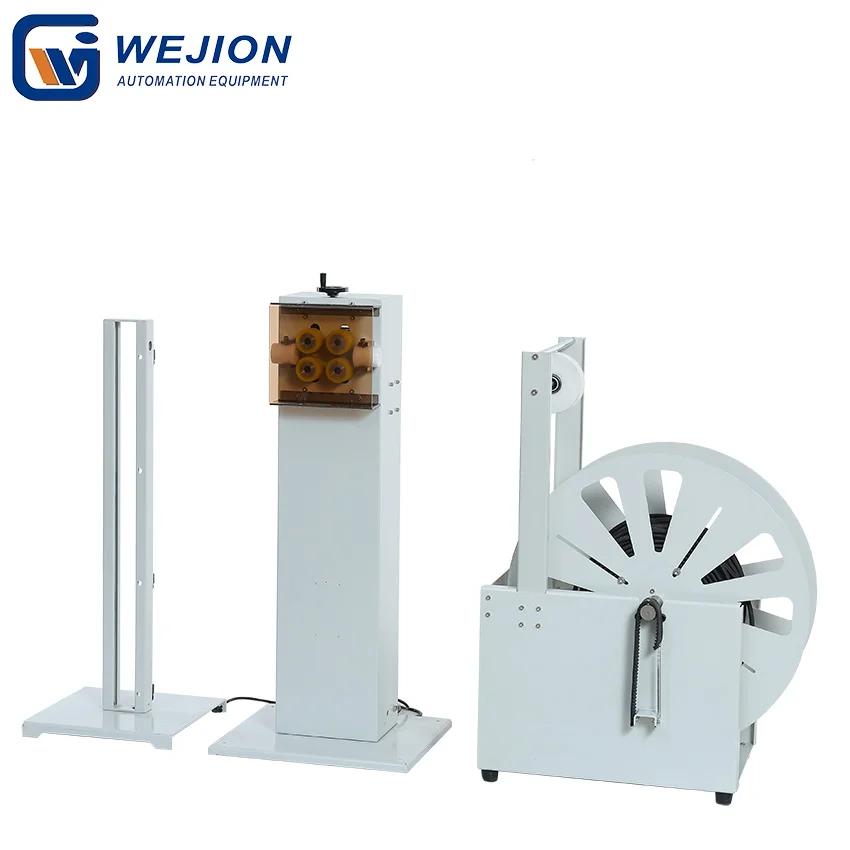

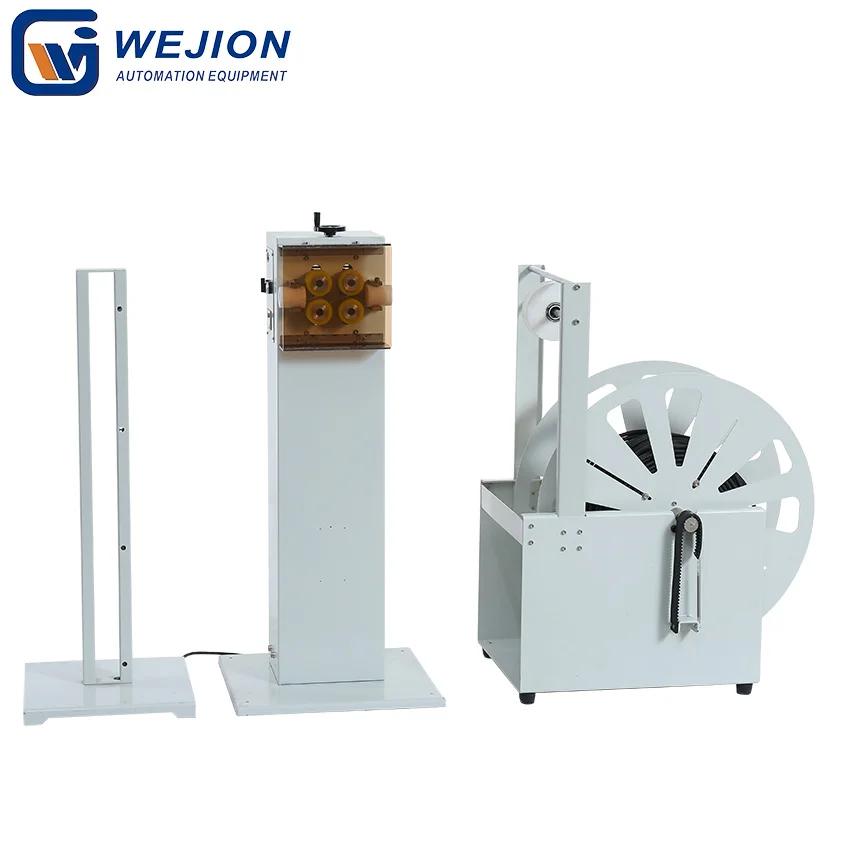

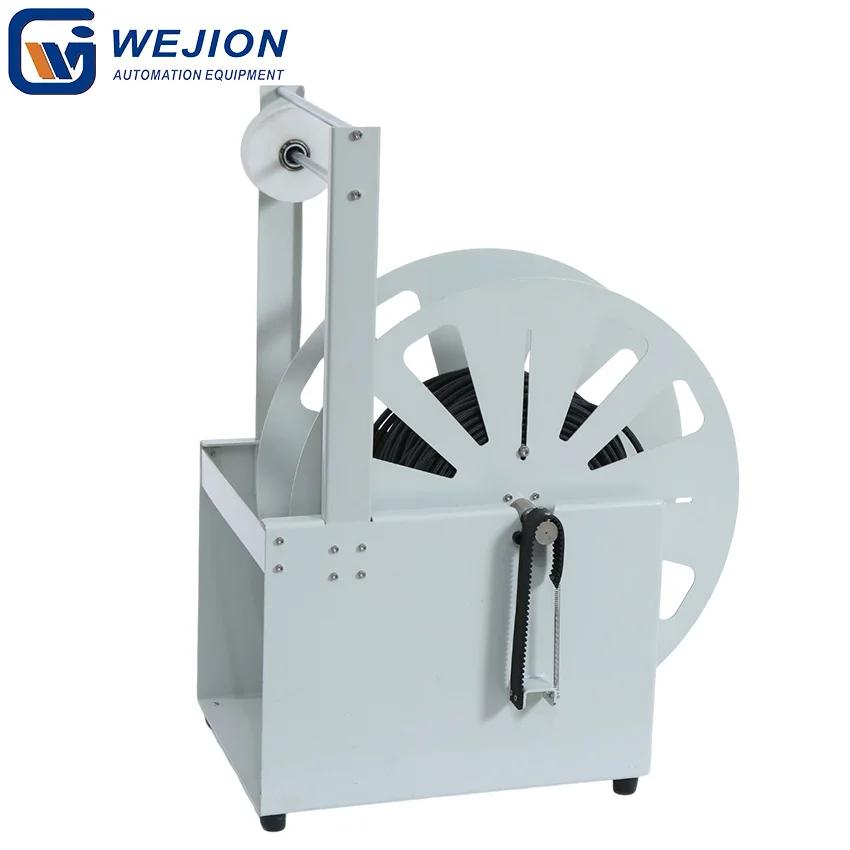

Functions

1. Wire and Spool Adaptability

• Compatible Spool Specifications: Supports spools with an outer diameter ≤700mm, through-hole diameter of 180-300mm, and height of 300mm. Installed vertically, it fits unpackaged wires (e.g., bare wires, simply bundled wires).

• Installation Method: Fixes spools via the inner hole of the wire bundle, requiring no additional fixtures. Suitable for non-standard wire reels (e.g., hand-wound spools).

• Load and Size Limitations: Maximum load of 20KG, compatible with wires up to 650mm in maximum diameter (may refer to spool outer diameter or wire coil diameter). Only suitable for small and lightweight spools.

2. Basic Wire Pay-Off Function

• Manual Operation Mode: Unpowered, relying on manual or rear-end equipment traction for wire feeding. Suitable for low-speed, small-batch scenarios (e.g., maintenance, laboratory manual processing).

• Simplified Structure Design: Pure mechanical support structure, providing only spool rotation function without complex components like motors or frequency converters.

Features

1. Lightweight and Portable

• Low Load Design: 20KG maximum load capacity, only suitable for lightweight spools such as electronic wires and thin-diameter cables to avoid overload deformation.

• Compact Vertical Structure: Vertical spool placement reduces horizontal space occupation, ideal for narrow workstations or temporary work environments, easy to move.

2. Convenient Installation and Maintenance

• Tool-Free Installation: Directly fixes spools through the wire inner hole, operable by a single person, suitable for non-standard spools (e.g., hand-wound reels).

• Power-Free and Maintenance-Free: Pure mechanical construction, no power supply required. Daily maintenance only involves cleaning the rotating shaft, with extremely low maintenance costs.

3. Cost-Effective

• Minimalist Construction: No automated components, low manufacturing cost. Suitable for small micro-enterprises, individual workshops, or temporary production needs with limited budgets.

4. Scene Limitations

• Speed and Load Restrictions: Unpowered design makes wire feeding speed dependent on manual labor, unable to handle large spools. Unsuitable for industrial-grade continuous production.

• Single Wire Type: Only supports unpackaged wires, unable to adapt to standard spools with outer packaging, with a narrow application range.
