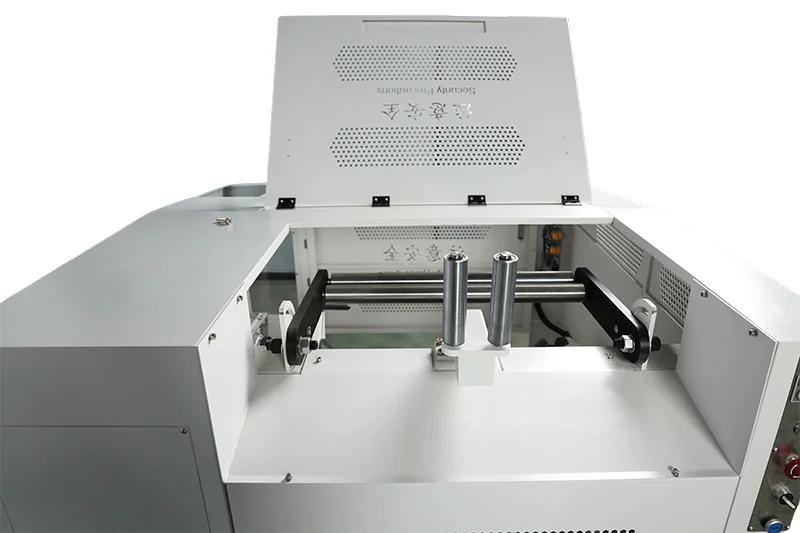

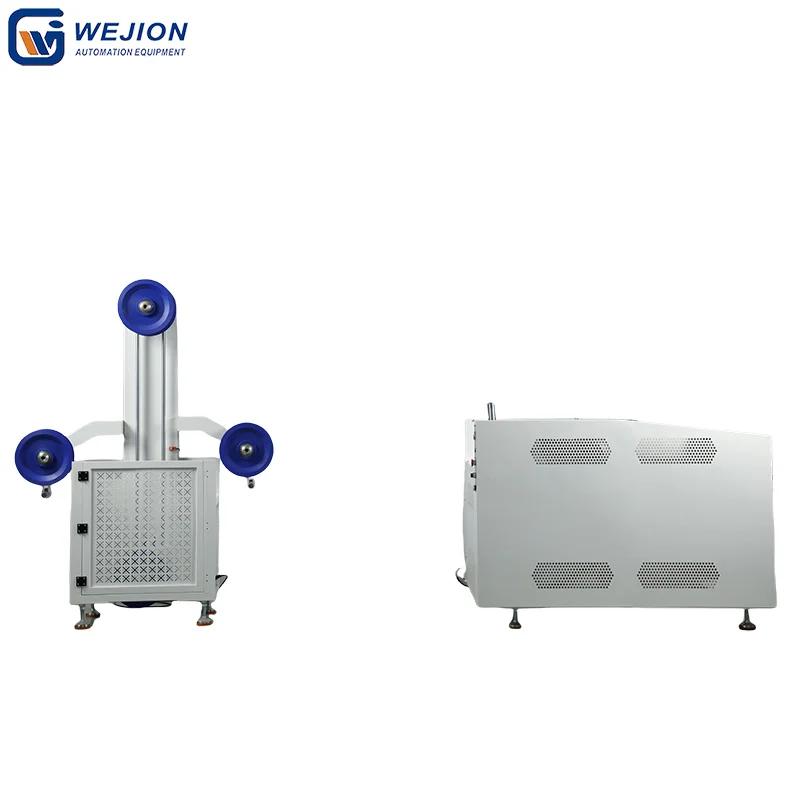

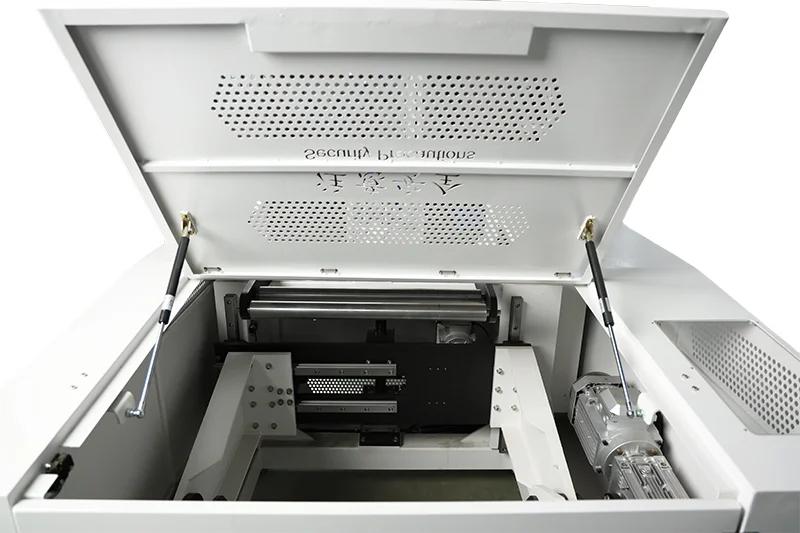

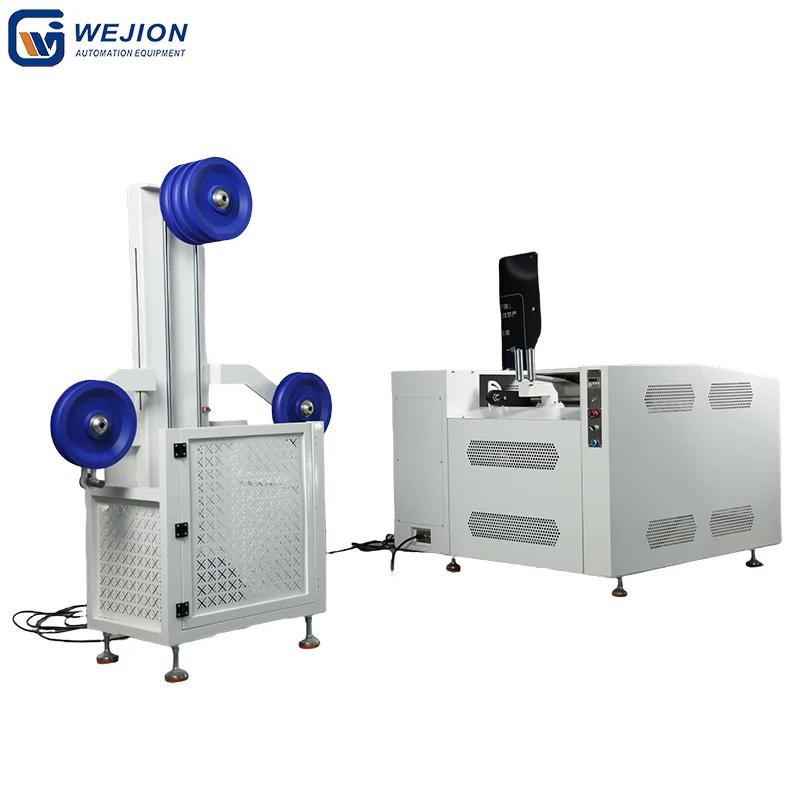

CP-F3780 Max. Load 800kg Heavy Duty Wire Payoff Stand
CP-F3780 Max. Load 800kg Heavy Duty Wire Payoff Stand
CP-F3780 Max. Load 800kg Heavy Duty Wire Payoff Stand
CP-F3780 Max. Load 800kg Heavy Duty Wire Payoff Stand
CP-F3780 Max. Load 800kg Heavy Duty Wire Payoff Stand
CP-F3780 Max. Load 800kg Heavy Duty Wire Payoff Stand
Product Introduction:

Description

Functions

  1. Efficient Automatic Wire Pay-off: Equipped with a gear motor and a vector frequency converter, it enables stable wire pay-off, which can be accurately synchronized with the computerized wire stripping machine, requiring no manual intervention in adjusting the pay-off speed.

  1. Convenient Wire Spool Operation: Supports electric lifting of wire spools, is compatible with wire spools of various specifications, and has a strong load-bearing capacity, meeting the wire pay-off needs of different wires.

  1. Flexible Tension Control: The tension can be adjusted by changing the number of counterweights. The tension wheel set is reasonably designed to ensure uniform and stable tension during the wire pay-off process.

Features

  1. Sturdy and Durable Structure: The main frame is made of high-quality carbon steel through sheet metal bending and welding, featuring an attractive appearance and reliable strength.

  1. Precise and Intelligent Speed Regulation: Relying on the stepless speed regulation of the frequency converter, combined with the height sensing of the wire storage wheel and the speed feedback of the potentiometer, it realizes automatic and precise speed control.

  1. Strong Adaptability: Compatible with wire spools of various sizes, and can be matched according to the specific needs of customers, meeting the wire pay-off scenarios of wires with different diameters and weights.

  1. Good Power Supply Adaptability: Supports three-phase five-wire 380V±10 power supply, is suitable for 50/60Hz power supply environment, and is equipped with a dedicated power cord as standard, ensuring convenient use (Note: The 380V power cable and on-site lighting lamps need to be installed by the customer in accordance with requirements).

  1. Smooth Online Collaboration: When used with the main machine, collaborative work can be realized by installing an online signal cable, ensuring a coherent and efficient production process.

ModelCP-F3780 (Fully Enclosed Protection)
ApplicationShaft-mounted Wire
Max. Load Capacity800Kg
Wire Spool Outer Dia.300-800mm
Through-hole Dia. (Wire Spool Inner Dia.)60-140mm
Wire Spool Height (Wire Spool Width)300-700mm
Net Weight400KG
Motor Power2.2KW
Driving MethodThree-phase Motor + Reducer
Rated Rot. Speed1450 rpm
Max. Rot. Speed2200 rpm
Installation MethodDouble Chuck Top Type
Wire Spool Material TypeWooden Drum, Plastic Drum / Iron Drum
Placement MethodChuck Top
Speed Control MethodAdaptive Stepless Speed Regulation
Max. Wire Dia.30mm
Protection TypeFully Enclosed Protection
Overall Dimensions1600*400*1200mm
Packaging Weight500KG
