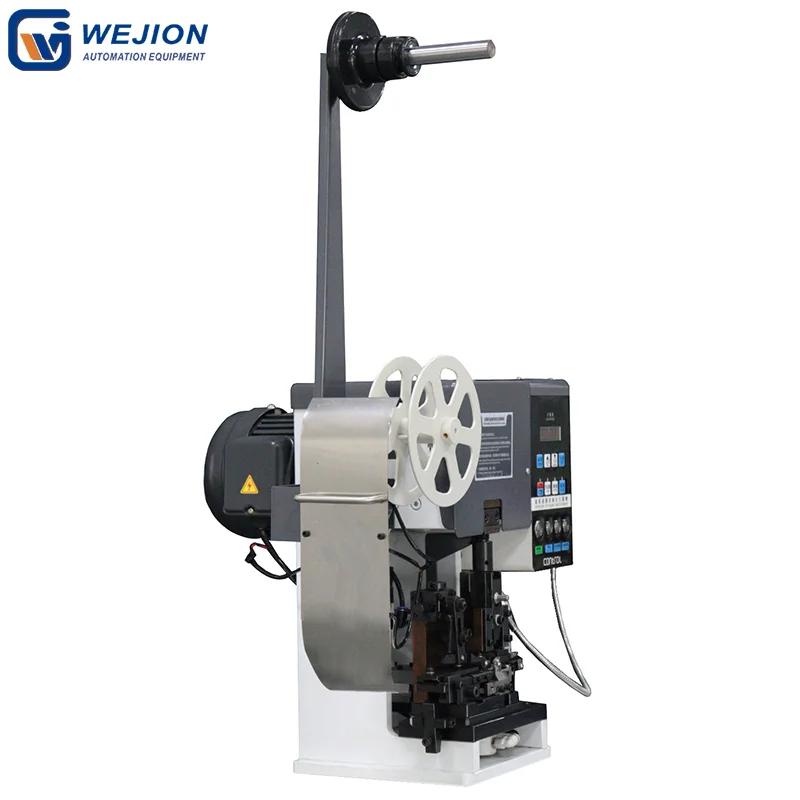

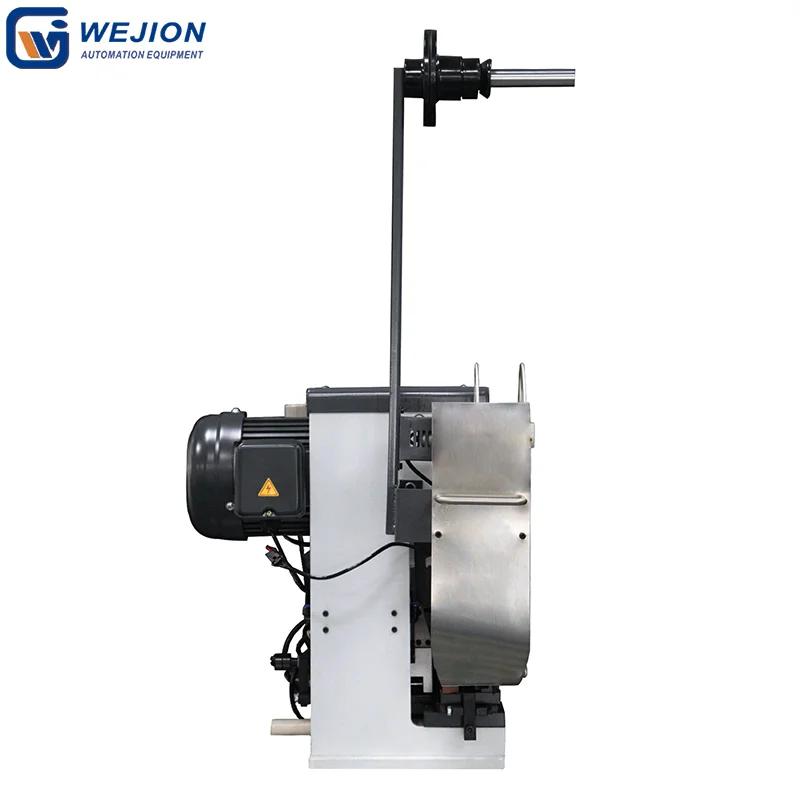

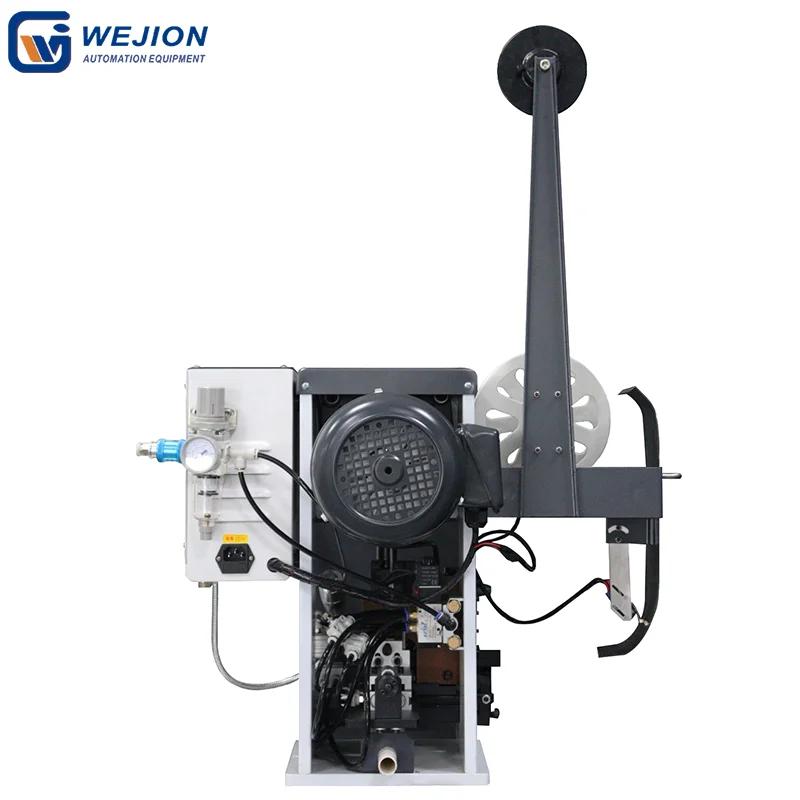

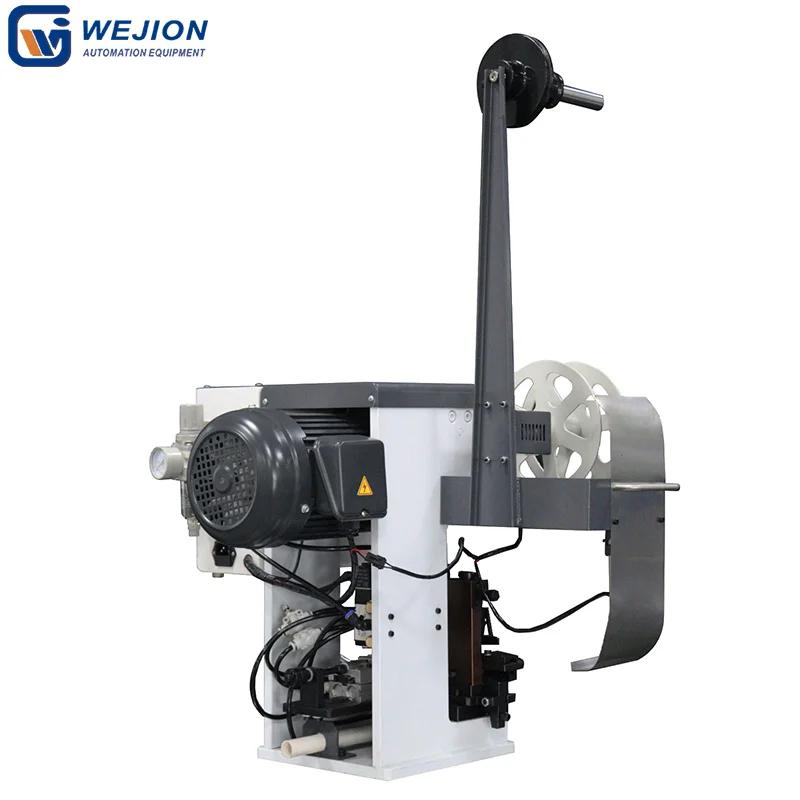

TSC-1.5T Semi-automatic multicores wire stripping and crimping machine
TSC-1.5T Semi-automatic multicores wire stripping and crimping machine
TSC-1.5T Semi-automatic multicores wire stripping and crimping machine
TSC-1.5T Semi-automatic multicores wire stripping and crimping machine
TSC-1.5T Semi-automatic multicores wire stripping and crimping machine
TSC-1.5T Semi-automatic multicores wire stripping and crimping machine
Product Introduction:

Functions:

1. Integrated Dual – Process Operation
The TSC – 1.5T series automatically completes wire stripping and terminal crimping in one continuous cycle. With advanced variable – frequency technology, it precisely controls the speed – change motor, enabling seamless processing of wires ranging from AWG36# to AWG20#. This efficiency eliminates the need for separate machines, streamlining production workflows.



2. Precision – Oriented Mechanisms
The machine’s wire stripping is driven by a pneumatic cylinder for rapid, accurate movements, ensuring consistent strip lengths between 1.0mm and 10.0mm. Meanwhile, the pressure crimping system, powered by a gear – reduction mechanism, delivers a stable 1.5T force, guaranteeing secure terminal connections.



3. Adaptive Speed Control
Equipped with an intuitive operation panel, the TSC – 1.5T allows users to adjust the overall processing speed. This feature accommodates operators of varying skill levels, enabling novices to work at a comfortable pace while maintaining high – speed performance for experienced users.



4. Efficient Scrap Management
After stripping, the machine uses a vacuum suction system to collect wire scraps, providing a clean, hassle – free solution that minimizes manual cleanup and enhances workplace tidiness.

Features:

1. Quiet and Energy – Efficient
Designed for silent operation, the TSC – 1.5T reduces noise pollution in production environments. With a power consumption of only 400W, it balances high – speed performance (up to 1.5T crimping) with low energy use, cutting operational costs.



2. Premium Pneumatic Components
The pneumatic system integrates top – tier components from renowned brands like Mindman (Taiwan), 气立可 (CHELIC), and SMC. These parts ensure long – term durability, precise operation, and compatibility with various horizontal – type terminal strips.



3. High – Precision Processing
Combining a high – accuracy control module and advanced transmission mechanisms, the machine maintains consistent alignment between terminals and stripped wires. This precision makes it ideal for handling ultra – thin and multi – core shielded wires, which require meticulous processing to prevent damage.



4. Versatile Power and Air Compatibility
Supporting both 220V and 110V power supplies (50 – 60Hz) and an air pressure range of 0.3 – 0.4MPa, the TSC – 1.5T adapts to diverse industrial settings worldwide. Its compact size (534083cm) and 70kg weight also allow for easy integration into existing production lines.
ModelTSC-1.5TTSC-2T
Wire diaAWG36#-AWG20#AWG36#-AWG16#
Crimp force1.5T2T
Air Source0.3~0.4mpa（please use dry and clean air）0.3~0.4mpa（please use dry and clean air）
Strip length1.0mm-10.0mm1.0mm-10.0mm
Power supply220/110V (50-60Hz)220/110V (50-60Hz)
Power400W750W
Size53*40*83cm53*40*83cm
Weight70kgs80kgs
