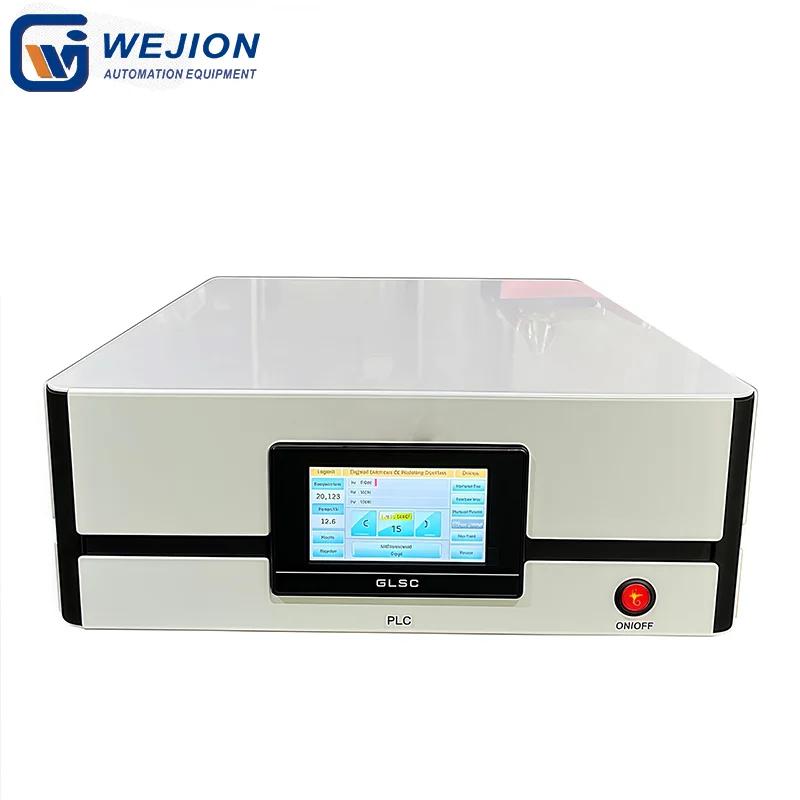

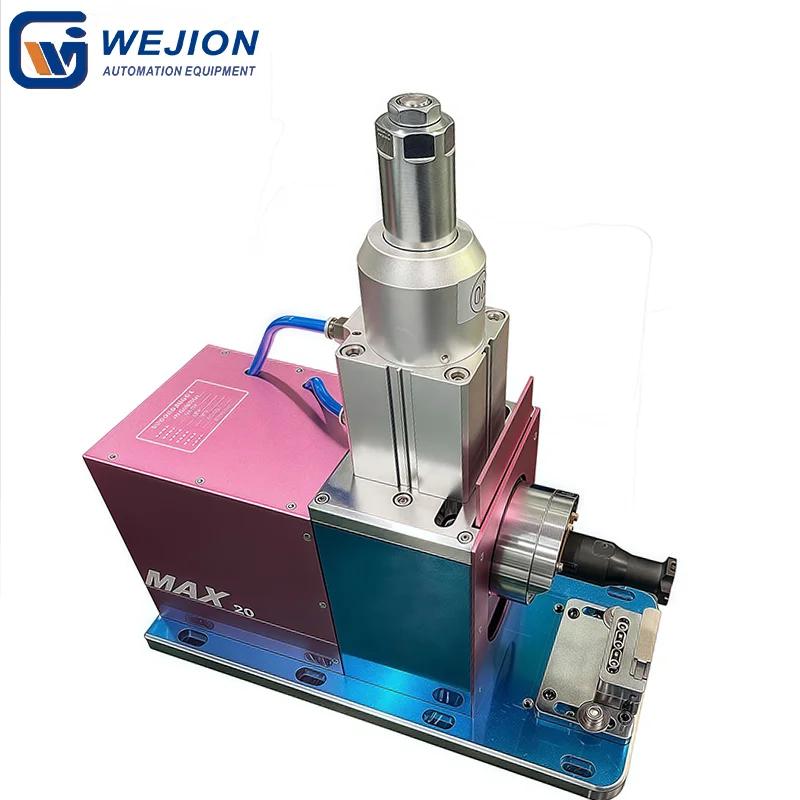

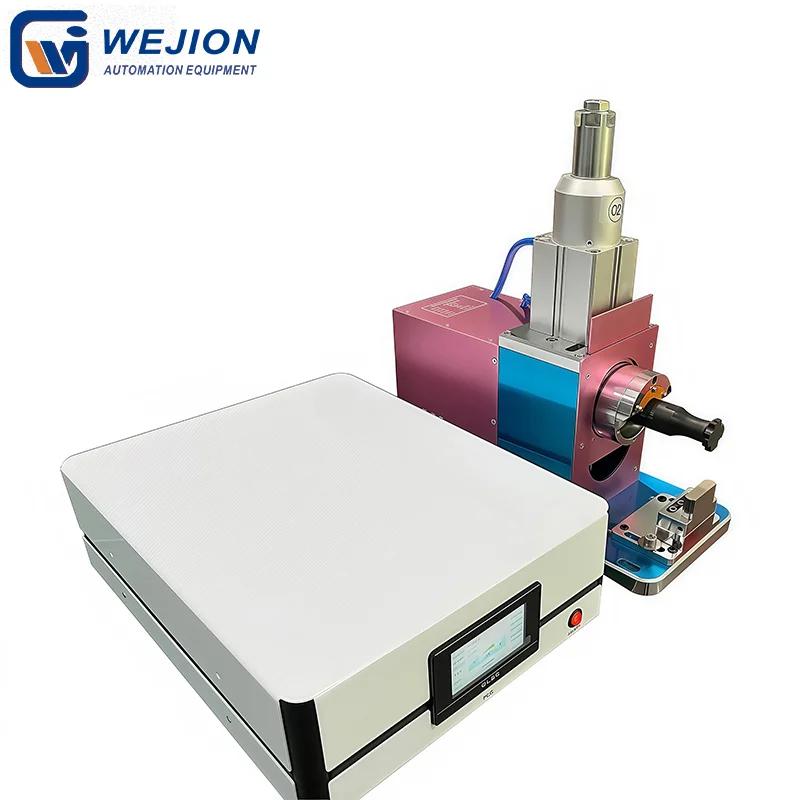

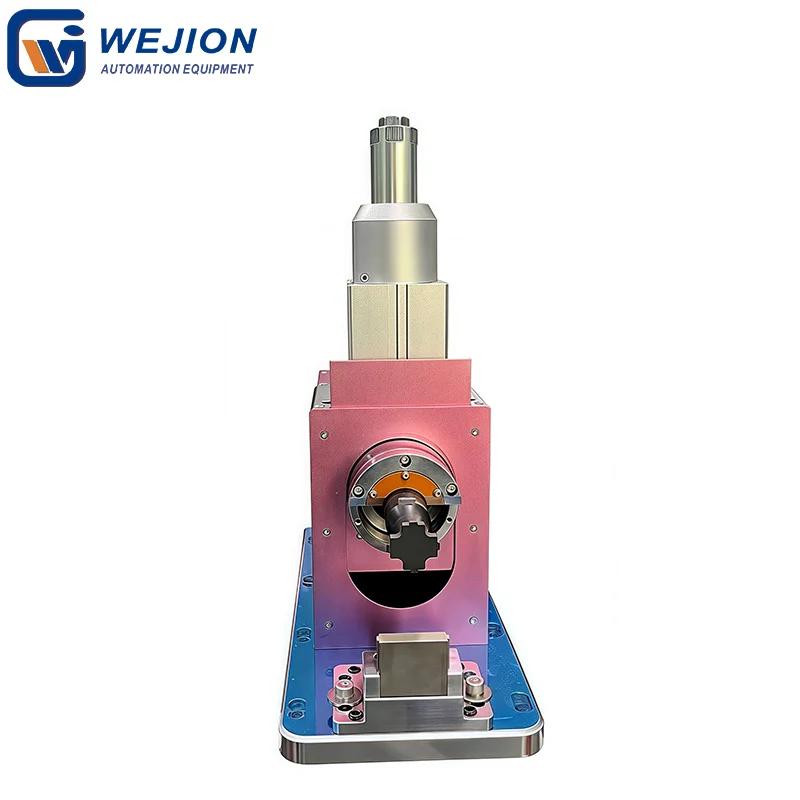

WU-HN315 Wire Ultrasonic Welding(3-15mm²)
WU-HN315 Wire Ultrasonic Welding(3-15mm²)
WU-HN315 Wire Ultrasonic Welding(3-15mm²)
WU-HN315 Wire Ultrasonic Welding(3-15mm²)
WU-HN315 Wire Ultrasonic Welding(3-15mm²)
WU-HN315 Wire Ultrasonic Welding(3-15mm²)
Product Introduction:

Description

Features

  1. Multiple welding modes

  1. Compact structure with lightweight design

  1. User-friendly interface with Windows 7 operating system

  1. Password protection and parameter program storage

  1. Barcode scanning function: supports both barcode and QR code

  1. Comprehensive process data storage to enable product traceability

  1. Supports sequential welding control and unit operation

  1. Supports networked control and data monitoring

  1. Multiple desktop configurations for various production settings

  1. Supports integration into production lines

Technical Parameters & Performance Features

  1. Equipment power options: 2000W, 4200W, 5600W, 8000W. It enables one-time welding forming for wire harnesses with cross-sectional areas ranging from 0.5mm² to 70mm². (We will continue to develop wire harness welding machines capable of welding wire harnesses with larger cross-sectional areas.)

  1. Integrated design for the entire machine, featuring small structure volume, lightweight, elegant appearance, and easy mobility. Adopts PLC phase-locked frequency automatic tracking technology to ensure stable welding effects between wire harnesses, as well as between wire harnesses and terminal plates.

  1. Realizes wire harness connection at minimum cost. After welding, it delivers excellent electrical conductivity with low or nearly zero resistivity. It has short welding time and requires no flux, gas, or solder, making it a currently environmentally friendly welding process and advanced electrical connection technology.

BrandWEIJIANG
ProductUltrasonic Metal Welder
ModelWU-HN315
Air Pressure0.05-0.6 MPA
Operating Frequency20 KHZ
Welding Range3-15 mm²
Terminal Thickness≤3 mm
Dimensions65*35*78cm
Frame Weight142 KG
Power Supply220V
ApplicationCopper wires, aluminum wires, copper-aluminum terminals
Motor PowerCustomizable
