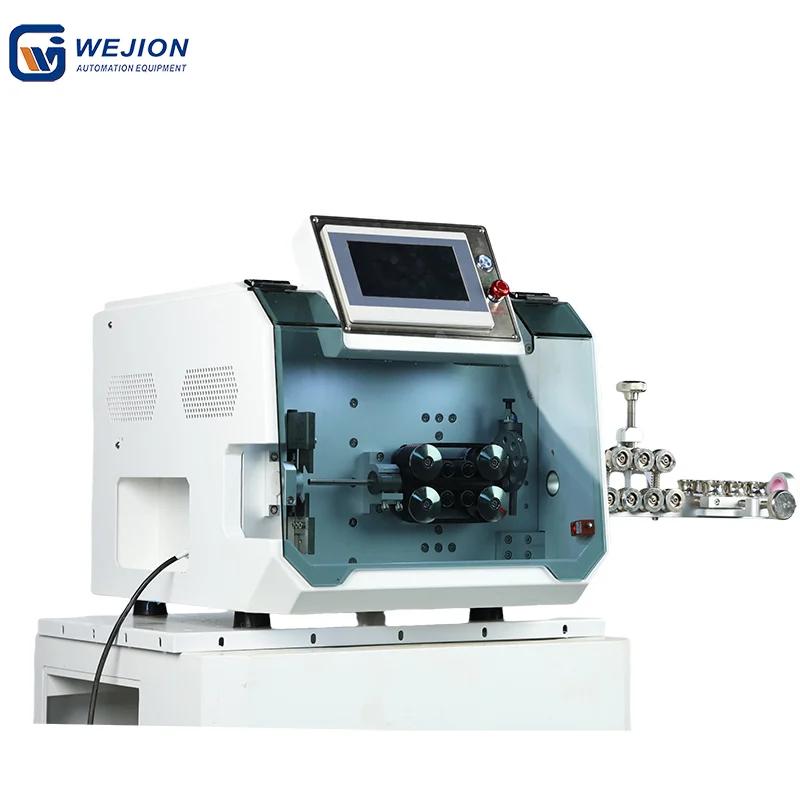

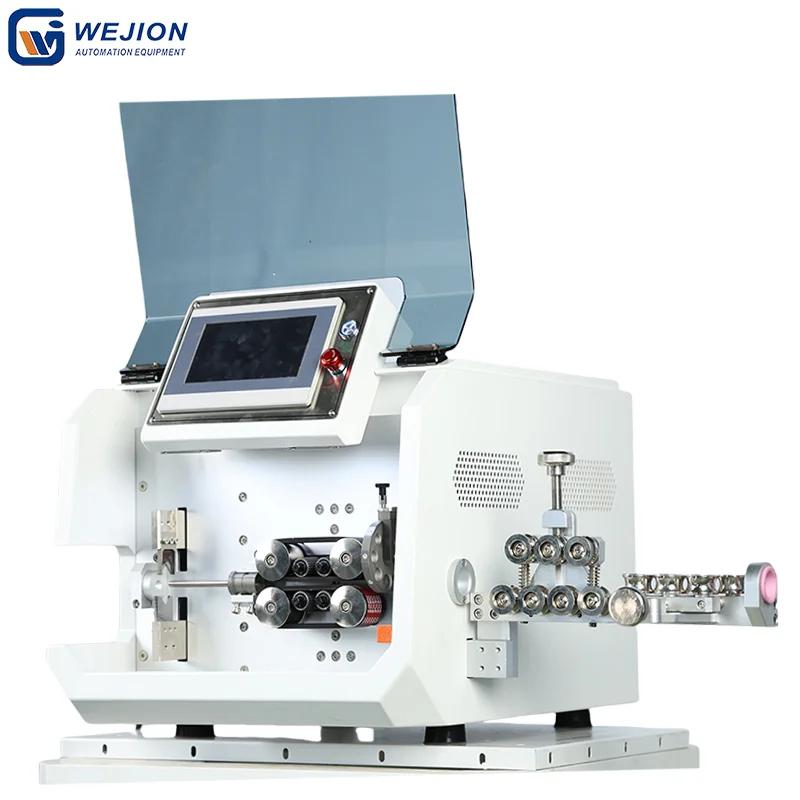

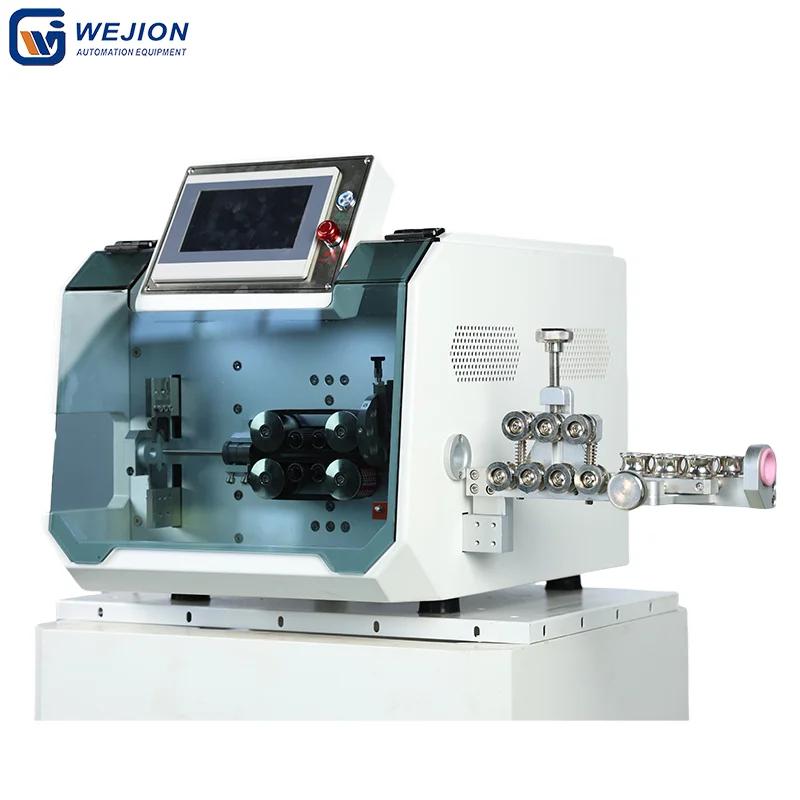

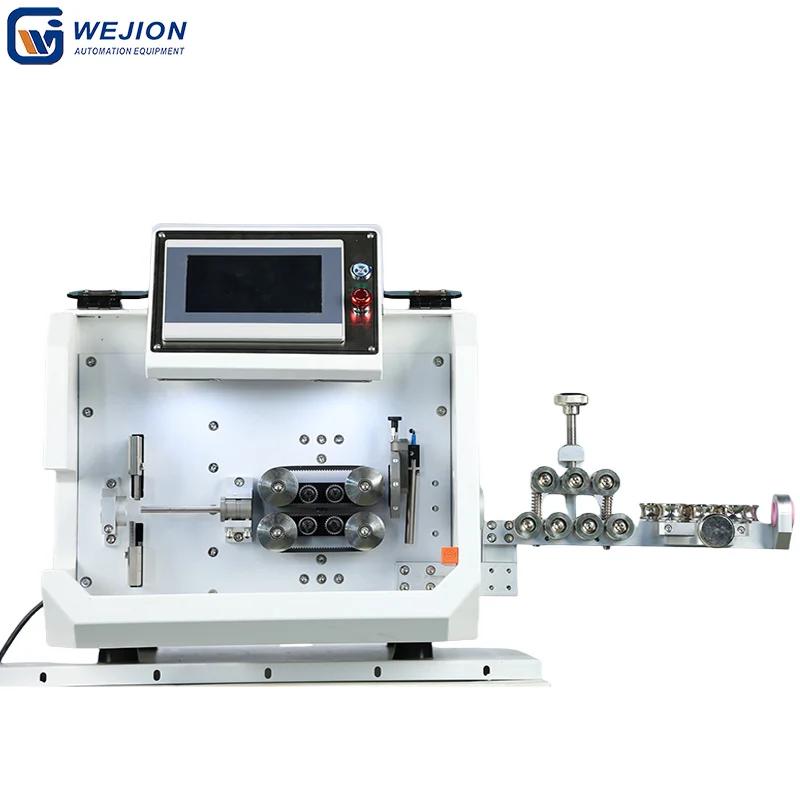

CS-3030Q Wire Cutting Machine Cable Cutting Machine
CS-3030Q Wire Cutting Machine Cable Cutting Machine
CS-3030Q Wire Cutting Machine Cable Cutting Machine
CS-3030Q Wire Cutting Machine Cable Cutting Machine
CS-3030Q Wire Cutting Machine Cable Cutting Machine
CS-3030Q Wire Cutting Machine Cable Cutting Machine
Product Introduction:

ModelCS-3030QCategoryCut / StripTagWire cutting machine

Description

Functions:

  1. Automatically cuts wires and cables to a set length.

  2. Automatically strips the insulation from the front end.

  3. Processes various types, including single-core wires, multi-core cables, and shielded cables.

  4. Can also process other materials like PVC tubes.

Features:

  1. User-friendly control via a 7-inch color touchscreen interface.

  2. Modular design for easy upgrades and connection to accessories.

  3. Belt-driven feeding system to prevent damage to wires.

  4. High-precision cutting with servo-driven blades.

  5. Offers optional add-ons like IoT connectivity, MES systems, and inkjet marking.

  6. Customizable for special wire processing tasks.

Technical Data





ModelCS-3030Q
Display7-inch HMI
Processing FunctionAutomatic length cutting, front stripping
Applicable MaterialsSingle-core wire, multi-core cable, shielded cable, PVC tube
Processing Range0.25 – 30 mm²
Maximum Outer DiameterΦ18 mm
Cutting Length Range1 – 999999.99 mm
Cutting Tolerance≤ 0.002 × L (L=Cutting Length)
Stripping LengthFull strip: 1-200 mm; Semi-strip: 1-1500 mm
Production CapacityUp to 5500 pcs/hour
Drive Method16-wheel drive system
Feeding MechanismBelt feeding
Cutting Tool MaterialImported high-speed steel
Power RequirementsAC 220V 50/60Hz (110V optional)
Air Pressure Requirement0.5 MPa clean air source
Machine Dimensions480*605*520 mm
Net Weight70 kg


ModelCS-3030Q
Display7-inch HMI
Processing FunctionAutomatic length cutting, front stripping
Applicable MaterialsSingle-core wire, multi-core cable, shielded cable, PVC tube
Processing Range0.25 – 30 mm²
Maximum Outer DiameterΦ18 mm
Cutting Length Range1 – 999999.99 mm
Cutting Tolerance≤ 0.002 × L (L=Cutting Length)
Stripping LengthFull strip: 1-200 mm; Semi-strip: 1-1500 mm
Production CapacityUp to 5500 pcs/hour
Drive Method16-wheel drive system
Feeding MechanismBelt feeding
Cutting Tool MaterialImported high-speed steel
Power RequirementsAC 220V 50/60Hz (110V optional)
Air Pressure Requirement0.5 MPa clean air source
Machine Dimensions480*605*520 mm
Net Weight70 kg
