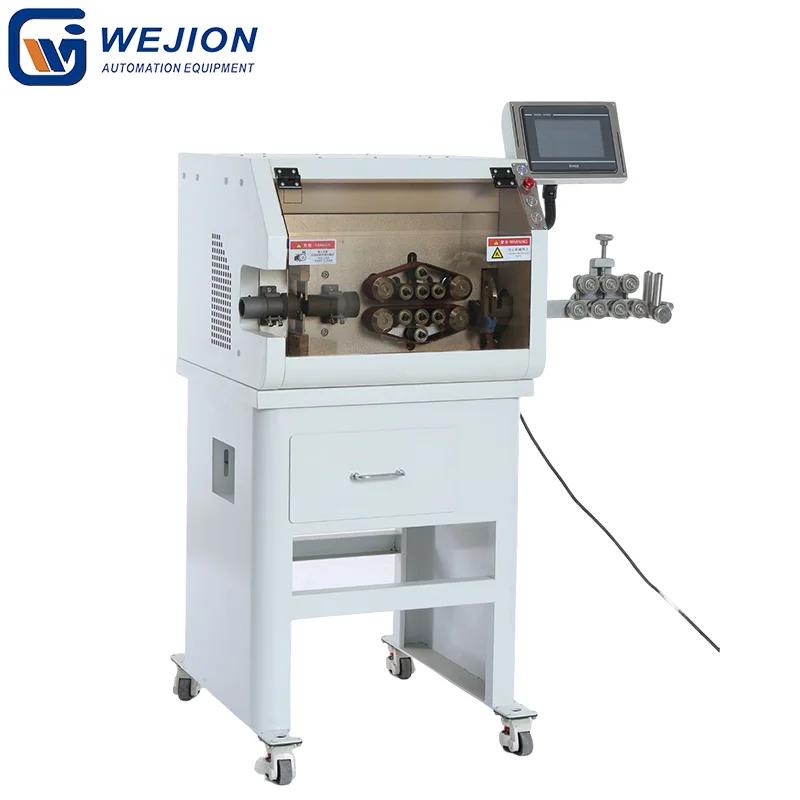

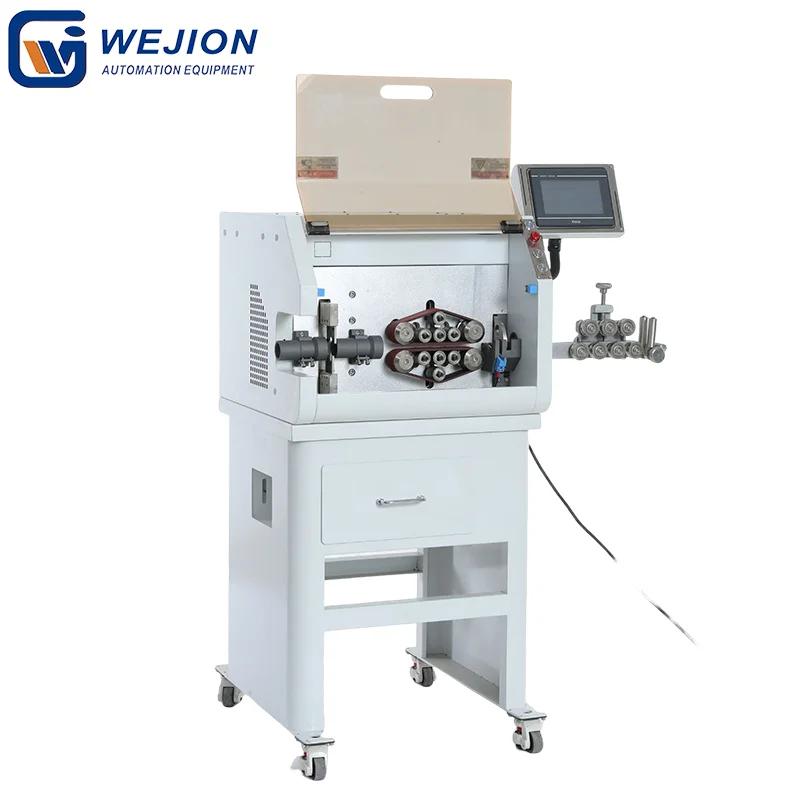

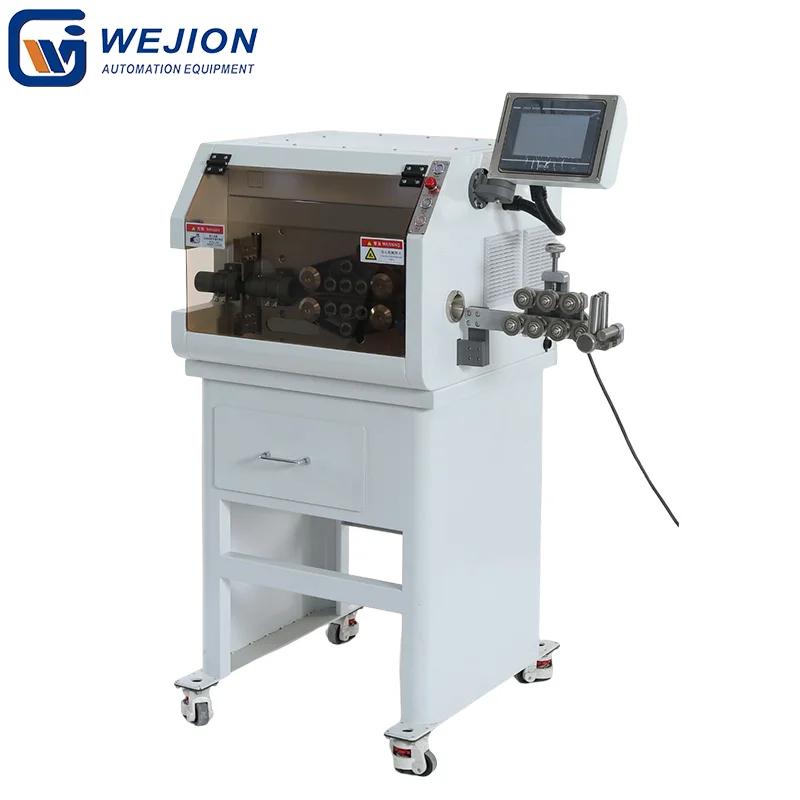

CS-8150Q max. 150kg fully automatic large cable cutting machine
CS-8150Q max. 150kg fully automatic large cable cutting machine
CS-8150Q max. 150kg fully automatic large cable cutting machine
CS-8150Q max. 150kg fully automatic large cable cutting machine
CS-8150Q max. 150kg fully automatic large cable cutting machine
CS-8150Q max. 150kg fully automatic large cable cutting machine
Product Introduction:

ModelCS-8150QCategoryCut / StripTagsCable cutting machine, Wire cutting machine

Description

  1. Fully automatic feeding, positioning, and cutting of wires/cables with minimal manual intervention.

  2. Cuts wires/cables from 1mm to 99999.99mm in length, handles cable diameters up to Φ33mm and cross-sections up to 150 mm² (customizable for larger sizes).

  3. Cutting tolerance within 0.002*L (L = cutting length), 16-wheel belt feeding prevents indentation/scratches.

  4. Up to 1800 cuts per hour (varies by wire size/length) for high-volume production.

  5. Imported high-speed steel blades, servo-driven cutting mechanism (full servo upgrade optional).

  6. Adaptable for special cables (sample testing required) and custom cutting lengths.


ModelCS-8150Q Cutting Machine
Display7-inch True Color Touch Screen
FunctionFully automatic cutting and stripping for wires and cables
Wire TypesCable, PVC, sheathed wire, etc.
Stripping Range1-150 mm² (customizable for >150 mm²)
Cutting Length1mm-99999.99mm
Cutting ToleranceWithin 0.002*L (L = cutting length)
Stripping LengthFront stripping: 1-800mm (wire head); Rear stripping: None (wire tail)
Max. Wire Diameterφ33 mm
Blade MaterialImported high-speed steel
Productivity1800 pcs/h (subject to wire length and size)
Power SourceCutting servo, feeding stepper (full servo optional)
Wire FeedingBelt feeding, 16-wheel drive (no indentation or scratches on cables)
Power Supply220V/50HZ ±10%
Installed Capacity1.6KW
Full Load Current18A (minimum allowable current: 10A)
Air SupplyNone
Special Features1. Customizable for special wires (sample testing required)
2. Stripping pressure, front full-stripping guide, encoder, automatic wire detection
Auxiliary FunctionsMaterial collecting clamp, mechanical arm, wire take-up rack (use with module isolation)
Net Dimensions900*710*560 mm
Packaging Dimensions1000*810*760 mm
