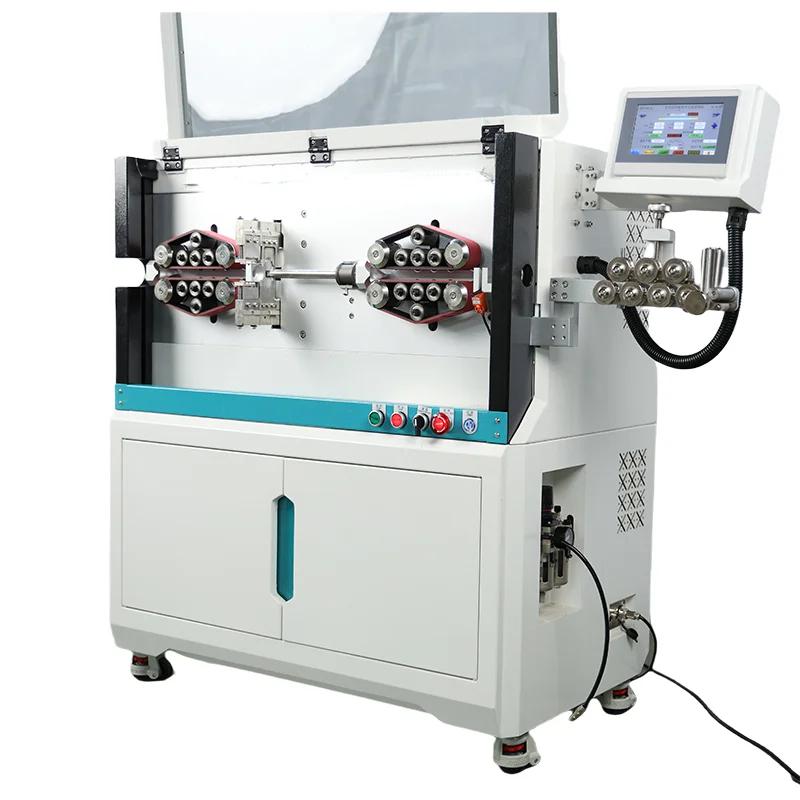

CS-3120H Heavy Duty Cable Stripper For Multicores(Φ0-27mm)(2.5-120mm²)
CS-3120H Heavy Duty Cable Stripper For Multicores(Φ0-27mm)(2.5-120mm²)
CS-3120H Heavy Duty Cable Stripper For Multicores(Φ0-27mm)(2.5-120mm²)
CS-3120H Heavy Duty Cable Stripper For Multicores(Φ0-27mm)(2.5-120mm²)
CS-3120H Heavy Duty Cable Stripper For Multicores(Φ0-27mm)(2.5-120mm²)
Product Introduction:

Description

Function & Feature

  1. Multi-Type Wire Compatible Processing: It can handle various types of wires such as single-core wires, multi-core cables, and shielded cables. It supports fully automatic fixed-length cutting and stripping, and is also suitable for special wire processing needs, meeting the requirements of different application scenarios.

  1. Convenient and Intuitive Operation Experience: Equipped with a 7-inch color touch screen human-machine interface, it features clear operation logic. Users can intuitively complete parameter setting and function adjustment, which lowers the operation threshold and improves work efficiency.

  1. Flexible Stripping and Wire Feeding Design: It has multiple stripping modes including full front stripping/half front stripping and full rear stripping/half rear stripping. Combined with the belt wire feeding technology, it realizes scratch-free and indentation-free wire processing. Meanwhile, it supports digital adjustment of pressure wheel height to adapt to wires of different specifications.

  1. Modular Customization and Upgrading: Adopting modular interface and design, it not only facilitates the connection of accessories and peripheral equipment, but also allows flexible function upgrading in the future. It supports system customization according to requirements to adapt to personalized processing scenarios.

  1. Optional Intelligent Expansion Functions: Optional functions such as MES system, Internet of Things (IoT) system, fixed-point inkjet printing, middle stripping function, and external auxiliary equipment alarm are available, helping to achieve intelligent production management and operation safety assurance.

Model
CS-3120H
Display Method
7-inch Human-Machine Interface (HMI)
Functions
Fully automatic fixed-length cutting and stripping for single-core wires, multi-core cables, shielded cables
Wire Type
Single-core wires, multi-core cables, shielded cables, electric wires, PVC wires, etc.
Processing Range
2.5 – 120 mm²
Cutting Length
1 mm – 999999.99 mm
Cutting Tolerance
Within 0.002*L (L = cutting length)
Stripping Length
Front full stripping: 1 – 300 mm; Front half stripping: 1 – 1000 mmRear full stripping: 1 – 150 mm; Rear half stripping: 1 – 500 mm
Maximum Conduit Diameter
Φ27
Wheel Lifting Method
Stepper motor-driven wheel lifting
Conduit Swinging Method
Pneumatic cylinder-driven conduit swinging
Tool Material
High-quality imported high-speed steel
Productivity (Pieces/Hour)
2000 PCS/hour (varies by wire length and size)
Driving Method
24-wheel drive (feeding stepper motor, tool post servo motor); Optional servo feeding
Wire Feeding Method
Belt wire feeding (no indentation or scratch on cables); With stripping pressure function
Lifting Operation Method
Digital adjustment of pressure wheel height
Power Supply
AC 220V 50/60Hz; Optional AC 110V 50/60Hz
Air Supply
0.5 – 0.8 Mpa
Dimension (LWH)
1020*590*1140 mm
Net Weight
260 KG
