Product Introduction:

Functions：

Dual – Function Wire Processing

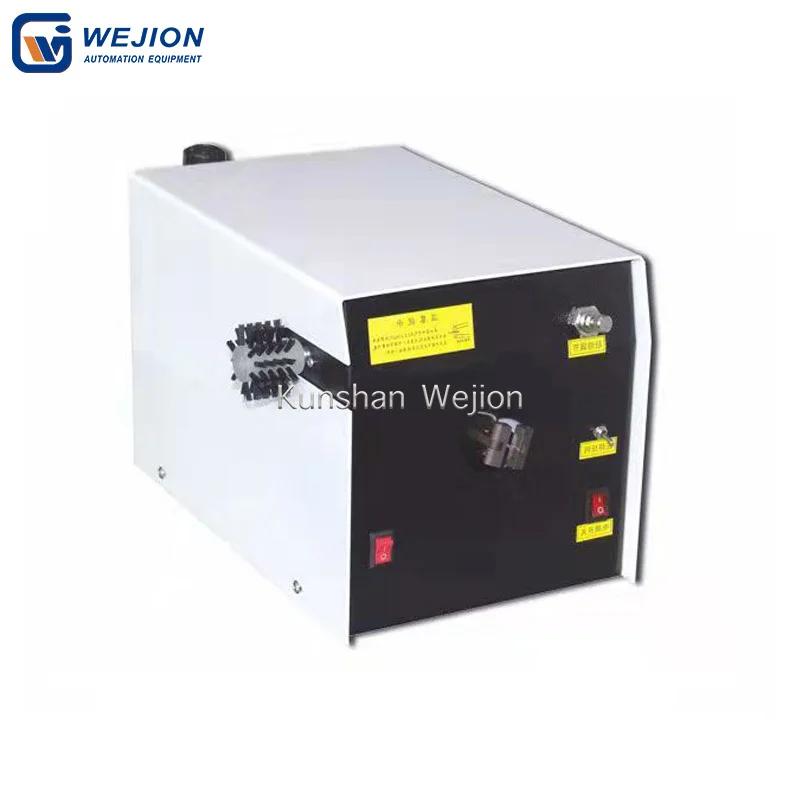

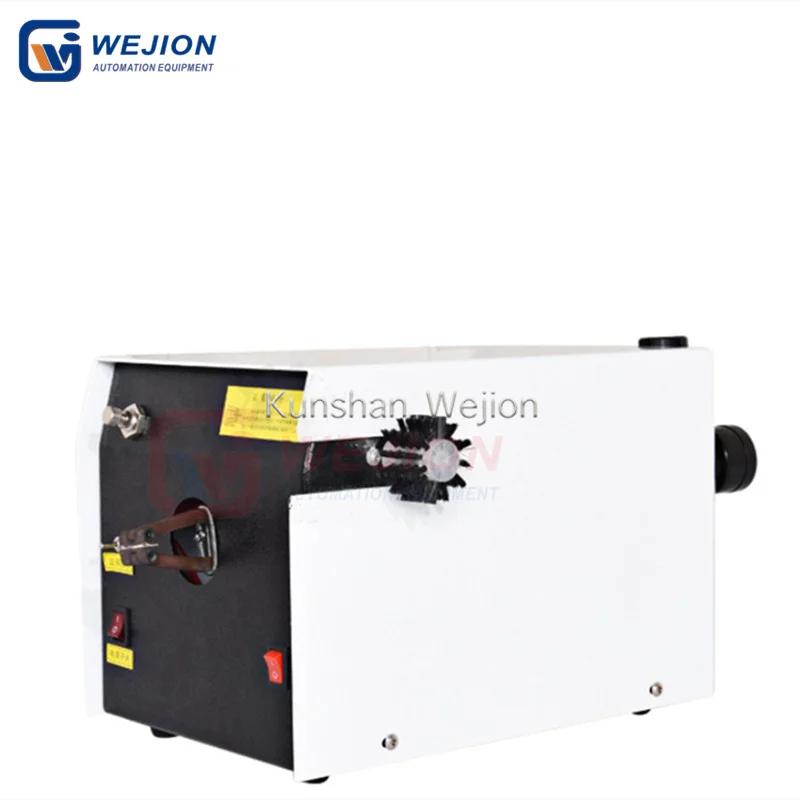

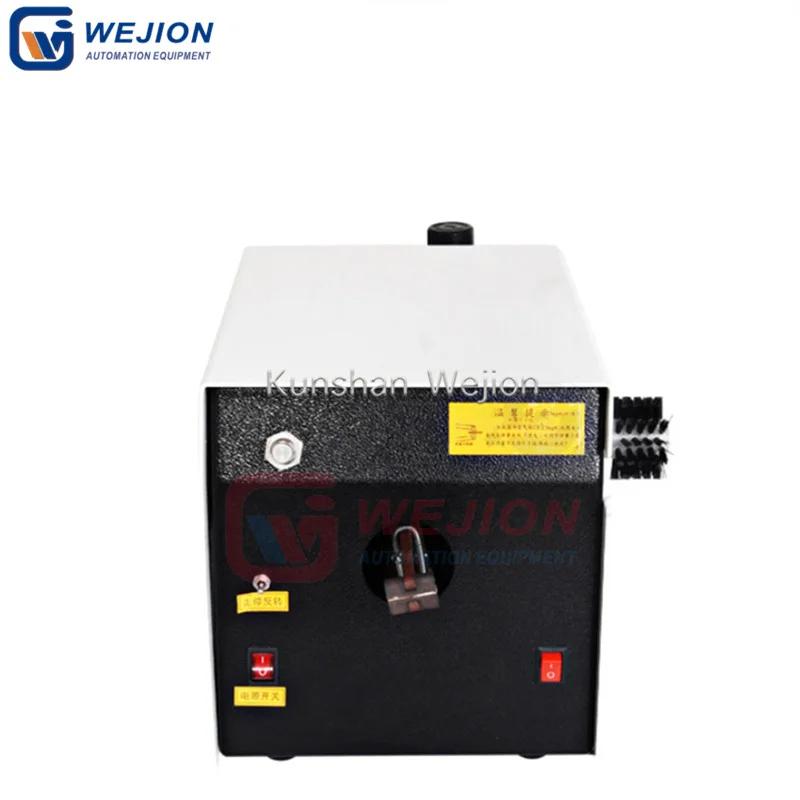

The T – 20 stands out with its unique dual – function capabilities. Not only can it twist various types of wires, including ground wires, braided wires, and insulated wires within the 0.1 – 2mm² range, but it also features an integrated brushing mechanism. This brushing function is designed to effectively spread out shielded wires, making it suitable for a broader range of wire types. The brushing wire range extends from 0.1 – 10mm, and the stripped length can be adjusted from 1 – 60mm, with the potential to reach 80 – 100mm depending on the wire material. This dual functionality completely replaces traditional manual wire twisting and brushing operations, streamlining complex wire – processing tasks.

Automated and Effortless Operation
Equipped with a pneumatic control system, the T – 20 ensures seamless and automated operation. When connected to the air source, the clamping hands automatically open, eliminating the need for manual adjustment. During the wire – processing task, operators simply hold the wire and place it in the designated area, then lightly activate the foot switch. In an instant, both the brushing (if required) and twisting operations are completed, significantly reducing labor intensity and improving production efficiency. This intuitive operation mode makes it accessible even for novice operators.

Precision – Controlled Twisting
The machine offers precise control over the wire – twisting process. With a high twisting speed of 1400 circles per second, it can handle high – volume production requirements while maintaining consistent quality. The adjustable air pressure, ranging from 1.5 – 2.5kg/cm², allows operators to fine – tune the twisting force according to different wire materials and thicknesses. Additionally, the twisting length can be set within the range of 5 – 80mm, and it can be customized up to 150mm, providing flexibility to meet diverse project needs. Whether it’s for short – length twists in small electronic components or longer twists for wiring harnesses, the T – 20 delivers accurate and reliable results.

Enhanced Adaptability for Different Wires
Thanks to its elastic wire – clamping system, the T – 20 can handle wires of varying diameters without the need for frequent adjustments. This feature is particularly useful when processing wires within the 0.1 – 2mm² range, as it ensures a secure grip on each wire, preventing slippage during the twisting process. For thicker wires, if there is an issue of outward slipping, the machine allows for a simple modification – creating a small groove in the center of the chuck, the size of which can be tailored to the specific wire diameter. This adaptability makes the T – 20 suitable for a wide variety of wire – processing applications.

Features：

User – Friendly and Ergonomic Design
The T – 20 is designed with user convenience in mind. The exposed automatic clamping hands make it extremely easy to place even dispersed copper wires, reducing the time and effort required for wire positioning. The control interface, including the foot switch, is intuitively designed for straightforward operation. The machine’s compact size, measuring L34W19H17cm and weighing only 12kgs, allows it to fit into various workspaces, including small workshops and tight production lines. Its portability also enables easy movement between different workstations, enhancing operational flexibility.

Upgraded and High – Performance Build
As an advanced version of the pneumatic – electric wire – twisting machine, the T – 20 incorporates several innovative features. The addition of the automatic wire – pulling device not only simplifies the wire – feeding process but also significantly shortens the training time for new operators, making it easier to integrate new staff into the production process. The adjustable chuck opening size, which can be modified by loosening and moving the chuck spindle screw, and the adjustable clamping force, which can be increased by adding up to six springs, provide enhanced customization options to meet different wire – processing requirements. These upgrades ensure that the T – 20 delivers superior performance and reliability.

Energy – Efficient and Versatile
With a power consumption of only 10W, the T – 20 is highly energy – efficient, helping businesses reduce operational costs. It is compatible with both 220V and 110V power supplies at frequencies of 50 – 60Hz, making it suitable for use in different regions around the world. This wide – ranging power compatibility, combined with its versatile wire – processing functions and adjustable parameters, makes the T – 20 a valuable asset for various industries, from electronics manufacturing to electrical equipment production and beyond.

Durable and Low – Maintenance
Built with high – quality materials and components, the T – 20 is engineered for long – term durability. Its sturdy construction can withstand the rigors of continuous use in industrial environments. The machine’s design also facilitates easy maintenance, with accessible parts for inspection and replacement. The simple and reliable mechanical and pneumatic systems reduce the likelihood of breakdowns, minimizing production downtime and maintenance costs. This durability and low – maintenance design make the T – 20 a cost – effective investment for businesses looking to enhance their wire – processing capabilities.
