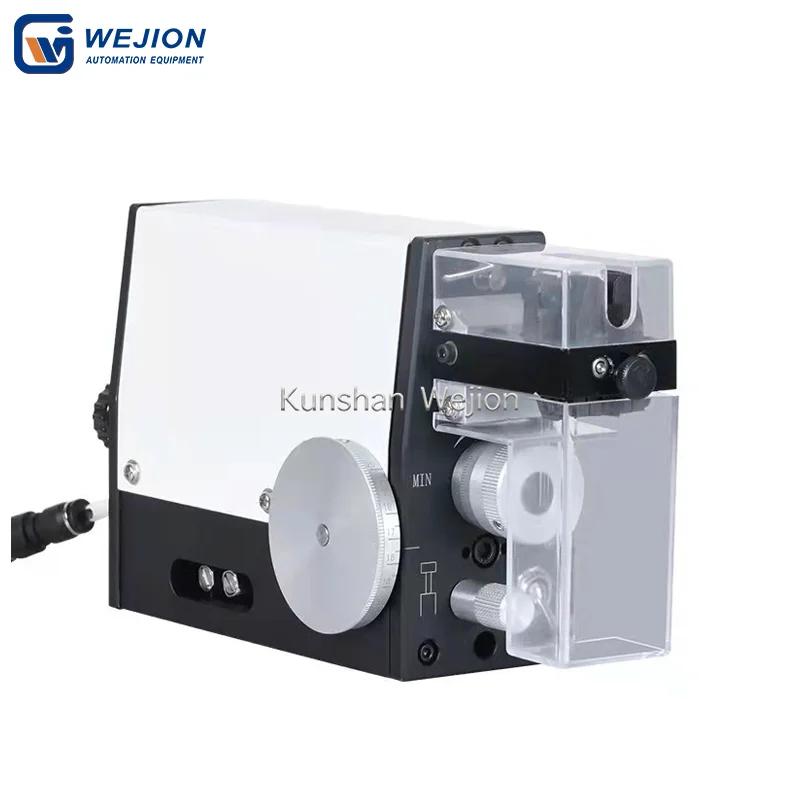

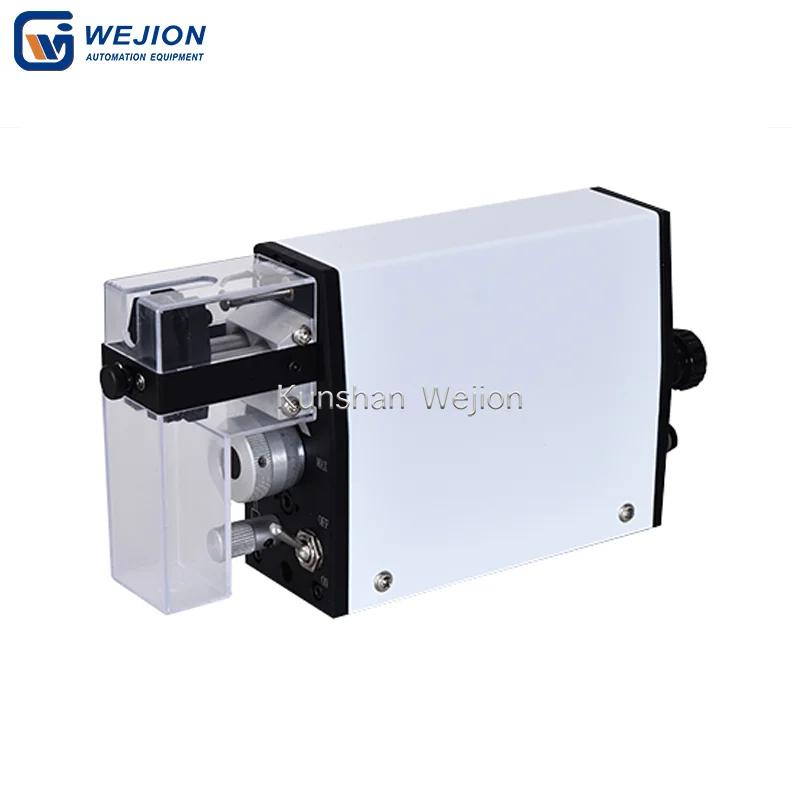

S-2015C pure pneumatic wire stripping machine is an efficient and precise small device designed for processing small to medium-sized cable wires. It is widely used in electronics, communications, automobiles and other industries. This equipment has many advantages, can improve production efficiency, and simplify the operation process, adapting to the stripping and cutting needs of various cables.

Function:
1. No power supply required, air source drive:
* The equipment adopts a pneumatic drive system, which only needs to be connected to the air source and can work without power supply. It has high safety and flexibility and is suitable for environments with high electrical safety requirements.
2. Sensor control, no foot switch required:
* The sensor control system replaces the traditional foot switch, making the operation more convenient and quick. The sensor can accurately sense the timing of stripping to ensure that the stripping process is accurate and correct.
3. Accurate stripping and cutting adjustment:
* The stripping length, cutting depth, half stripping and full stripping can be quickly adjusted through the scale knob, without the need for additional tools, easy to operate, quick to adjust, and greatly improve work efficiency.
4. V-shaped blade design, strong versatility:
* The 90-degree V-shaped blade design can easily handle various types of wires, including solid wires, stranded wires, single-core cables, etc., without the need to frequently replace blades, which improves the versatility and efficiency of the production line.
5. Wide processing range:

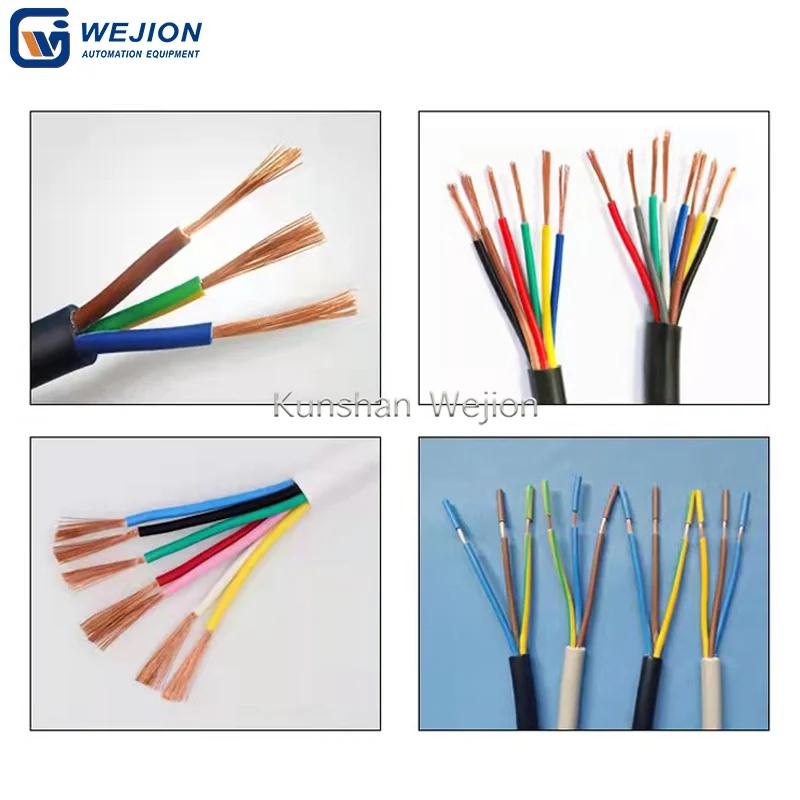

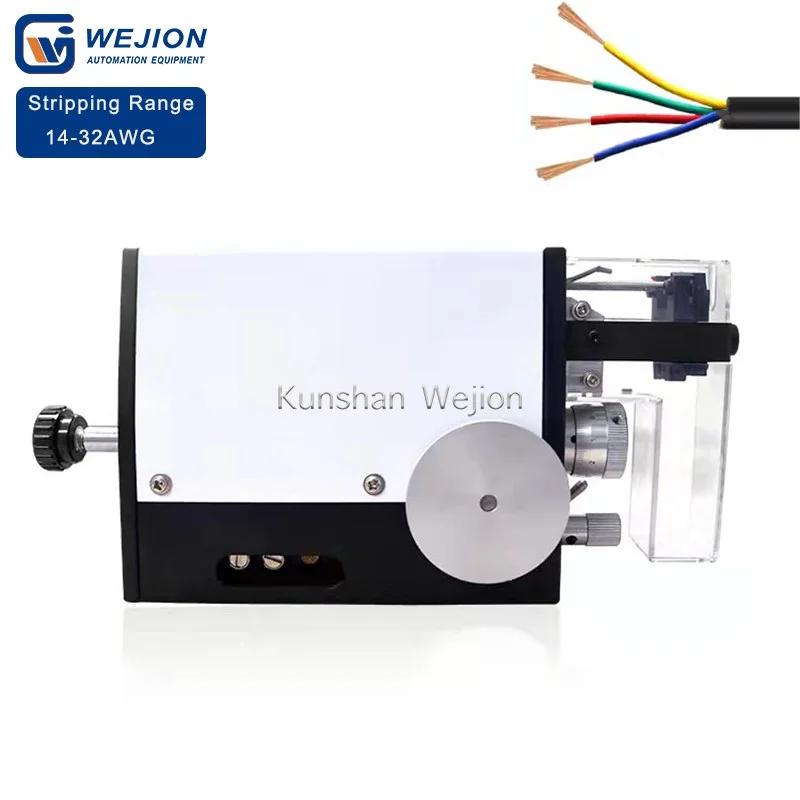

* Suitable for a variety of cable wires in the range of AWG 32-12 (0.03 mm² – 2.08mm²), it can handle a variety of wires of different specifications and materials to meet different production needs.
6. Adjustable stripping length:
* The stripping length can be adjusted from 1 mm to 20 mm. The stripping length of each cable can be accurately set by adjusting the knob to meet the needs of different wire lengths.
7. Compact design, easy to move:
* The device is small in size, weighs only 2 kg, and has a compact design, which is easy to move between different workstations. It can work normally as long as there is an air source, which is suitable for flexible production environments.

Features:
1. High efficiency and fast processing:
*S-2015C can complete the cable stripping task in a very short time, ensuring efficient production capacity, suitable for production lines that require high output and fast pace.
2. Precise control:
*Sensor control technology is used to accurately start the equipment without the need for a foot switch, ensuring that each operation meets the preset standards and improves processing accuracy and consistency.
3. Tool-free adjustment:
*All stripping depth and length adjustments can be completed by knobs, without the need for additional tools, simplifying the operation steps and improving work efficiency and flexibility.
4. Universal blade design:
*The unique V-shaped blade design is suitable for a variety of wire types, and cables of different materials can be processed without changing the blade, saving the time and cost of blade replacement.
5. Compact and portable:
Lightweight and compact (only 2 kg), it is suitable for small workspaces or work environments that require frequent equipment movement. At the same time, the equipment is easy to carry and can be quickly deployed between different workstations.
6. High-precision stripping:
* Through the pneumatic drive system, the stripping process is precise and uniform, which can ensure that the outer skin of each cable is cleanly and accurately removed to avoid damage to the conductor.
7. Cost-effectiveness:
* The high efficiency and easy adjustment make this wire stripping machine have a lower investment cost and a faster return on investment cycle, which is especially suitable for small and medium-sized production lines.

Application range:
1. Electronic industry:
* Used for stripping and cutting of circuit boards and electronic component connecting wires, especially suitable for wire processing of precision electronic components to ensure the stability and reliability of electrical connections.
2. Automobile industry:
* In the manufacture of automotive wiring harnesses, S-2015C is used to strip the outer skin of cables to ensure stable and reliable connection of the in-vehicle electrical system, and can meet the high-precision requirements of the automotive industry.
3. Communication industry:
* Suitable for stripping and cutting of communication cables to ensure the quality of the outer skin stripping and electrical contact points of signal transmission lines.
4. Home appliance industry:
* In home appliance products, S-2015C can be used to process power cables, signal cables and other cables to ensure the stability of electrical connectors.
5. Power equipment:
The cable connection parts in power equipment, such as power control cabinets and electrical junction boxes, can be accurately stripped by this device to ensure the efficiency and safety of the electrical system.
6. Other industries:
* Suitable for precision processing of various wires, such as mechanical equipment, electrical equipment and other fields, and can easily cope with the processing needs of multi-core cables and single-core wires.
