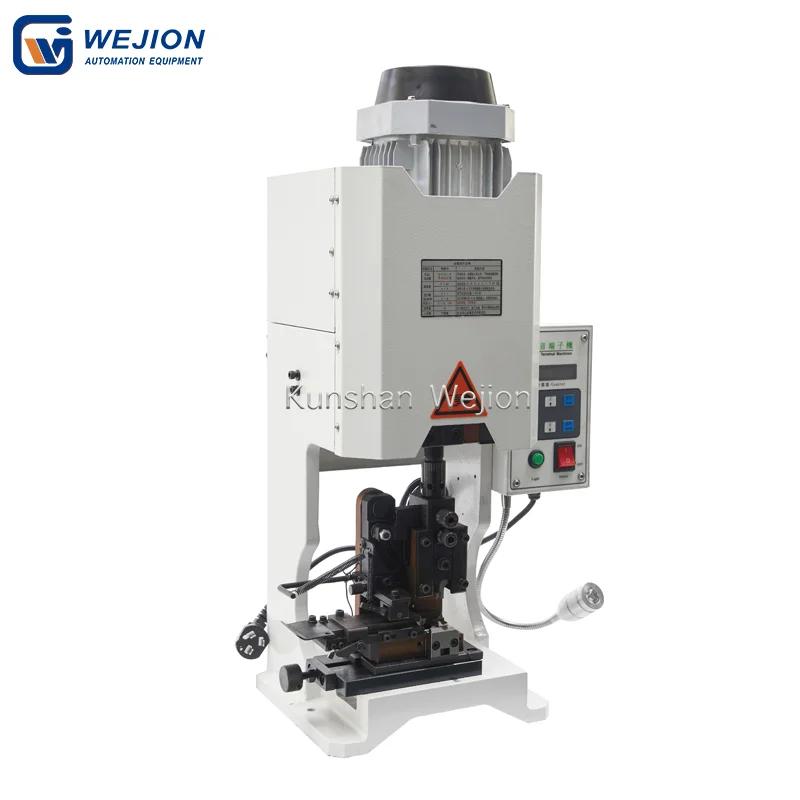

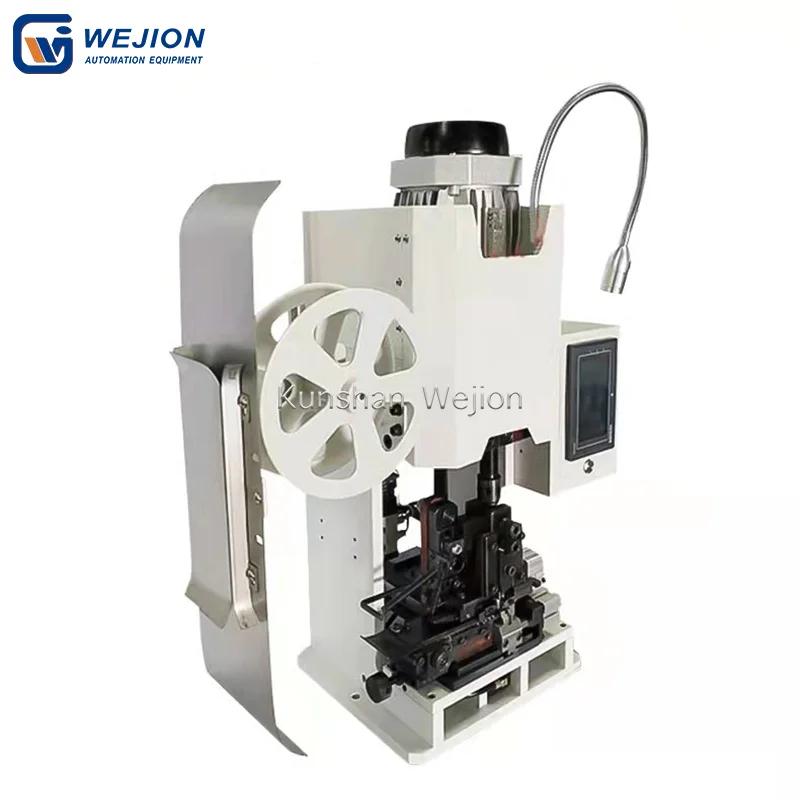

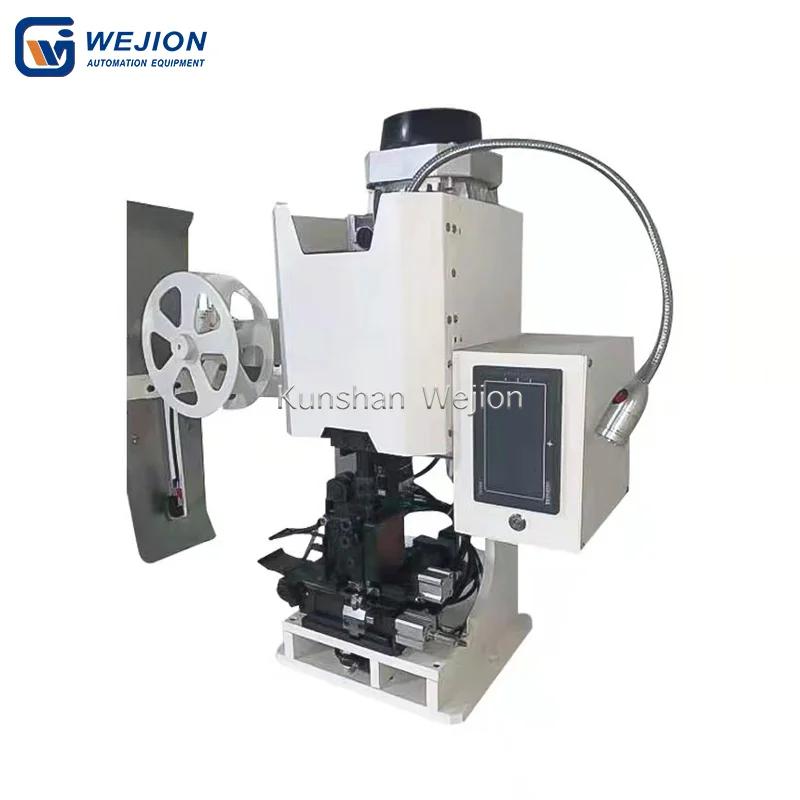

TSC-1800SS Horizontal pneumatic terminal strip crimp machine for DC AC terminals
TSC-1800SS Horizontal pneumatic terminal strip crimp machine for DC AC terminals
TSC-1800SS Horizontal pneumatic terminal strip crimp machine for DC AC terminals
TSC-1800SS Horizontal pneumatic terminal strip crimp machine for DC AC terminals
TSC-1800SS Horizontal pneumatic terminal strip crimp machine for DC AC terminals
TSC-1800SS Horizontal pneumatic terminal strip crimp machine for DC AC terminals
Product Introduction:

Functions

  1. Precise Dual – Process Integration
    The TSC – 1800SS seamlessly combines wire stripping and terminal crimping, handling wires ranging from AWG28# to AWG16#. Its adjustable stripping length (1mm – 7mm) and 2T crimp force ensure accurate processing for various wire gauges, making it ideal for applications requiring secure electrical connections.
  2. Variable – Parameter Operation
    Equipped with an intuitive control system, the machine allows operators to fine – tune stripping length and crimping pressure according to specific production needs. This adaptability enables it to process different wire types and terminal specifications with consistent precision.
  3. Efficient Scrap Management
    After stripping, the built – in vacuum suction system automatically collects wire scraps, maintaining a clean and organized workspace. This feature minimizes manual cleanup, enhancing overall production efficiency and safety.
  4. Steady Power and Air Compatibility
    Operating on 220/110V power supplies (50 – 60Hz) with an air pressure range of 0.3 – 0.4MPa, the machine functions reliably in diverse industrial settings. Its 750W power consumption balances high – speed performance with energy efficiency.



Features

  1. High – Precision Mechanisms
    The machine utilizes advanced transmission components and a high – accuracy control module, ensuring precise alignment between stripped wires and terminals. This reduces the risk of faulty connections, especially for delicate wire gauges.
  2. Quiet and Compact Design
    Designed for silent operation, the TSC – 1800SS minimizes noise pollution in production environments. Its compact footprint (503573cm) and 80kg weight allow easy integration into existing production lines, saving valuable workspace.
  3. Durable Pneumatic Components
    Featuring top – quality pneumatic parts sourced from reputable brands, the machine guarantees long – term reliability and consistent performance. The 0.3 – 0.4MPa air pressure requirement ensures stable operation while reducing maintenance needs.
  4. User – Friendly Interface
    With an easy – to – use operation panel, both novice and experienced operators can quickly adjust settings and monitor processes. The machine’s intuitive design streamlines production setup, reducing training time and operational errors.
ModelTSC-1800SS
Wire diaAWG16#-AWG28#
Crimp force2T
Air Source0.3~0.4mpa（please use dry and clean air）
Strip length1mm-7mm
Power supply220/110V (50-60Hz)
Power750W
Size50*35*73cm
Weight80kgs
