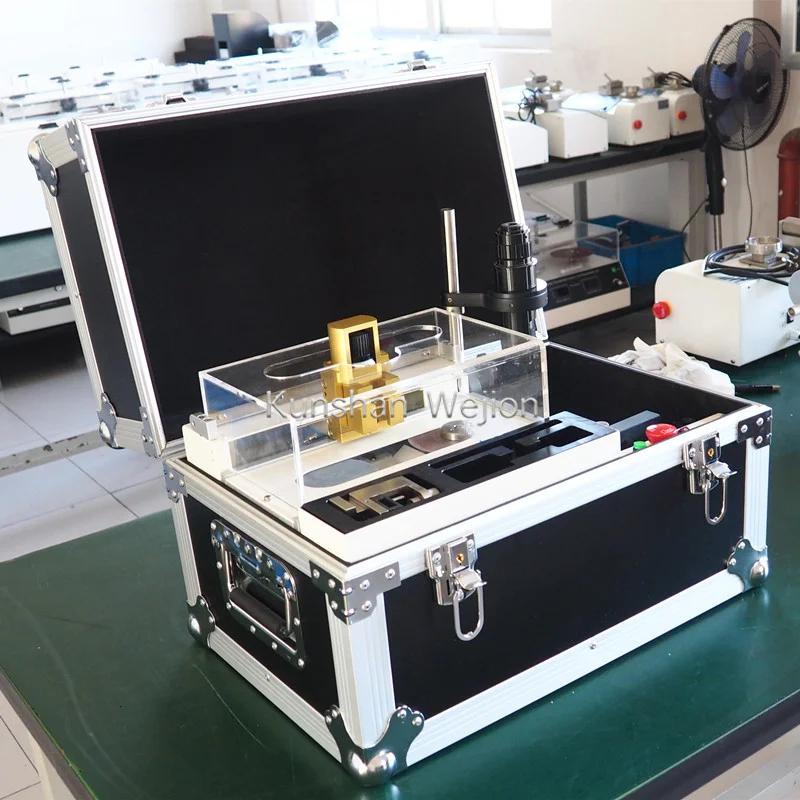

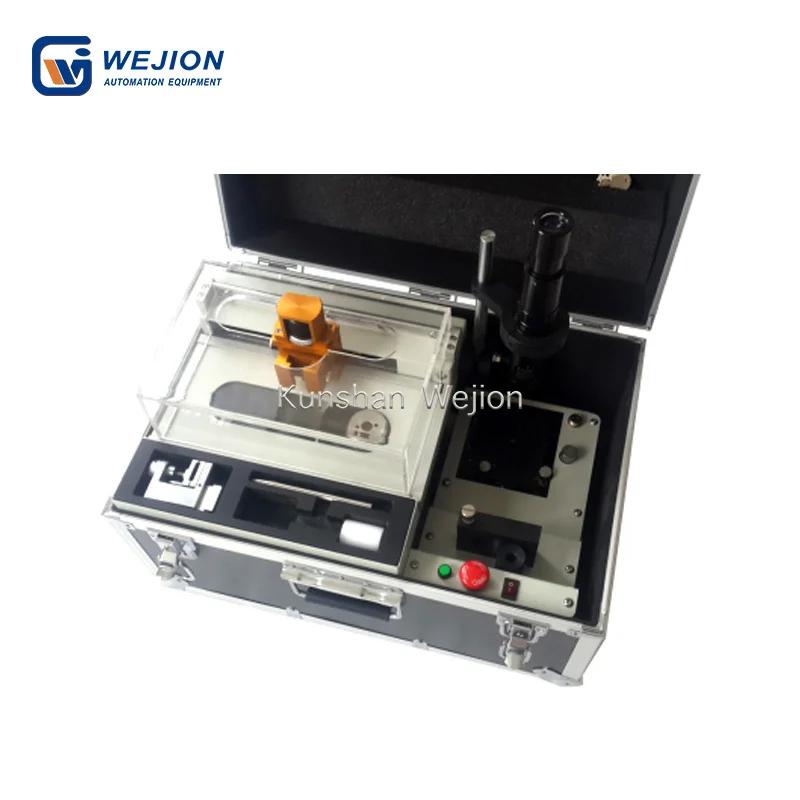

The automatic terminal cross-section analysis system is a precision in-spection and analysis equipment specially developed by our company for thequality inspection of the wiring harness industry.The complete system consistsof automatic terminal cutting equipment, grinding equipment, corrosion clean-ing section image acquisition system, wiring harness terminal picture measure-ment and analysis system, etc.The unit composition adopts human mechanicsdesign and modular combination, which makes the operation more convenientand faster. The complete inspection system can complete the processing andanalysis of a terminal within 5 minutes, which greatly improves the speed ofterminal section quality inspection.Simple operation, high-quality image acqui-sition system,accurate measurement and analysis escort your production.Thehigh-performance microscope observation instrument and special software canmeasure the length and calculate the area simply and correctly.When observing objects with ultra-high definition, it can produce uprightthree-dimensional space image, with strong stereo perception, clear and wideimaging, and long working distance;

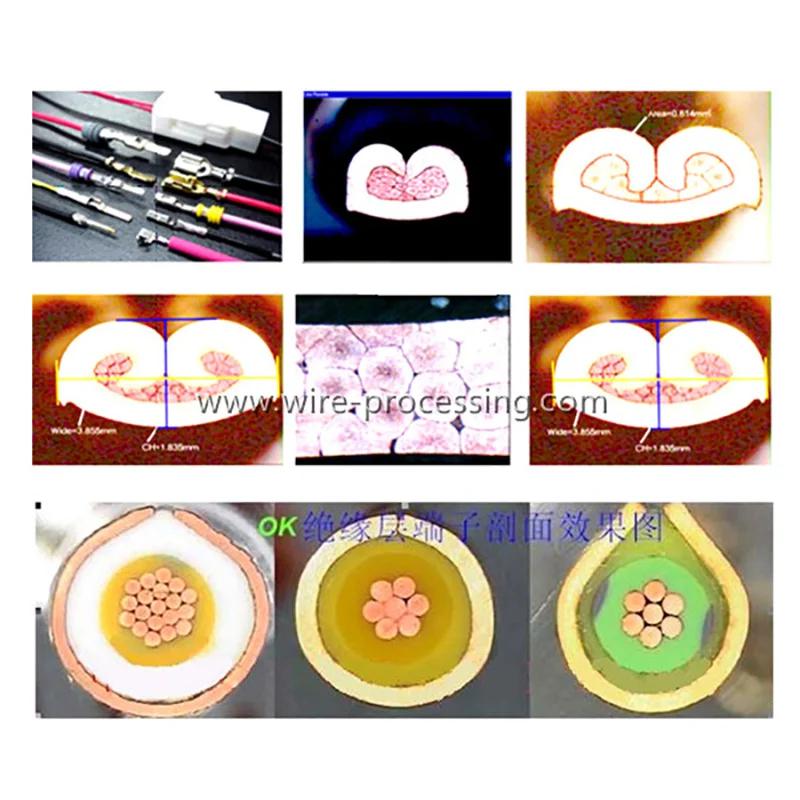

equipped with high-precision wiring har-ness terminal picture measurement and analysis system, combined intohigh-quality optical system and high-resolution The perfect combination ofhigh-speed cameras makes the cross-sectional image clearer, and the uniquefixed times and files make the measurement more accurate.
