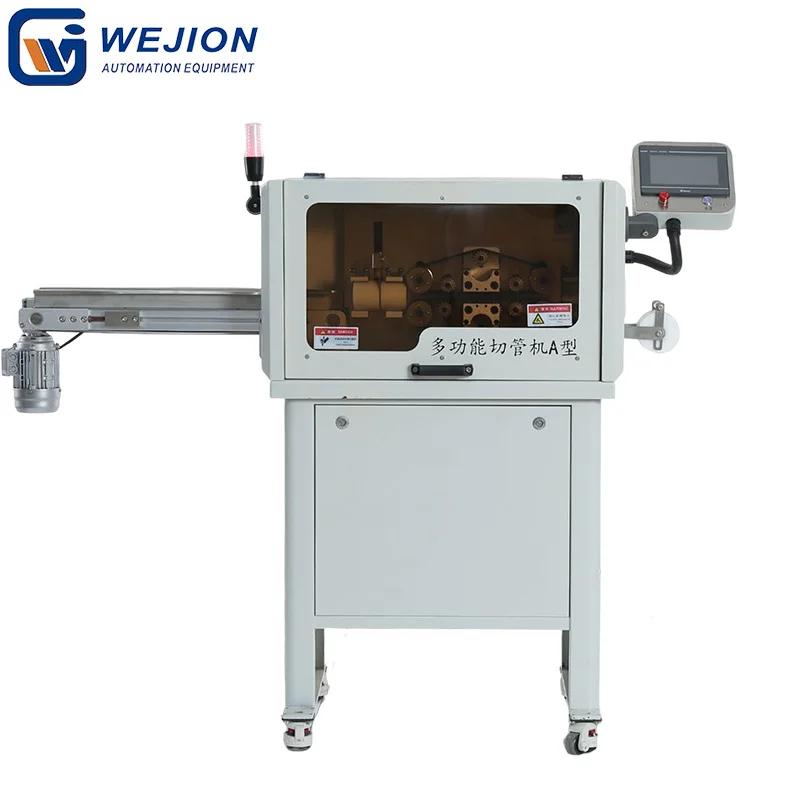

PC-A30-A metal reinforced corrugated tube cutter thick pipe cutting machine
PC-A30-A metal reinforced corrugated tube cutter thick pipe cutting machine
PC-A30-A metal reinforced corrugated tube cutter thick pipe cutting machine
Product Introduction:

Description


  1. Automated Cutting：Servo motor-driven track feeding, pneumatic cylinder cutting, and conveyor belt discharge for fully automated operation.

  2. High-Precision Control：Motion control board with HMI, length tolerance of ±0.5 + L*0.002 mm, handles diameters from ø1-ø60 mm.

  3. Efficient Production：Cutting speed of 20-40 pieces per minute, digital control motor for blade feed, 60 mm stroke.

  4. Flexible Adaptability：Compatible with 220V/50-60HZ power supply, 0.5-0.7Mp air pressure, 1200W power.

  5. Compact Design：Dimensions of 1020×530×1300 mm (excluding protrusions), 270KG weight for space-saving installation.

Technical Data

Model NamePC-A30-A
Control SystemMotion control board with HMI
Cutting MethodPneumatic cylinder cutting
Feeding MotorServo motor
Feeding ModeTrack feeding
Cutting Feed ModeDigital control motor
Discharge ModeConveyor belt output
Cutting Stroke60 mm
Power Supply220V 50-60HZ
Air Pressure0.5-0.7Mp
Power1200W
Cutting Diameterφ1-60mm
Length Tolerance±0.5 + L*0.002 mm (L = cutting length)
Cutting Speed20-40 pcs/min
Dimensions102*53*130 cm (excluding protrusions)
Weight270KG
