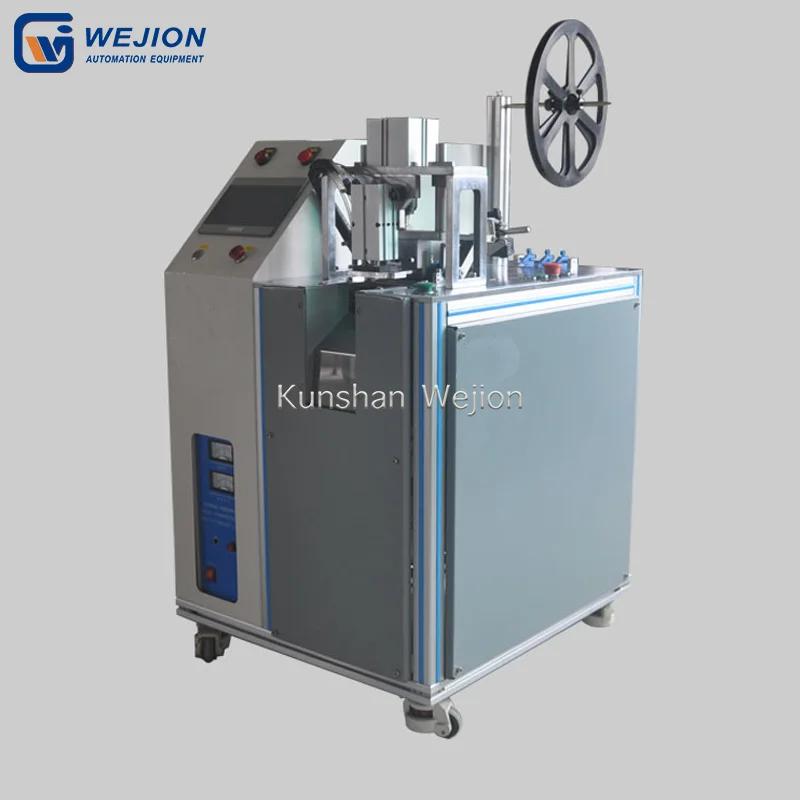

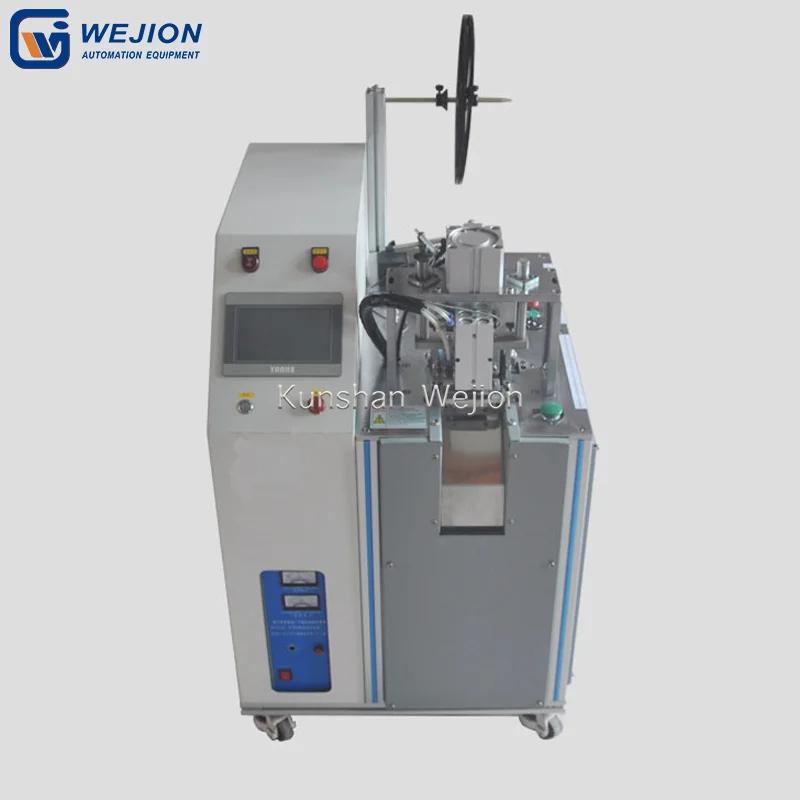

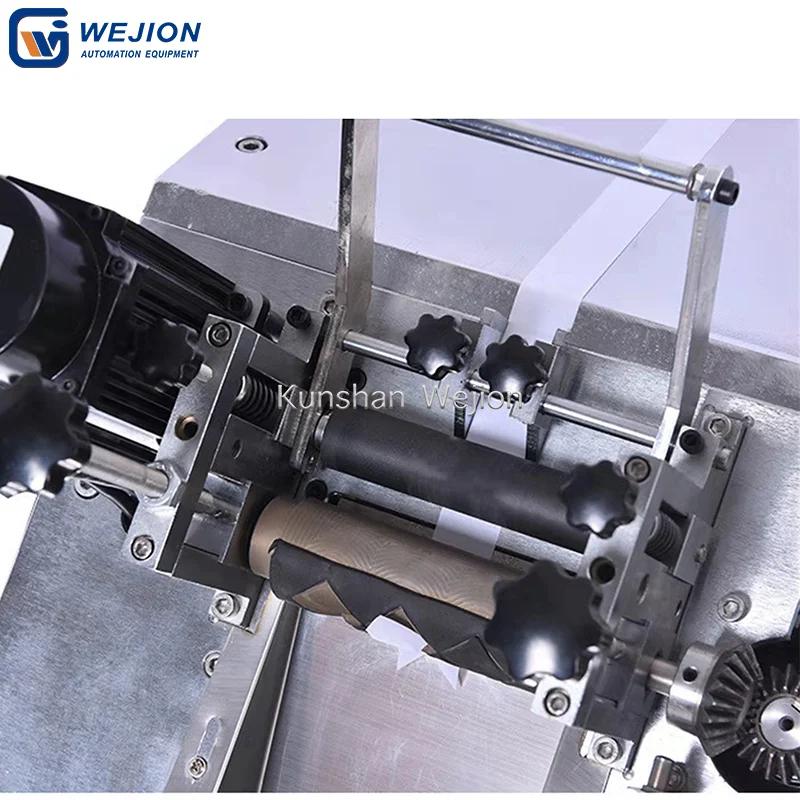

CW-BU120 Ultrasonic high speed cutting machine for garment woven brand label
CW-BU120 Ultrasonic high speed cutting machine for garment woven brand label
CW-BU120 Ultrasonic high speed cutting machine for garment woven brand label
CW-BU120 Ultrasonic high speed cutting machine for garment woven brand label
CW-BU120 Ultrasonic high speed cutting machine for garment woven brand label
CW-BU120 Ultrasonic high speed cutting machine for garment woven brand label
Product Introduction:

Description

CW-BU120 Features:
1. Ultrasonic cutting, complete and beautiful incision, neat and smooth cutting edge, no rough edge, no loose edge, excellent cutting effect
2. This machine adopts PLC control console to automatically feed, computer counting, high precision, fast speed, arbitrary length and Angle adjustment, automatic cutting, efficient and fast, beautiful and efficient cut, and can be cut at many times at the same time

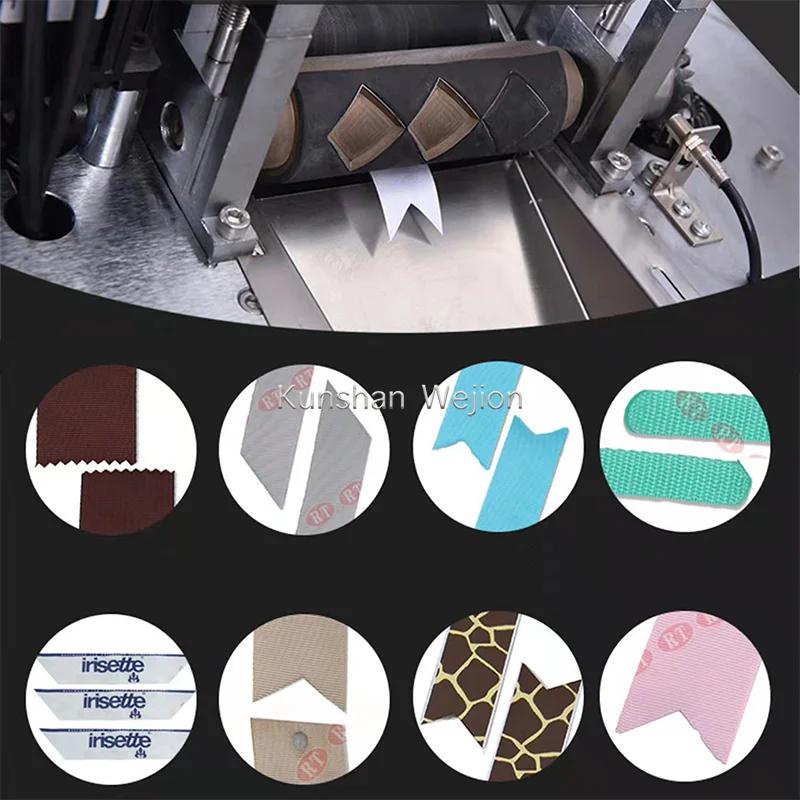

3.It is mainly used for gift belt, strip nylon belt, strip ribbon cutting straight knife, oblique knife, swallowtail and other shapes
4. The frequency and power of ultrasonic machine are determined by cutting the ribbon
5. Used in & have spent Program-controlled ultrasonic cutting machine in ribbon industry
6. The cut ribbon section does not change color, automatic sealing, no burr
7. The stepper motor drive is controlled by a special integrated circuit, and the length of strip cutting, the speed of strip cutting and the number of continuous strip cutting can be designed in advance.

ModelCW-BU120
Cutting length1-99999mm
Max cut width100mm
Cut speed100-120pcs/min
Power supply220/110V,50-60Hz
Power1500W
Size80*60*100cm
Weight80kgs
