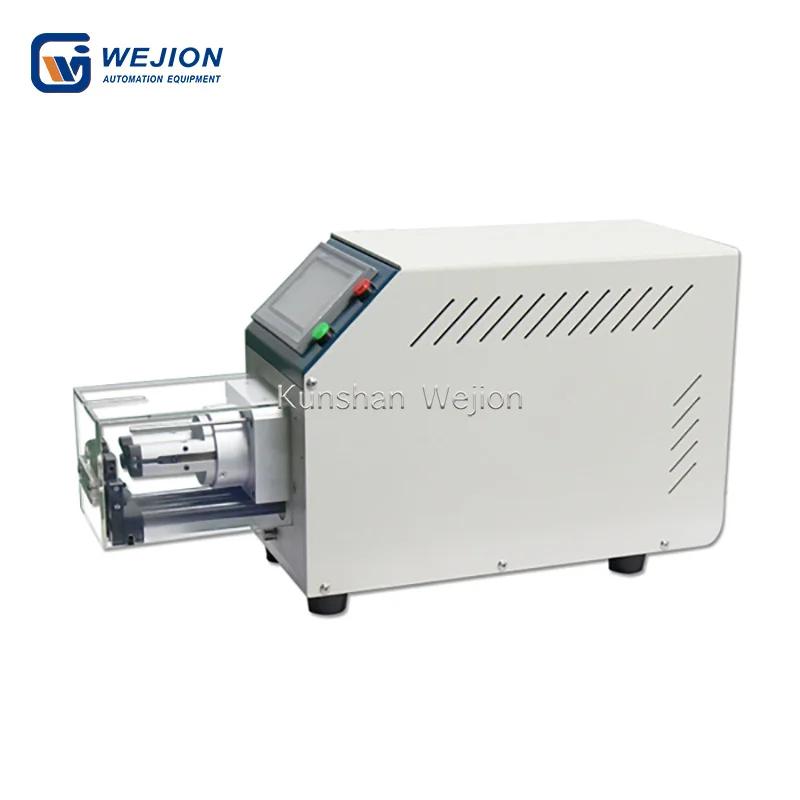

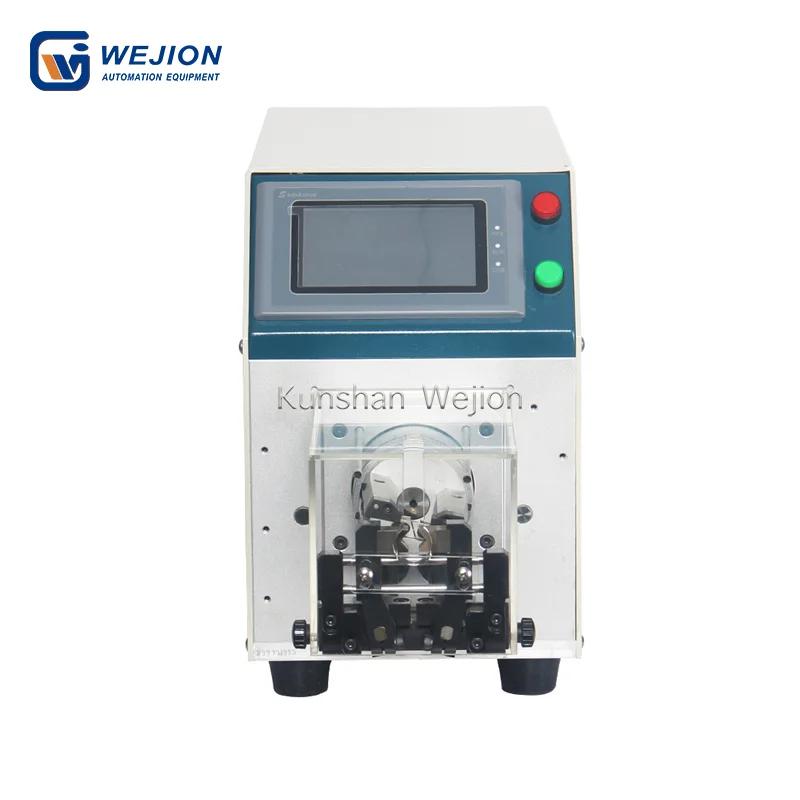

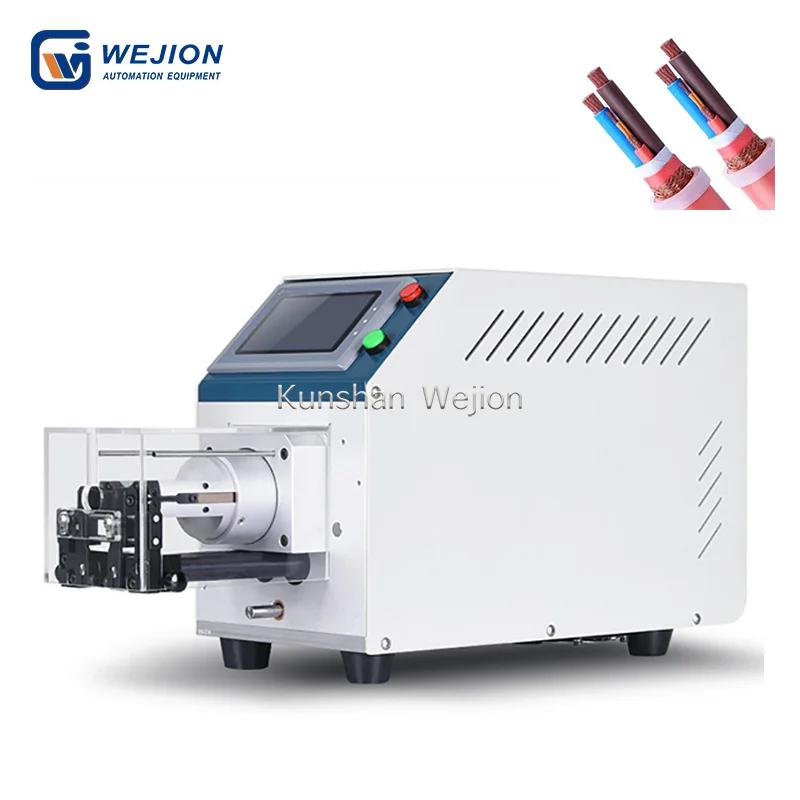

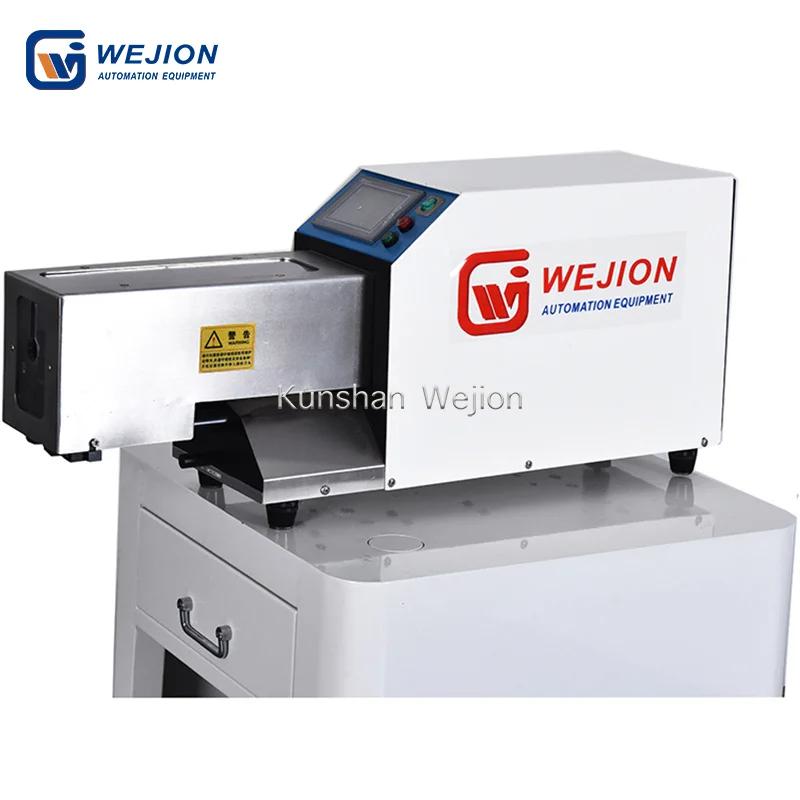

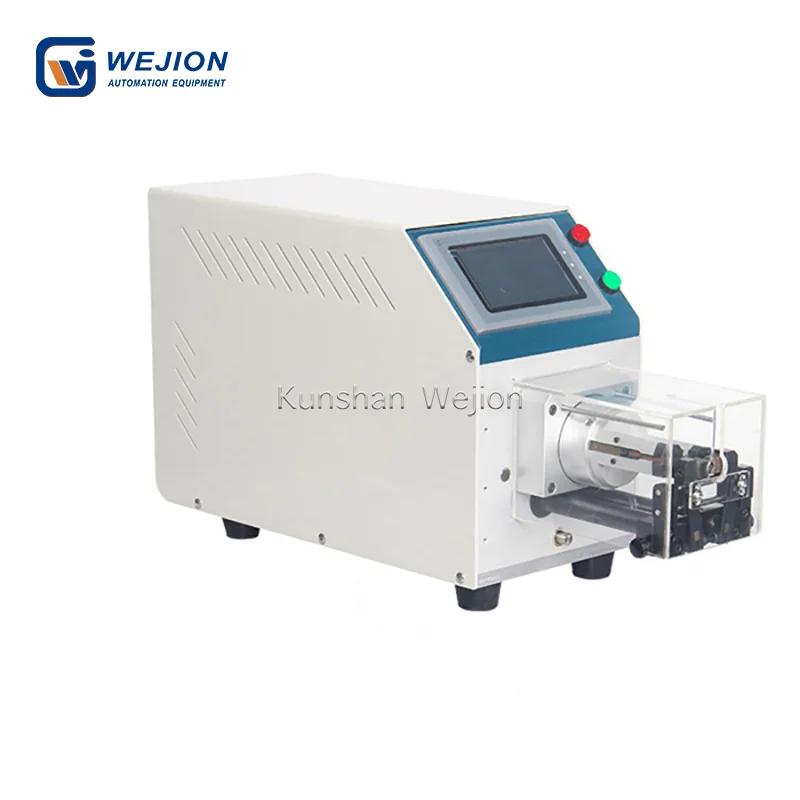

SC-6806A Multi-layer coaxial cable stripping machine
SC-6806A Multi-layer coaxial cable stripping machine
SC-6806A Multi-layer coaxial cable stripping machine
SC-6806A Multi-layer coaxial cable stripping machine
SC-6806A Multi-layer coaxial cable stripping machine
SC-6806A Multi-layer coaxial cable stripping machine
SC-6806A Multi-layer coaxial cable stripping machine
Product Introduction:

Description

SC-6806A Series Semi-automatic Multi-layer Coaxial Wire Stripping Machine is a high-precision wire stripping device designed for coaxial cables, triaxial cables and shielded cables, especially suitable for applications that require precise stripping and multi-layer stripping.

Function:
1. Semi-automatic operation:
* Need to be cut before stripping, suitable for processing coaxial cables, audio cables and other wires.
* Provides multiple start modes such as top rod start, foot switch start, manual button start, etc. to meet the needs of different working environments.
2. Processing capacity:
* Can process various types of coaxial cables and other wires.
* The maximum stripping length is 48mm, which can meet various stripping depth requirements.
* Supports up to 9 layers of stripping, can accurately process multi-layer shielded cables, and meet complex cable stripping needs.
3. Blade material:
* Equipped with Japanese Fuji tungsten steel blades, it ensures high precision and long service life.
* The blade design is optimized to ensure efficient and stable stripping even when processing thicker or multi-layer cables.
4. Storage and control:
*Color LCD touch screen control system makes operation easier, and users can easily set each function through the touch screen.
*Up to 50 sets of data can be saved, which is convenient for fast switching and efficient operation of various types of wires.
5. Precision transmission system:
*The transmission system driven by Japanese NSK ball bearings and screw rods ensures that the accuracy during the stripping process is kept within 0.08mm, ensuring the stability of precision stripping operations.
6. Coaxial positioning device:
*The use of a specific coaxial positioning device does not require re-centering when replacing the tool, which improves the convenience and work efficiency of the equipment.

Features:
1. Multi-layer stripping capability:
*Supports up to 9 layers of stripping, which is very suitable for complex cables that need to process multiple shielding layers or multiple insulation layers, and provides flexible wire processing capabilities.
2. Simple operation interface:
*Equipped with a color LCD touch screen, the interface is simple and easy to understand, and the operation is intuitive. A variety of setting functions allow users to easily manage stripping operations.
3. Flexible start-up mode:
* The start-up mode of ejector, foot switch and manual button can select the most suitable start-up mode according to specific production needs to improve work efficiency.
4. High-precision transmission system:
* The use of NSK ball bearing and screw drive system ensures high machine precision and excellent processing effect during long-term use.
5. Automation and efficiency:
* The built-in automation program supports fast setting and precise control, and stores 50 sets of data, which can greatly improve production efficiency and reduce error rate.

Application field
1. Audio cable and communication cable:
* SC-6806 is suitable for precision stripping of various audio cables and coaxial cables, especially in high-end audio, broadcasting and communication fields.
2. Electronics and power industry:
* It is suitable for fine processing of complex cables such as multi-layer coaxial cables and flat cables, and is widely used in electronic equipment, wireless communication, video transmission and power systems.
3. Automotive electronics:
* The equipment can accurately strip the outer skin and insulation layer of automotive cables for processing of vehicle wiring harnesses and power cables.
4. Medical equipment:
*Used for coaxial cables, signal lines, etc. in medical equipment, ensuring high-precision stripping to ensure electrical connection stability.
5. Home appliances and consumer electronics:
*In the production of home appliances, it handles the stripping of various signal lines and power lines, especially in the manufacture of electronic products that require multi-layer shielded cables.

ModelSC-6806ASC-6806DSC-8608
Cable Typecoaxial-cable,tri-axial cable,shield wire,rigid cablecoaxial-cable,tri-axial cable,shield wire,rigid cablecoaxial-cable,tri-axial cable,shield wire,rigid cable
Cutting depth0.01mm0.01mm0.01mm
Cable Diameter0.8-7mm1.5-9.5mm2-18mm
Dimensions60*18.5*28cm60*18.5*28cm72*23*35cm
Weight40kg40kg50kg
Stripping length48mm65mm90mm
Max. stripping stratums999
Blade2pieces Material:imported tungsten steel(Switzerland)4pieces Material:imported tungsten steel(Switzerland)4pieces Material:imported tungsten steel(Switzerland)
Centering slab4 pieces Material:imported tungsten steel4 pieces Material:imported tungsten steel4 pieces Material:imported tungsten steel
Productivity700-1200pcs / h700-1200pcs / h400-600pcs / h
