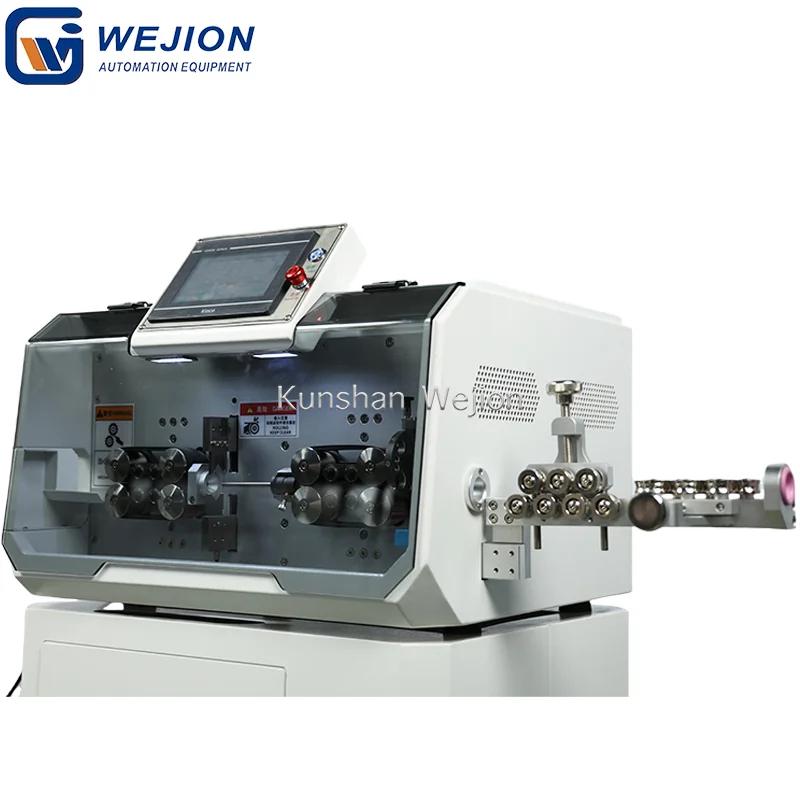

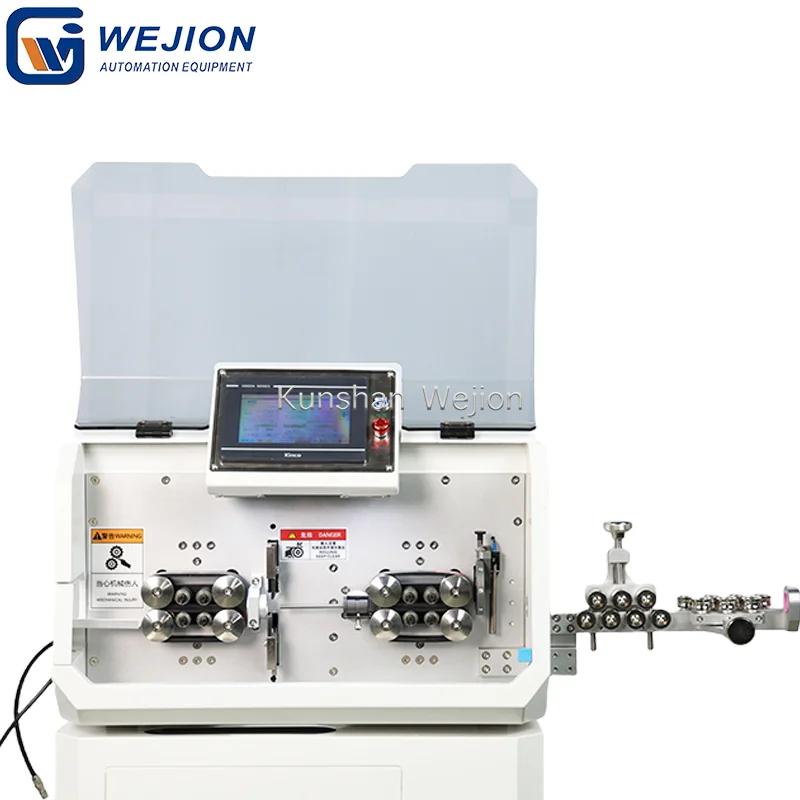

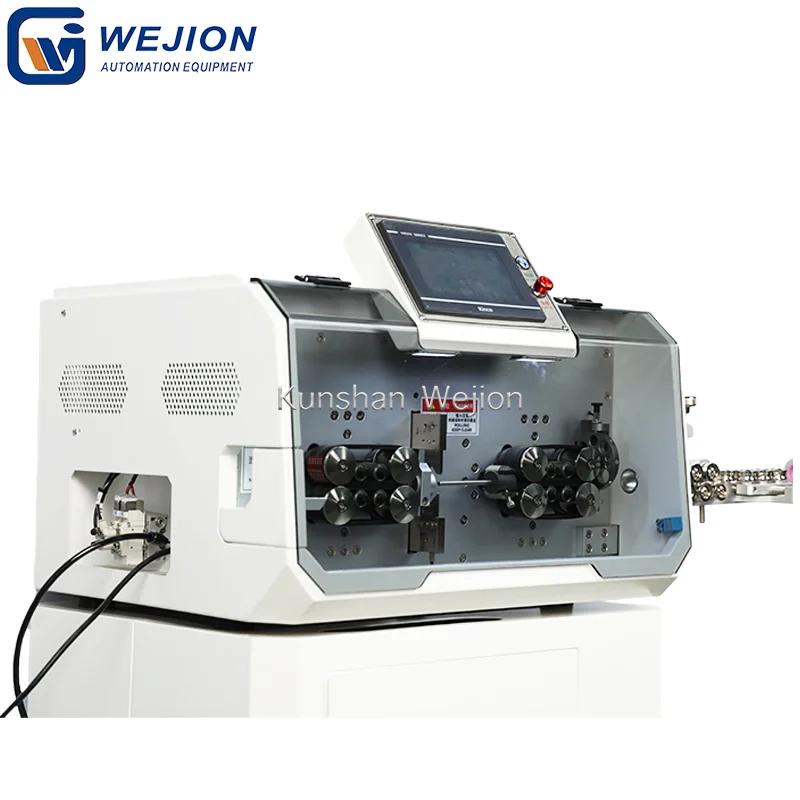

CS-3030Z Electric jacket cable stripping machine with middle stripping device(0-18mm)(0.75-30mm²)
CS-3030Z Electric jacket cable stripping machine with middle stripping device(0-18mm)(0.75-30mm²)
CS-3030Z Electric jacket cable stripping machine with middle stripping device(0-18mm)(0.75-30mm²)
CS-3030Z Electric jacket cable stripping machine with middle stripping device(0-18mm)(0.75-30mm²)
CS-3030Z Electric jacket cable stripping machine with middle stripping device(0-18mm)(0.75-30mm²)
CS-3030Z Electric jacket cable stripping machine with middle stripping device(0-18mm)(0.75-30mm²)
Product Introduction:

Description

Functions

  1. Suitable for various types of wires such as single-core wires, multi-core cables, shielded cables, etc., and can realize automatic fixed-length cutting and stripping.

  1. Equipped with middle stripping and both ends stripping functions. Multi-segment middle stripping supports arbitrary intervals, arbitrary lengths, and flexible segments.

  1. The wire feeding adopts belt mode, with stripping pressure function.

  1. The height of the pressure wheel can be adjusted digitally.

  1. There are various optional configurations, such as MES system, Internet of Things system, fixed-point coding function, etc., and it can also be connected to auxiliary equipment for alarm.

Features

  1. High-quality imported high-speed steel is used as the tool material to ensure processing quality.

  1. Advanced driving method, belt feeding can avoid indentation and scratches on the cable.

  1. The power supply and air source have strong adaptability, and different specifications can be selected according to needs.

  1. Equipped with a 7-inch color touch screen human-machine interface, the operation is intuitive and user-friendly, with good user experience.

  1. Adopting modular interface and design, it is convenient to connect accessories and peripheral equipment, and can be upgraded in the future.

  1. Various accessories are available, supporting system customization, and non-standard customization can be carried out for special cable processing.

    ModelCS-3030Z (with middle stripping)
    Display Mode7-inch human-machine interface
    Functions① Automatic fixed-length cutting and stripping for single-core wires, multi-core cables, shielded cables② Equipped with middle stripping function and both ends stripping function
    Wire TypesSingle-core wires, multi-core cables, shielded cables, electric wires, PVC, etc.
    Processing Range0.75 — 30mm²
    Cutting Length1mm – 999999.99mm
    Cutting ToleranceWithin 0.002*L (L = cutting length)
    Stripping LengthFront full stripping: 1 – 200mm; Front half stripping: 1 – 1500mmBack full stripping: 1 – 100mm; Back half stripping: 1 – 300mm
    Middle Stripping FunctionMulti-segment middle stripping with arbitrary intervals and arbitrary lengths, maximum 50 segmentsMulti-segment middle stripping with the same interval and same length, unlimited segments
    Maximum Allowed DiameterΦ18
    Tool MaterialHigh-quality imported high-speed steel
    Productivity (times/hour)3500 PCS/hour (depending on the length and size of the wire)
    Driving Mode16-wheel drive (feeding stepping motor, tool post servo motor); Servo feeding optional
    Wire Feeding ModeBelt feeding, no indentation or scratch on the cable (with stripping pressure function)
    Lifting Operation ModeDigital adjustment of pressure wheel height
    Power SupplyAC220V 50/60Hz; 110V 50/60Hz optional
    Air Source0.5Mpa clean air source
    Dimensions (LWH) (mm)680*605*520mm
    Net Weight90kg
    RemarksMaximum cutting capacity: 50 square millimeters
